HOLEX - Class 1 Parallel Gauge Block Set for Calibration & Inspection – 480450

HOLEX - Class 1 Parallel Gauge Block Set for Calibration and Inspection – 480450

The HOLEX Class 1 parallel gauge block sets (Item 480450) deliver ultra-precise calibration and inspection of gauge standards in compliance with DIN EN ISO 3650. Crafted from stabilized alloy steel hardened to HRC 64–66 and precision-ground, they include a traceable factory calibration certificate.

• Standard: DIN EN ISO 3650, tolerance class 1
• Hardness: stabilized alloy steel, HRC 64–66
• Traceability: factory calibration certificate with unique ID and actual deviation
• Packaging: robust wooden case included

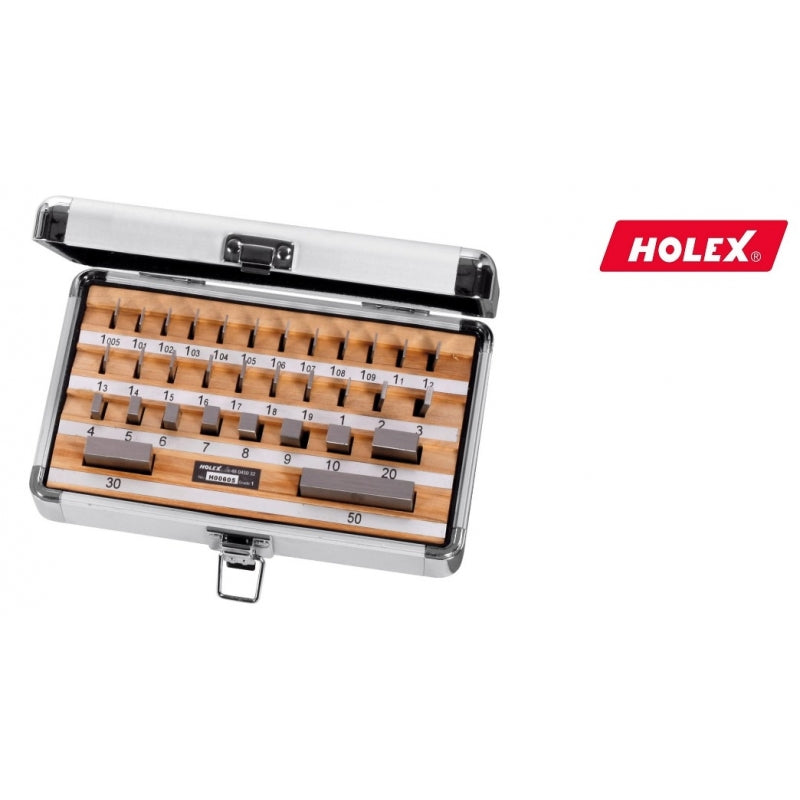

Kit Contents

• 32 blocks: 1.000 mm, 1.005 mm, 50 mm; 10 blocks 1.01–1.10 mm (step 0.01); 9 blocks 1.20–2.00 mm (0.1); 8 blocks 3–10 mm (1); 2 blocks 20–30 mm (10).
• 47 blocks: 1.005 mm; 21 blocks 1.00–1.20 mm (0.01); 8 blocks 1.3–2.0 mm (0.1); 8 blocks 3–10 mm (1); 9 blocks 20–100 mm (10).
• 87 blocks: 0.5 mm, 1.0 mm; 9 blocks 1.001–1.009 mm (0.001); 50 blocks 1.01–1.50 mm (0.01); 17 blocks 2–10 mm (0.5); 9 blocks 20–100 mm (10).
• 103 blocks: 0.5 mm, 1.0 mm, 50 mm, 75 mm, 100 mm; 50 blocks 1.01–1.50 mm (0.01); 47 blocks 2.0–25 mm (0.5).
