METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R
METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R

METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R

CHF 675.00
CHF 675.00
METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R The METRO MUX4/MUX8 connects up to 4 or 8 measuring tools (caliper, micrometer, indicator, scale…)...
SKU: 18004-R
Product Type: Measurement & control

Supplier : Heidi | Shop

Brand : Metro

En stock – expédition sous 2 à 3 jours
Ask An Expert
METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R

METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R

CHF 675.00
METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R
METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R

METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R

CHF 675.00

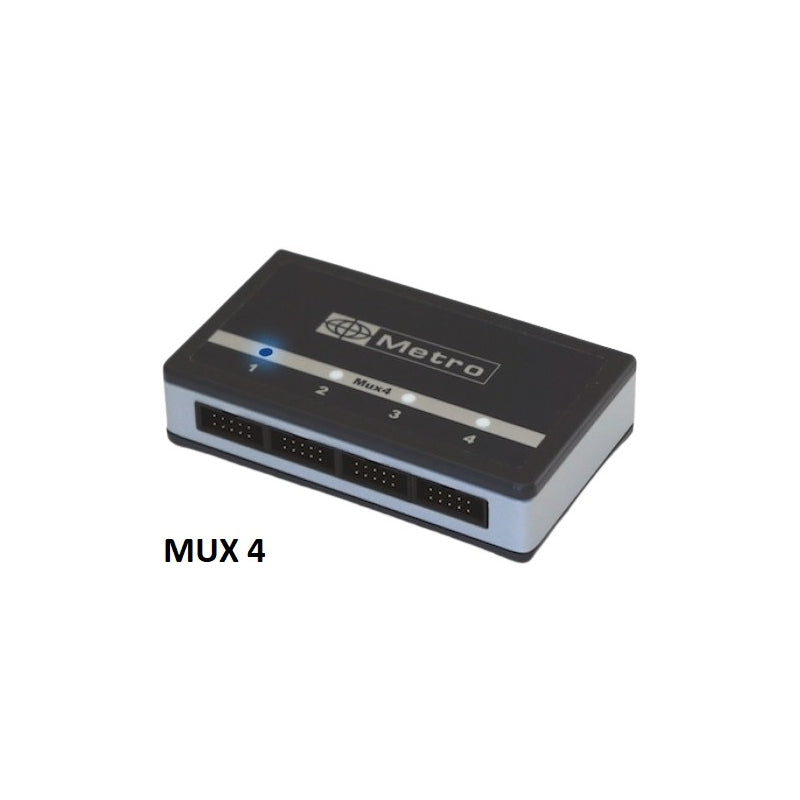

Model: MUX 4
Description

METRO - Universal multiplexer 4/8 inputs for instruments – 18004-R

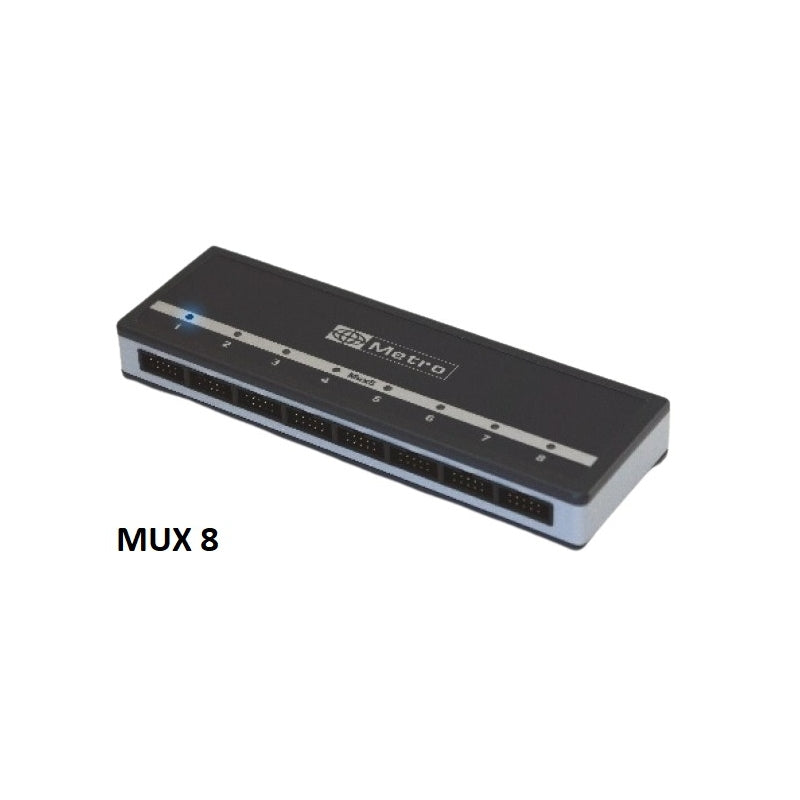

The METRO MUX4/MUX8 connects up to 4 or 8 measuring tools (caliper, micrometer, indicator, scale…) to a PC via USB (MUX4) or RS-232 (MUX8). Automatically detects Digimatic, Opto-RS232, RS232 and analog interfaces.

Key features

  • 4 or 8 universal instrument inputs
  • USB port (MUX4) or RS-232 port (MUX8)
  • 1 external pedal input
  • Supports Digimatic (Mitutoyo, Mahr), Opto-RS232 (Sylvac, Tesa, Bowers), RS232, analog ±5 V/±10 V/0–5 V/0–10 V/4–20 mA/±20 mA/0–20 mA
  • Automatic instrument recognition
  • Trigger via software, foot pedal or instrument button
  • Winmux software for direct Excel® or OpenOffice entry

Specifications

Storage Temp.Operating Temp.HumiditySize (L×W×H)WeightPower
-40 °C to +70 °C +5 °C to +40 °C ≤ 80 % RH 57×65×35 mm 150 g 235 V AC, 2 VA
Technical documentation

No documentation
