Micrometer: 342-261-30 - 30° taper - Capacity 0...25 mm
Description

MITUTOYO – 30° POINTS – DIGITAL MICROMETER – 342-261-30

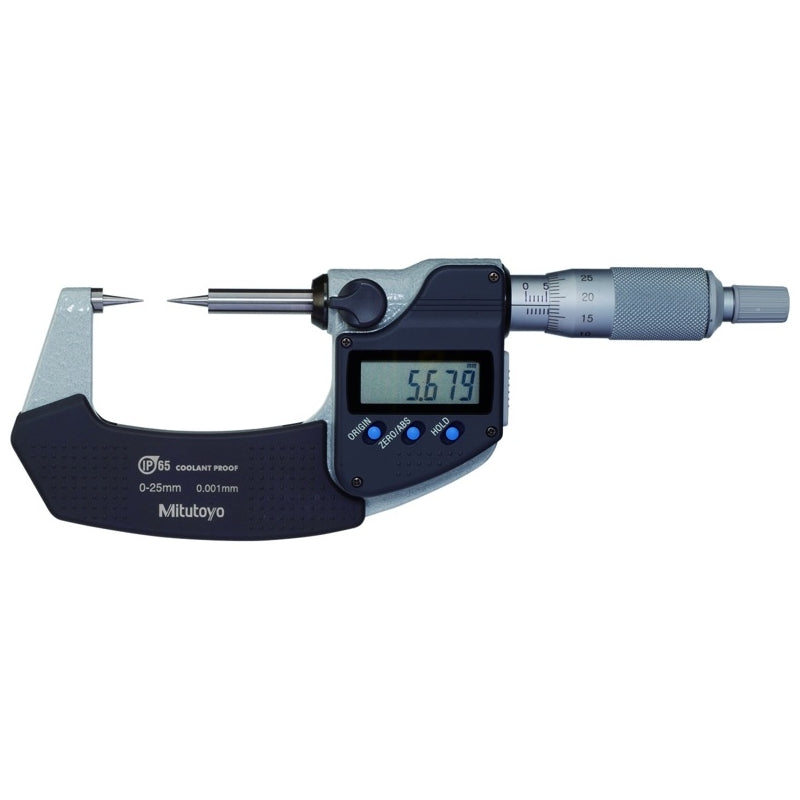

Mitutoyo – Digital micrometer with 30° points.
IP65, DIGIMATIC with ORIGIN and ZERO/ABS preset functions.
Spindle and anvil tapered at 30° with measuring point radius 0.3 mm.
Matte chrome thimble and sleeve. Measuring spindle Ø 6.35 mm, hardened and ground measuring surfaces.
With DIGIMATIC data output. Supplied in case with standards from 25 mm upwards.

Technical features

  • Resolution: 0.001 mm
  • Accuracy: 2 µm
  • Measuring spindle: Ø 6.35 mm
  • Point angle: 30°
  • Spindle pitch: 0.5 mm
  • Protection: IP65
  • Digit height: 7.5 mm
  • Data output: Yes

Available versions

Ref. Range Resolution Accuracy Point angle Price (CHF)
342-261-30 0–25 mm 0.001 mm 2 µm 30° 823.00
342-262-30 25–50 mm 0.001 mm 2 µm 30° 903.00
Documentation

No documentation available for this product.
