Micrometer: 314-251-30 - V-shaped anvil WITH cap groove 1-15 mm
Description

MITUTOYO – V-ANVIL – DIGITAL MICROMETER – 314-251-30

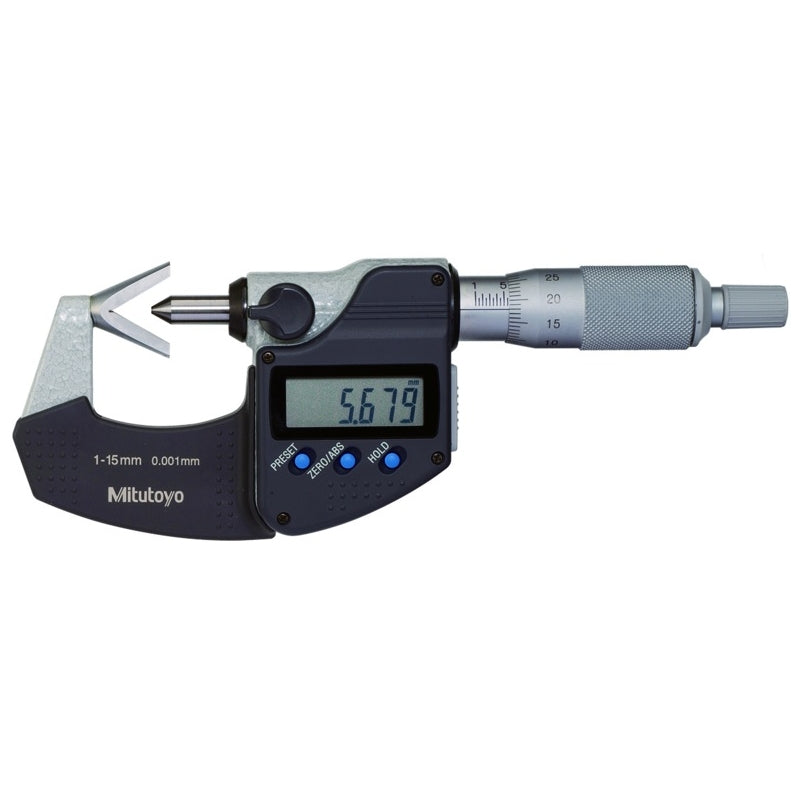

Mitutoyo – V-anvil micrometer.
DIGIMATIC with PRESET and ZERO/ABS functions.
60° prism anvil for measuring 3-flute tools.
Matte chrome thimble and sleeve. Measuring spindle Ø 6.35 mm, hardened, ground and finely lapped measuring surfaces.
With DIGIMATIC data output. Supplied in case with standards.

Technical features

  • Resolution: 0.001 mm
  • Accuracy: 4 µm
  • Measuring spindle: Ø 6.35 mm
  • Measuring base: 60°
  • Spindle pitch: 0.75 mm
  • Digit height: 7.5 mm
  • Data output: Yes

Available versions

Ref. Range Resolution Accuracy Base Grooves Price (CHF)
314-251-30 1–15 mm 0.001 mm 4 µm 60° Yes 1'080.00
314-252-30 10–25 mm 0.001 mm 4 µm 60° Yes 1'128.00
314-261-30 1–15 mm 0.001 mm 4 µm 60° No 1'080.00
314-262-30 10–25 mm 0.001 mm 4 µm 60° No 1'128.00

Versions with or without grooves, selectable in the dropdown menu.
