PLANOLITH - Universal precision table DIN 876/1 with Noga 3D arm – 442525

PLANOLITH - Universal precision table DIN 876/1 with Noga 3D arm – 442525

CHF 581.00
CHF 581.00
SKU: 442525

Supplier : Heidi | Shop

Brand : Planolith

In stock – ships in 2–3 business days
Ask An Expert
PLANOLITH - Universal precision table DIN 876/1 with Noga 3D arm – 442525

PLANOLITH - Universal precision table DIN 876/1 with Noga 3D arm – 442525

CHF 581.00
PLANOLITH - Universal precision table DIN 876/1 with Noga 3D arm – 442525

PLANOLITH - Universal precision table DIN 876/1 with Noga 3D arm – 442525

CHF 581.00
Dimensions: 400 x 250 mm
Description

PLANOLITH - Universal precision table DIN 876/1 with Noga 3D arm – 442525

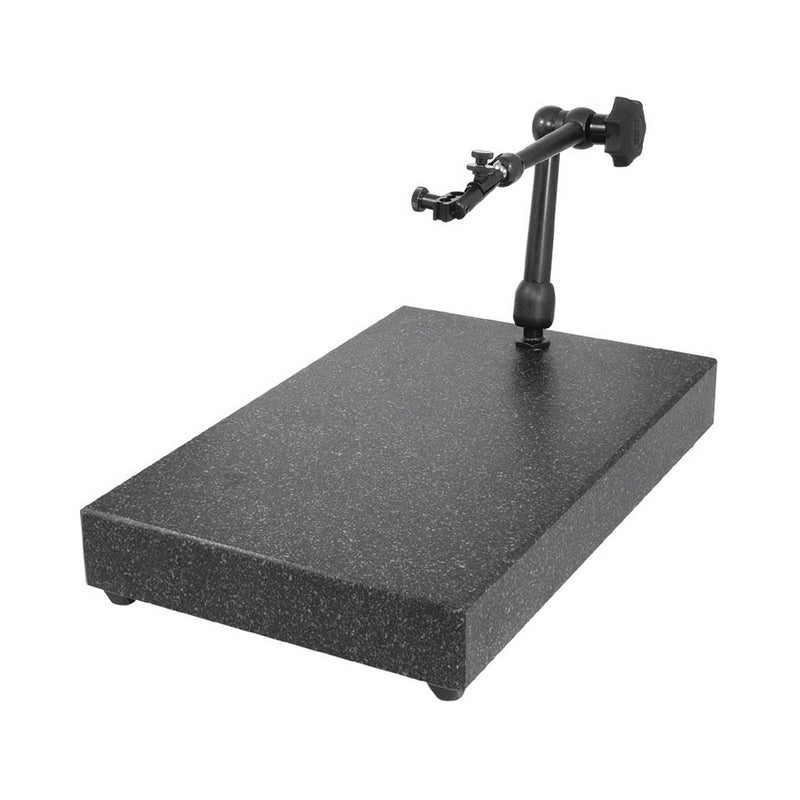

Large PLANOLITH universal precision table, diamond-lapped per DIN 876/1. Extremely rigid granite structure with robust Noga 3D articulated arm featuring central mechanical lock and continuously adjustable clamping force. Quick positioning, universal gauge support with fine adjustment for rods Ø 8 mm, Ø 6 mm or 3/8″, prism guide. Includes factory calibration certificate.

Specifications

  • Table L×W: 400×250 mm or 400×400 mm
  • Arm reach: 290 mm (250 mm table) / 600 mm (400 mm table)
  • Arm length L1: 133 mm / 326 mm
  • Arm length L2: 133 mm / 242 mm
  • Thread connection: M8 / M10 × 1.25
  • Max. measuring height: 400 mm
  • Column Ø: 35 mm
  • Base L×W: 400×300 mm
  • Weight: 17.5 kg / 28 kg

Models

Table L×W (mm) Arm reach (mm) L1 (mm) L2 (mm) Thread Weight (kg)
400×250 290 133 133 M8 17.5
400×400 600 326 242 M10×1.25 28

Select size and configuration from the dropdown menu.

Documentation

No documentation available for this product.
