AZUREA steel pin gauges without handle L 32 mm progression 0.01

AZUREA steel pin gauges without handle L 32 mm progression 0.01

CHF 70.50
CHF 0.00
CHF 70.50
Save CHF -70.50
excl. VAT
SKU: Az-pa32-001

Supplier : Azurea

Brand : Azurea

In stock – ships in 2–3 business days

Reply within 48 business hours

Product information

Description

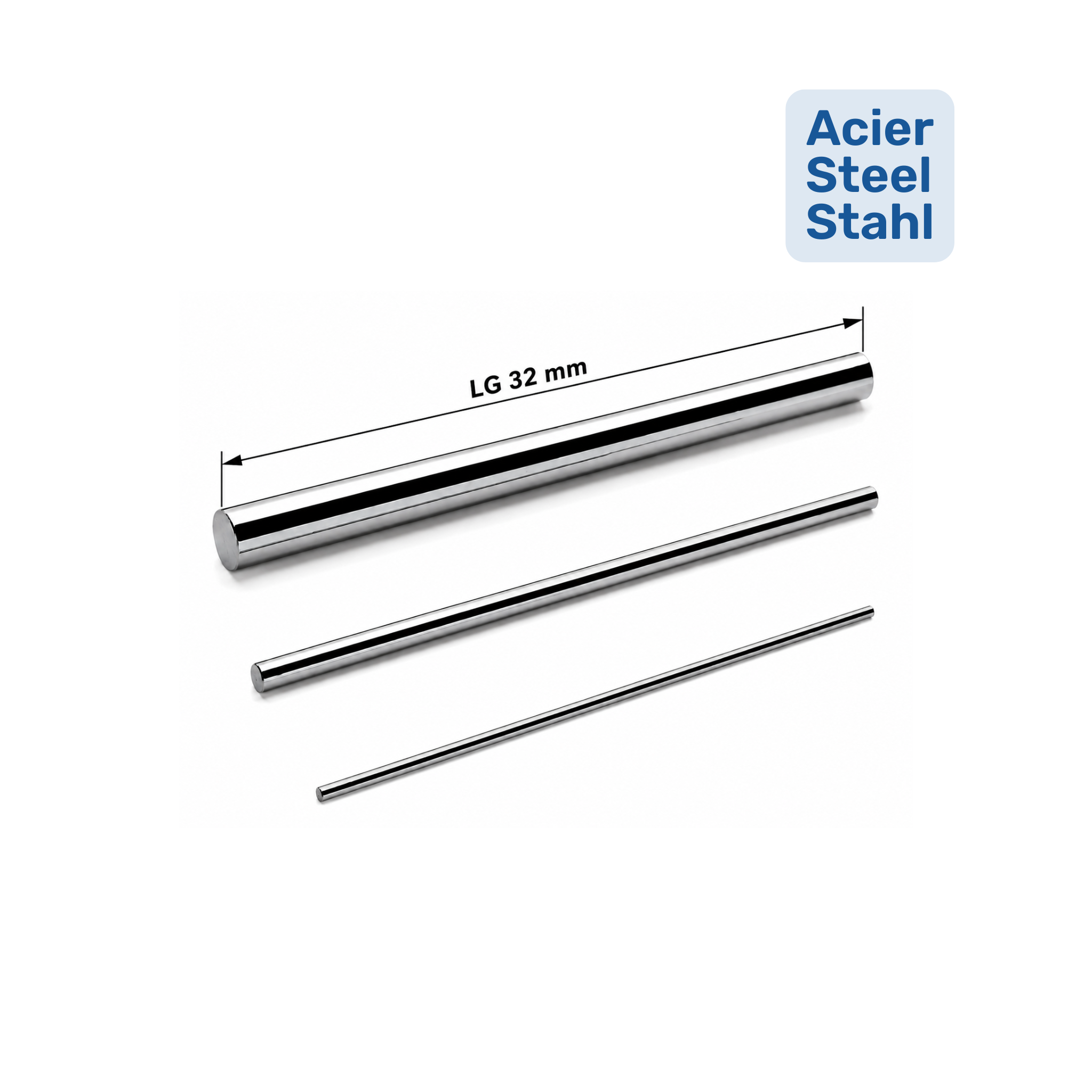

AZUREA pin gauges without handle Ø 0.05 to Ø 6.00 mm – Length 32 mm

Progression of 0.01 mm – Steel

The AZUREA pin gauges are designed for precise inspection of diameters, from micro-diameters to larger sizes. Made from steel, they ensure excellent dimensional stability and good wear resistance. The clear marking of the nominal size allows quick identification in both workshop and laboratory environments. These gauges are supplied without handle.

Key features

  • Fine progression of 0.01 mm for precise and incremental inspection
  • Nominal size marking
  • Manufactured in steel for good durability in use
  • Handle-free version suitable for holders or specific fixtures
  • Length 32 mm for improved handling and stability during inspection

Accuracy

Diameter range Tolerance
Ø 0.05 to Ø 0.149 mm ±0.0004 mm
Ø 0.150 to Ø 1.000 mm ±0.0004 mm
Ø 1.001 to Ø 6.00 mm ±0.001 mm

Additional information

Other dimensions, tolerances or versions can be offered on request, depending on your specific precision inspection requirements.

Application: ideal for the inspection of holes and various diameters, requiring precision, repeatability and reliability in industrial and microtechnical environments.
Specifications

Main specifications

Material
Hardened steel
Exact diameter to the hundredth
YES
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
