Gauge SPHERIDUR TUBin “CARY”

Gauge SPHERIDUR TUBin “CARY”

CHF 630.00
CHF 630.00
excl. VAT
SKU: SPTubin1X1S0

Supplier : Cary

Brand : Cary

Made to order – 4 to 6 weeks

Reply within 48 business hours

Product information

Description

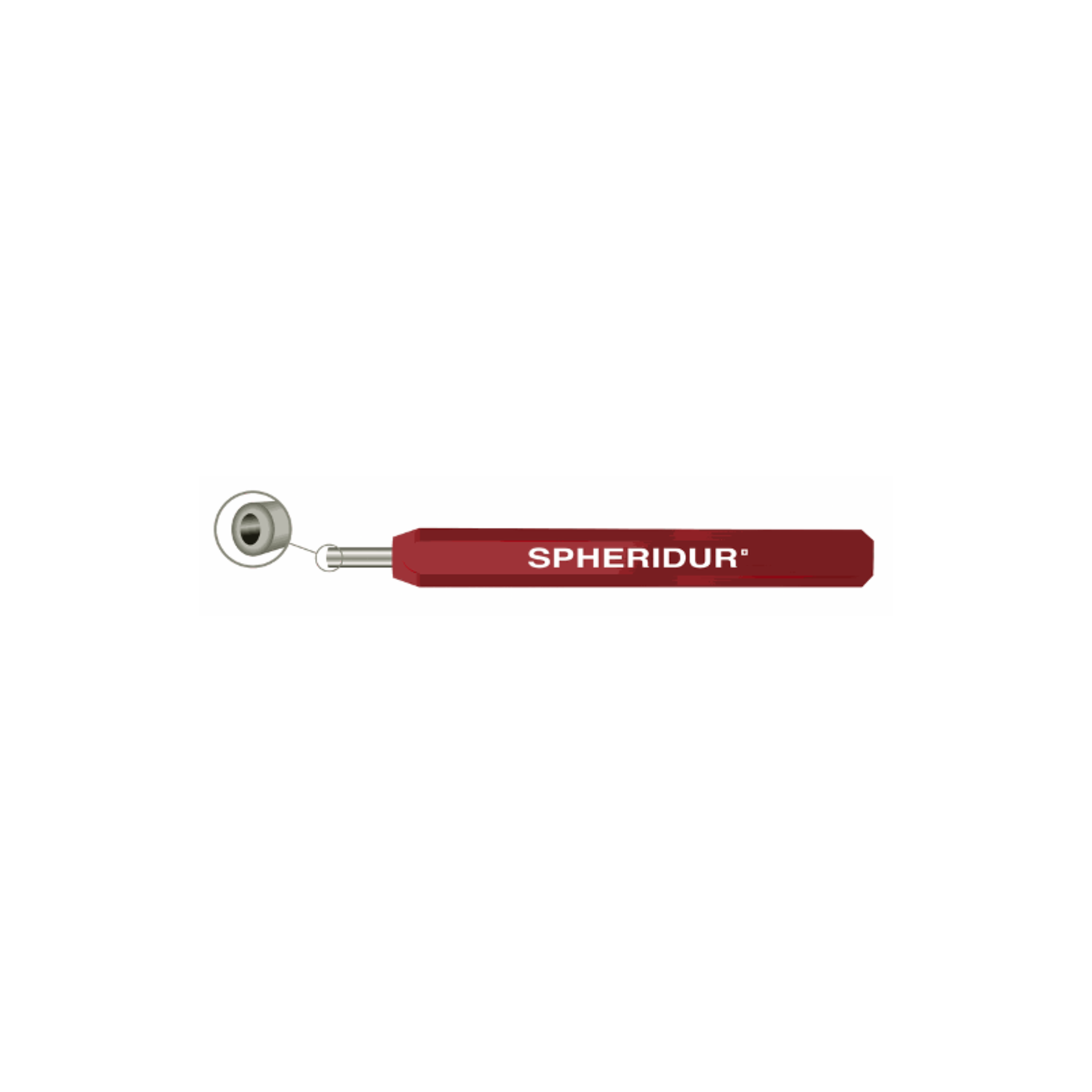

Spherical Gauge SPHERIDUR TUBin “CARY”

The CARY SPHERIDUR TUBin is engineered for precise gauging of challenging internal profiles such as shafts, drops, grooves, or other delicate cavities. It features a spherical tungsten carbide tip with optimized geometry for effortless insertion and reliable measurement.

  • Use: measuring specific internal diameters (e.g., shafts, drops, grooves, complex cavities)
  • Active Part: polished tungsten carbide spherical tip for smooth entry even at oblique angles
  • Precision: sensitivity up to 0.2 µm with sphericity < 100 nm on the contact area, ensuring fast, repeatable readings
  • Material: tungsten carbide (SPHERIDUR), hardened and polished for excellent wear resistance and dimensional stability
  • Durability: premium finish for extended service life in demanding production environments
  • Advantages: easy insertion into hard-to-reach profiles, optimal repeatability, minimal maintenance
  • Applications: quality control of holes and cavities with special shapes, comparator calibration, precision machining in medical, aerospace, fine mechanics, and specialized tooling

The CARY SPHERIDUR TUBin provides metrology workshops and labs with a dependable solution for exact internal profile measurements, combining precision, ease of use, and durability for challenging tasks.

Specifications

Main specifications

Material
Carburetor
Metrology and inspection operations
Dimensional measurement, 2D / 3D inspection, Mechanical comparison, Calibration
Laboratory and quality operations
Geometric verification
Exact diameter to the micron
YES
Documentation
Download documentation (PDF)
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
