Diameter range: 0.150-0.199
Description

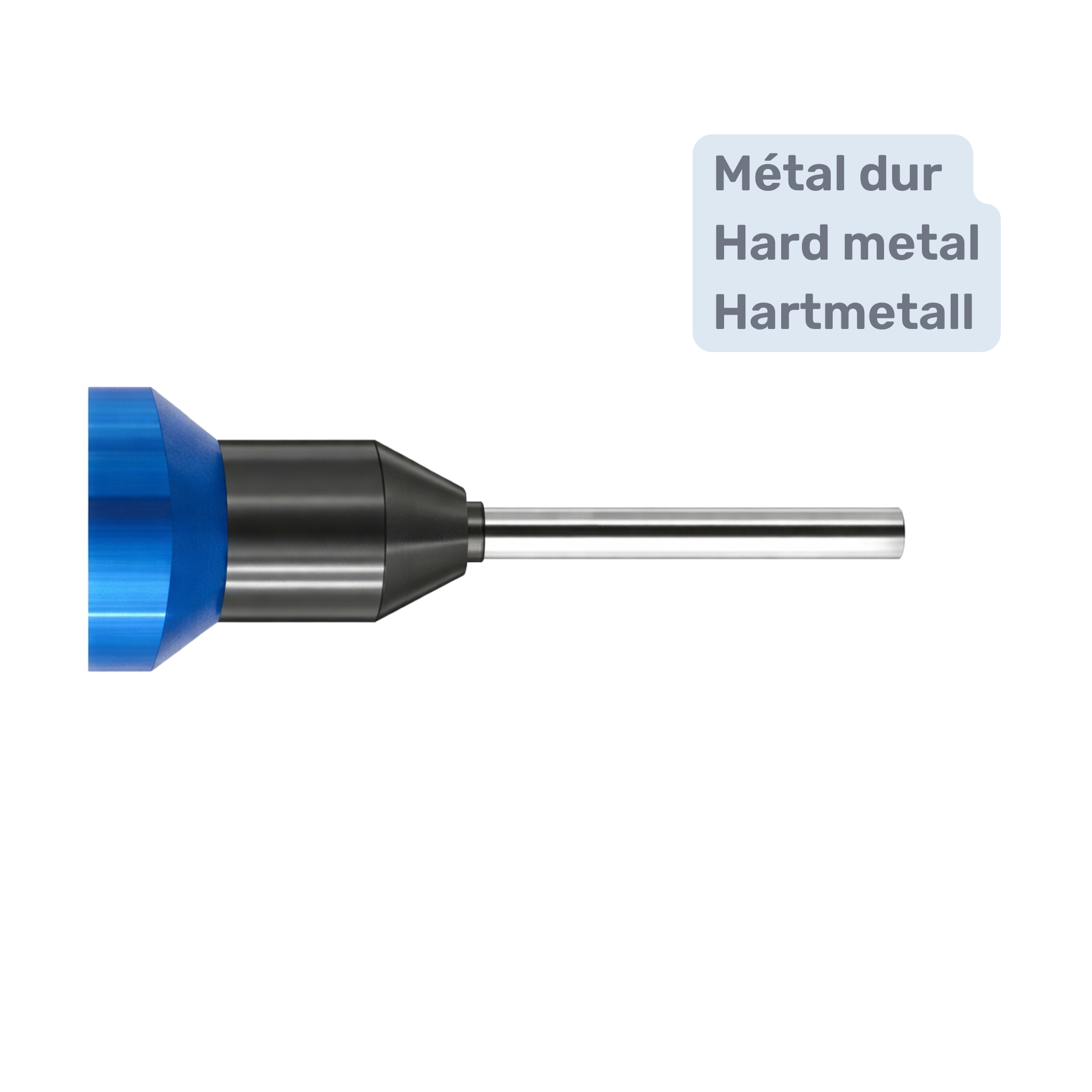

AZUREA hard metal buffer gauges without handle Ø 0.150 to Ø 0.999 mm

Progression of 0.001 mm – Hard metal

The AZUREA buffer gauges are specifically designed for the inspection of very small diameters, offering extreme precision and excellent dimensional stability. Made from hard metal, they ensure optimal wear resistance, even in demanding environments. They feature interchangeable tips and a clear marking of the nominal size for quick identification. These gauges are supplied without handle.

Key features

  • Diameter range from Ø 0.150 to Ø 0.999 mm
  • Ultra-fine progression of 0.001 mm for micron-level inspection
  • Interchangeable tips for greater flexibility
  • Nominal size marking
  • Manufactured in hard metal for maximum wear resistance
  • Handle-free version ideal for integration into holders or specific fixtures

Usable Length

Diameter Range Usable Length
Ø 0.150 to Ø 0.299 mm 2 mm
Ø 0.300 to Ø 0.399 mm 3 mm
Ø 0.400 to Ø 0.499 mm 3.5 mm
Ø 0.500 to Ø 0.699 mm 4.5 mm
Ø 0.700 to Ø 0.999 mm 5 mm

Accuracy

Diameter range Tolerance
Ø 0.150 to Ø 0.999 mm ±0.0004 mm

Finish

  • Sharp edge tip for precise inspection of micro-diameters

Additional information

Other progressions or versions can be offered on request, to meet the specific requirements of your micro-measurement applications.

Application: ideal for the inspection of micro-holes and very small diameters, requiring micron-level precision, excellent repeatability and high wear resistance.
Documentation

No documentation available for this product.
