Horizontal micrometer 0-25 mm SABI
Horizontal micrometer 0-25 mm SABI
Horizontal micrometer 0-25 mm SABI
Horizontal micrometer 0-25 mm SABI

Horizontal micrometer 0-25 mm SABI

CHF 494.00
CHF 0.00
CHF 494.00
Save CHF -494.00
excl. VAT
SKU: 12102.2100

Supplier : André Frei & Fils SA

Brand : Sabi

Made to order – 2 to 3 weeks

Reply within 48 business hours

Product information

Description

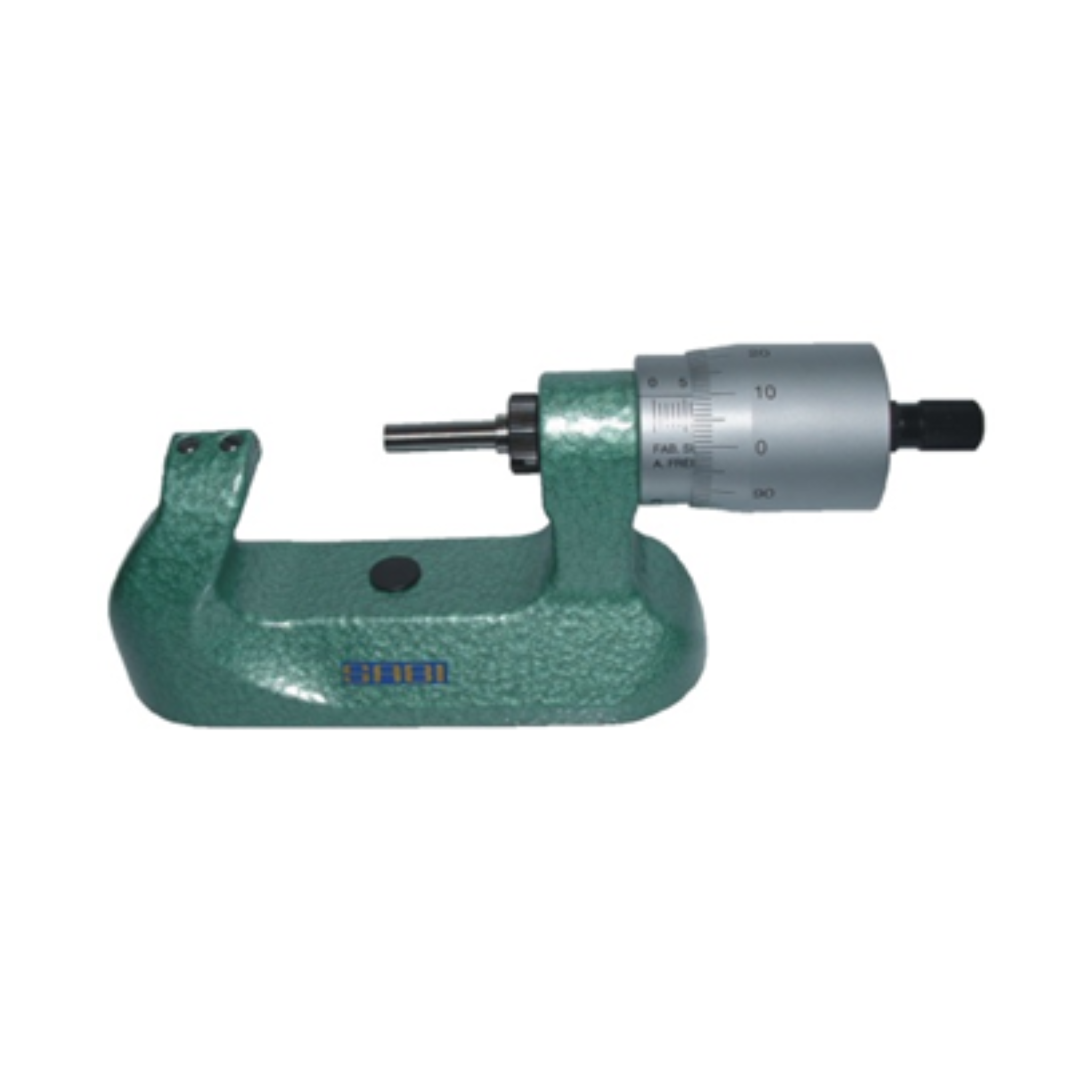

SABI - Horizontal Micrometer 0–25 mm

The SABI 0–25 mm horizontal micrometer is designed for high-precision measurements in the workshop or laboratory. Conforming to DIN 863-T1, it guarantees excellent repeatability. Available with or without a universal table, it adapts to your dimensional inspection needs.

Features

  • Measuring range: 0–25 mm
  • Accuracy: DIN 863-T1
  • Available reading: 0.01 mm or 0.001 mm
  • Dimensions: 160 × 40 × 65 mm
  • SABI interchangeable anvils: on request

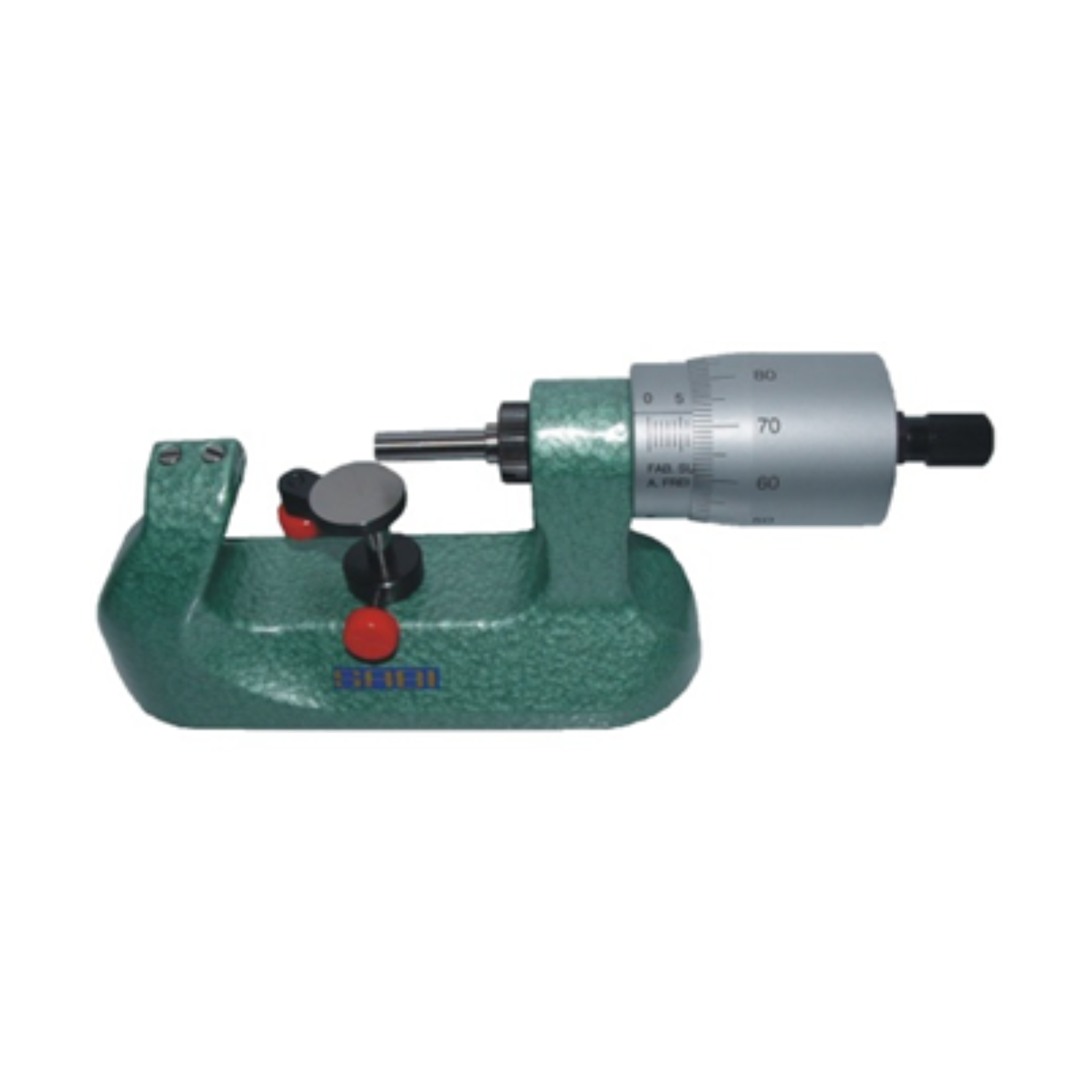

  • Configuration: with or without universal table

Available versions

Version Reading Item Ref.
Without universal table 0.01 mm 12102.2100
Without universal table 0.001 mm 12102.2200
With universal table 0.01 mm 12103.2100
With universal table 0.001 mm 12103.2200
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
