Horizontal Micrometer 0–25 mm SABI 2000
Horizontal Micrometer 0–25 mm SABI 2000
Horizontal Micrometer 0–25 mm SABI 2000
Horizontal Micrometer 0–25 mm SABI 2000

Horizontal Micrometer 0–25 mm SABI 2000

CHF 593.00
CHF 0.00
CHF 593.00
Save CHF -593.00
excl. VAT
SKU: 12104.2100

Supplier : André Frei & Fils SA

Brand : Sabi

Made to order – 2 to 3 weeks

Reply within 48 business hours

Product information

Description

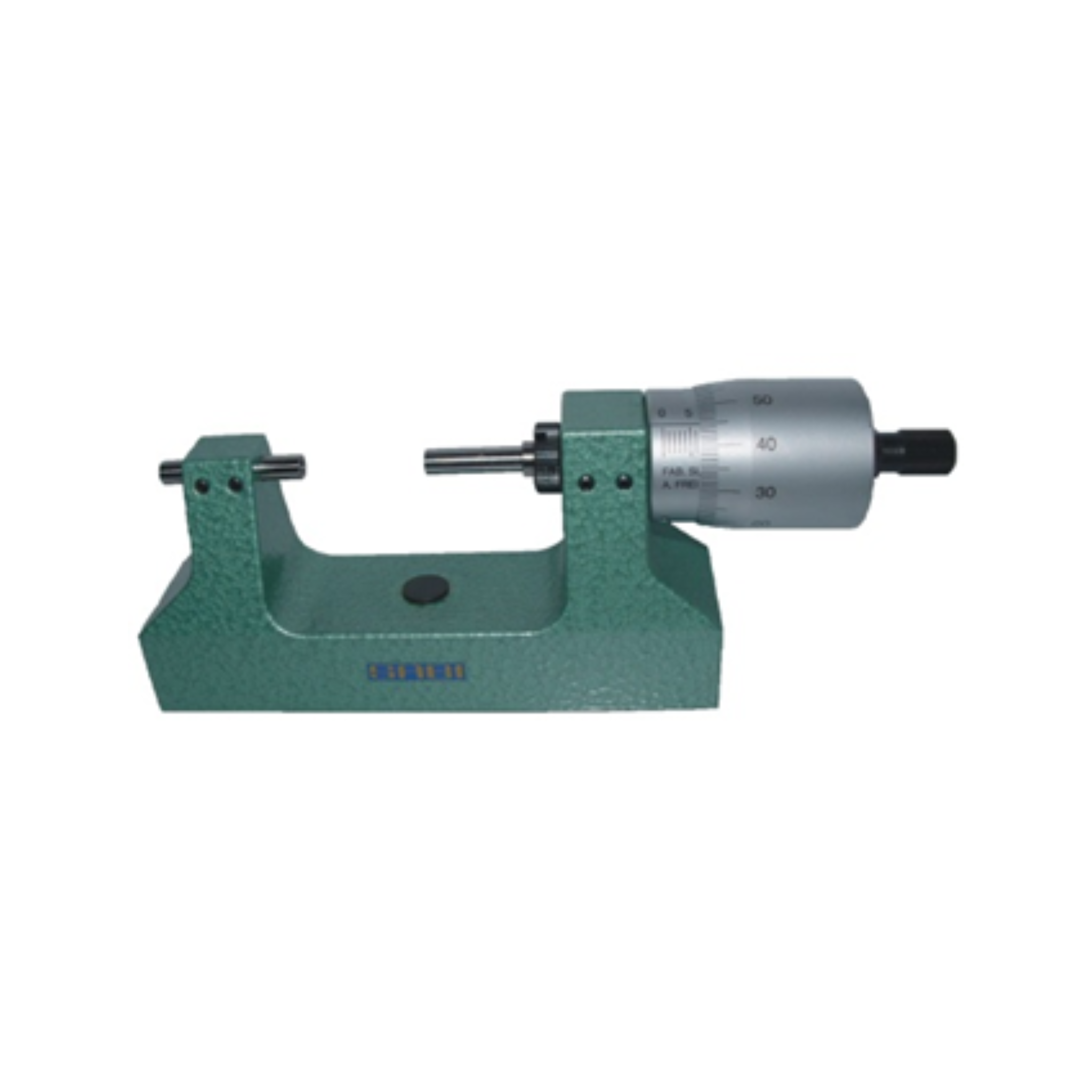

SABI – Horizontal Micrometer 0–25 mm Type SABI 2000

The SABI horizontal micrometer type SABI 2000 (0–25 mm is designed for high-precision measurement applications requiring robustness and reliability. It complies with DIN 863-1 and is equipped with interchangeable SABI measuring contacts (2 movable contacts included – series no. 22800.0100), ensuring high flexibility in use. Available with or without a universal table depending on your requirements.

Features

  • Measuring range : 0–25 mm
  • Type : SABI 2000
  • Accuracy : in accordance with DIN 863-1
  • Resolution : 0.01 mm or 0.001 mm
  • Dimensions : 160 × 40 × 65 mm
  • Interchangeable SABI measuring contacts : on request
  • Equipment : 2 movable contacts (series no. 22800.0100)
  • Configuration : with or without universal table

Available versions

Version Resolution Item No.
Without universal table 0.01 mm 12104.2100
Without universal table 0.001 mm 12104.2200

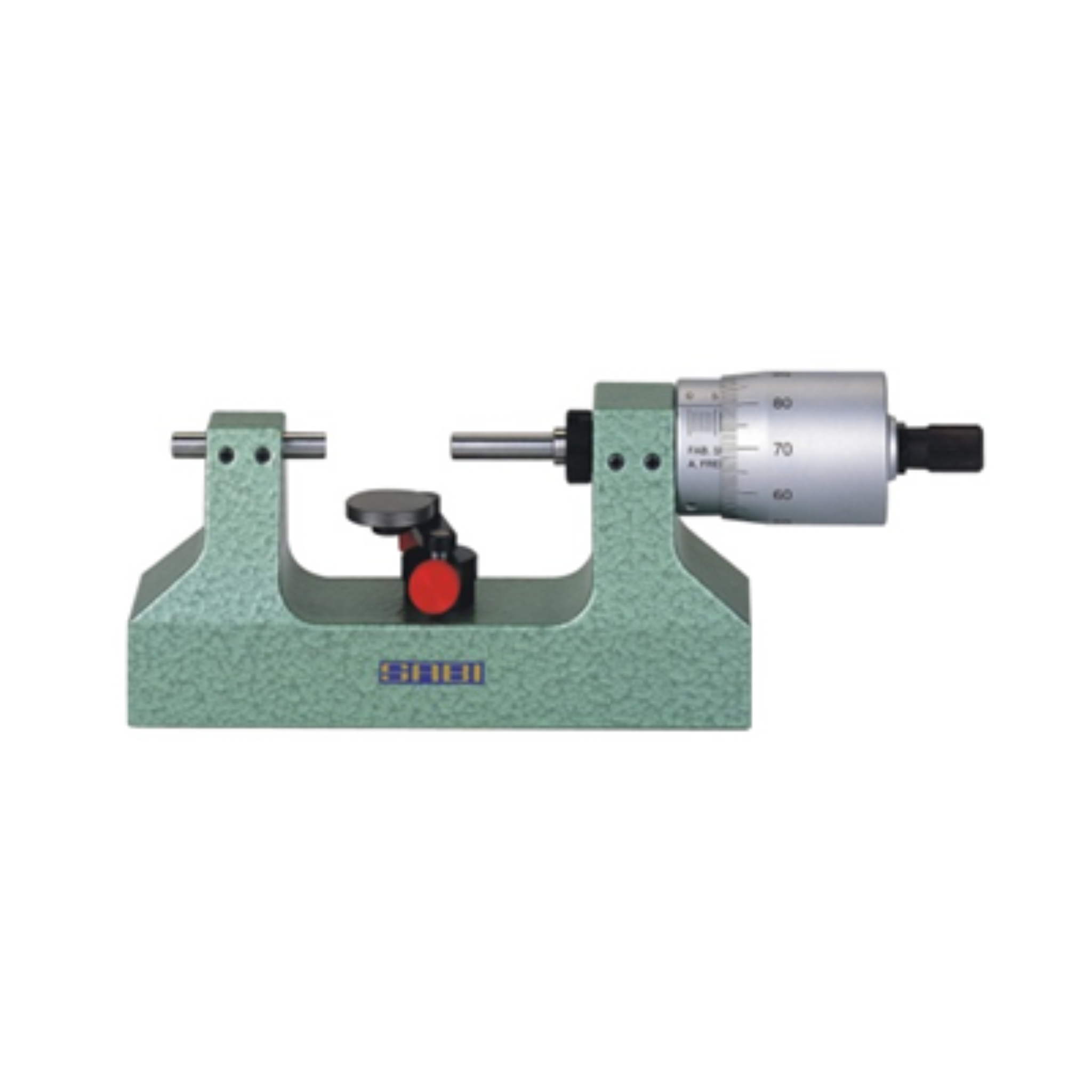

With universal table 0.01 mm 12105.2100
With universal table 0.001 mm 12105.2200
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
