Horizontal Micrometer 0–25 mm SABI Type HD 8
Horizontal Micrometer 0–25 mm SABI Type HD 8
Horizontal Micrometer 0–25 mm SABI Type HD 8
Horizontal Micrometer 0–25 mm SABI Type HD 8

Horizontal Micrometer 0–25 mm SABI Type HD 8

CHF 355.00
CHF 355.00
excl. VAT
SKU: 12108,0000-HD8

Supplier : André Frei & Fils SA

Brand : Sabi

On order – delivery within 10 to 15 days

Reply within 48 business hours

Product information

Description

SABI – Horizontal Micrometer 0–25 mm Type HD 8

The SABI horizontal micrometer type HD 8 is designed for high-precision measurements with an extended measuring range up to 25 mm and a travel of 25 mm. In the version with dial indicator, it is equipped with a Sylvac digital indicator, ensuring fast and reliable readings. Available with or without a universal table to meet your inspection requirements.

Features

  • Measuring range : 0–25 mm
  • Travel : 25 mm
  • Type : HD 8
  • Dial indicator (optional) : digital, Sylvac
  • Interchangeable SABI measuring contacts type HD 8 : on request
  • Dimensions : 220 × 60 × 70 mm
  • Configuration : with or without universal table, with or without dial indicator

Available versions

Version Item No.

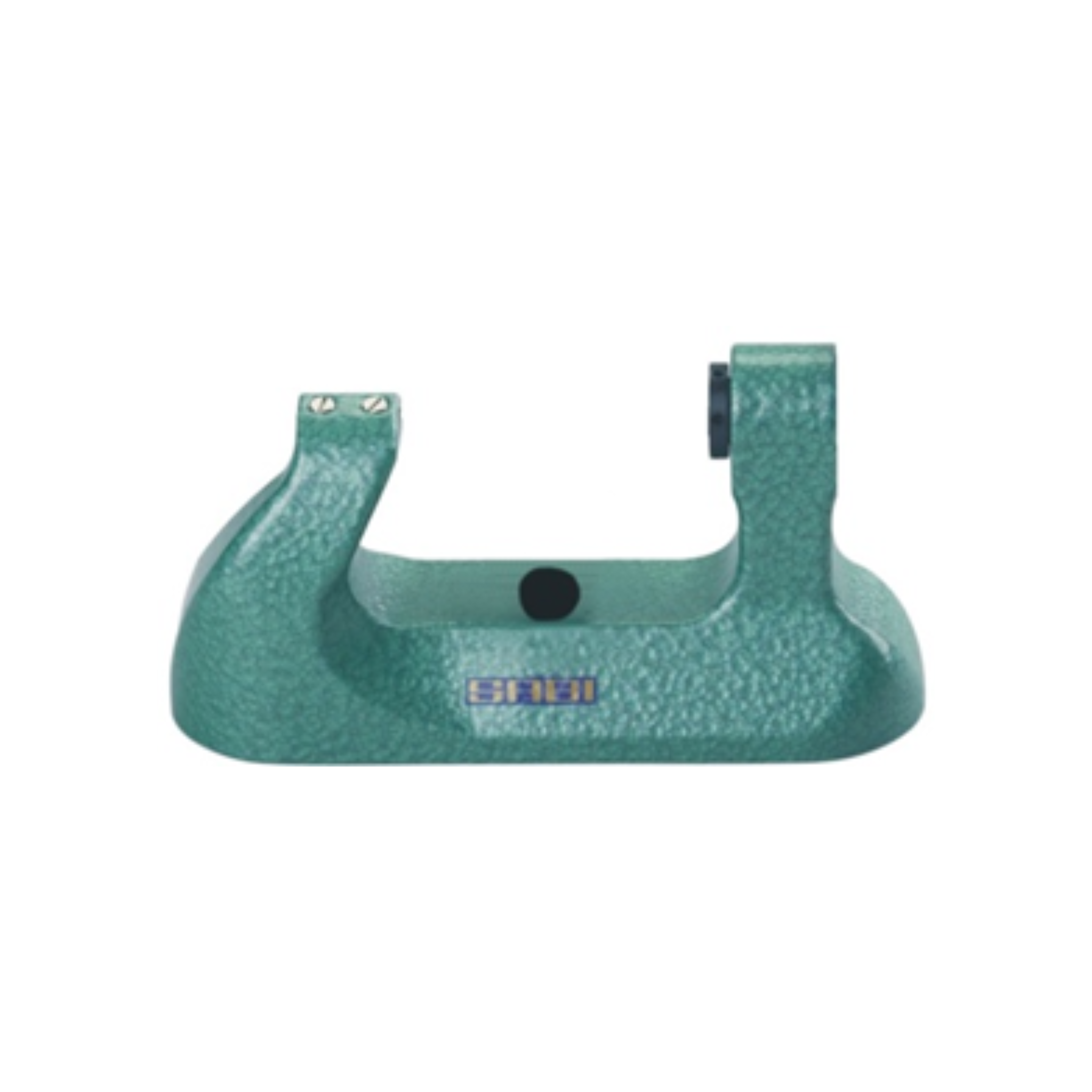

Without universal table & without dial indicator 12108.0000

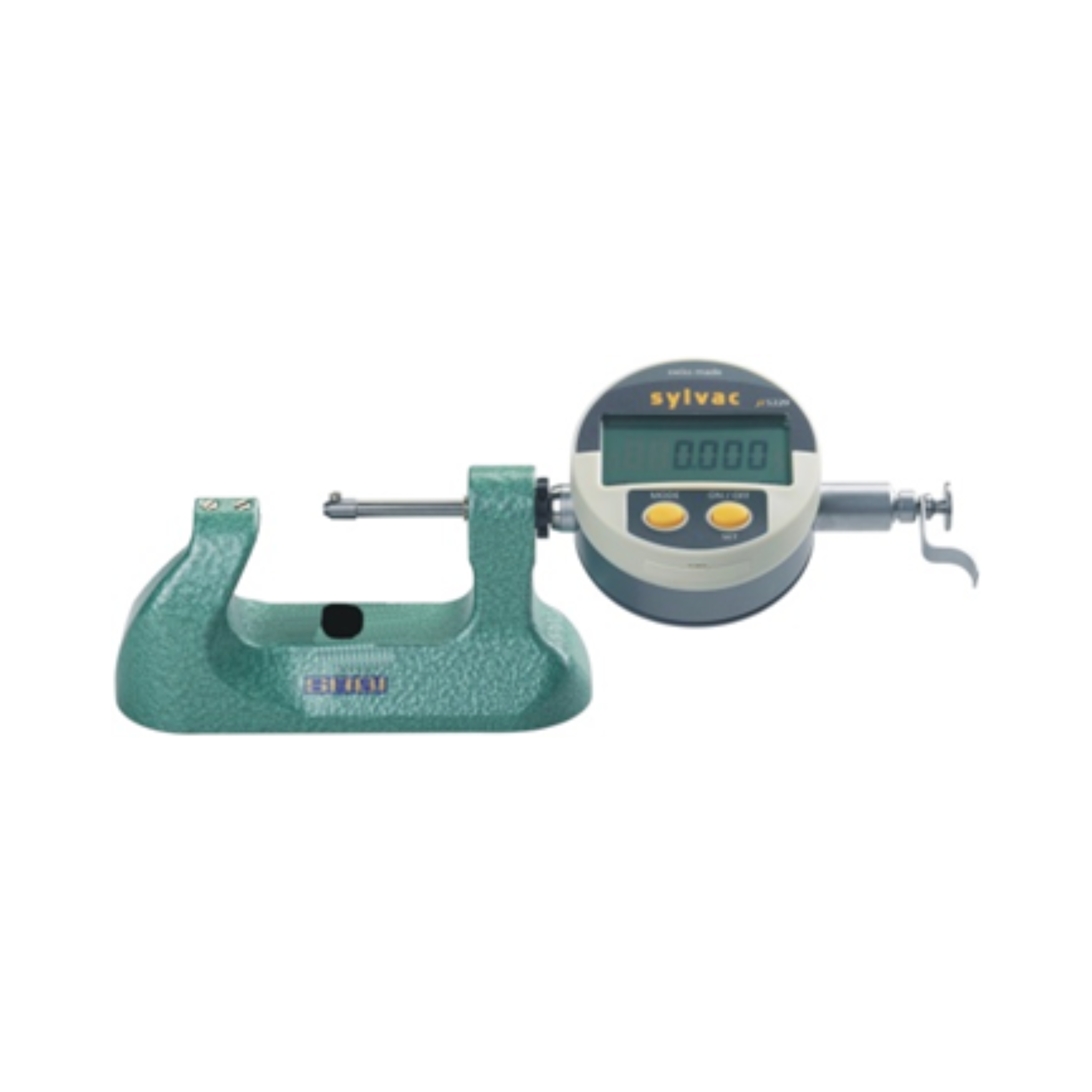

Without universal table & with Sylvac digital indicator 12108.7700

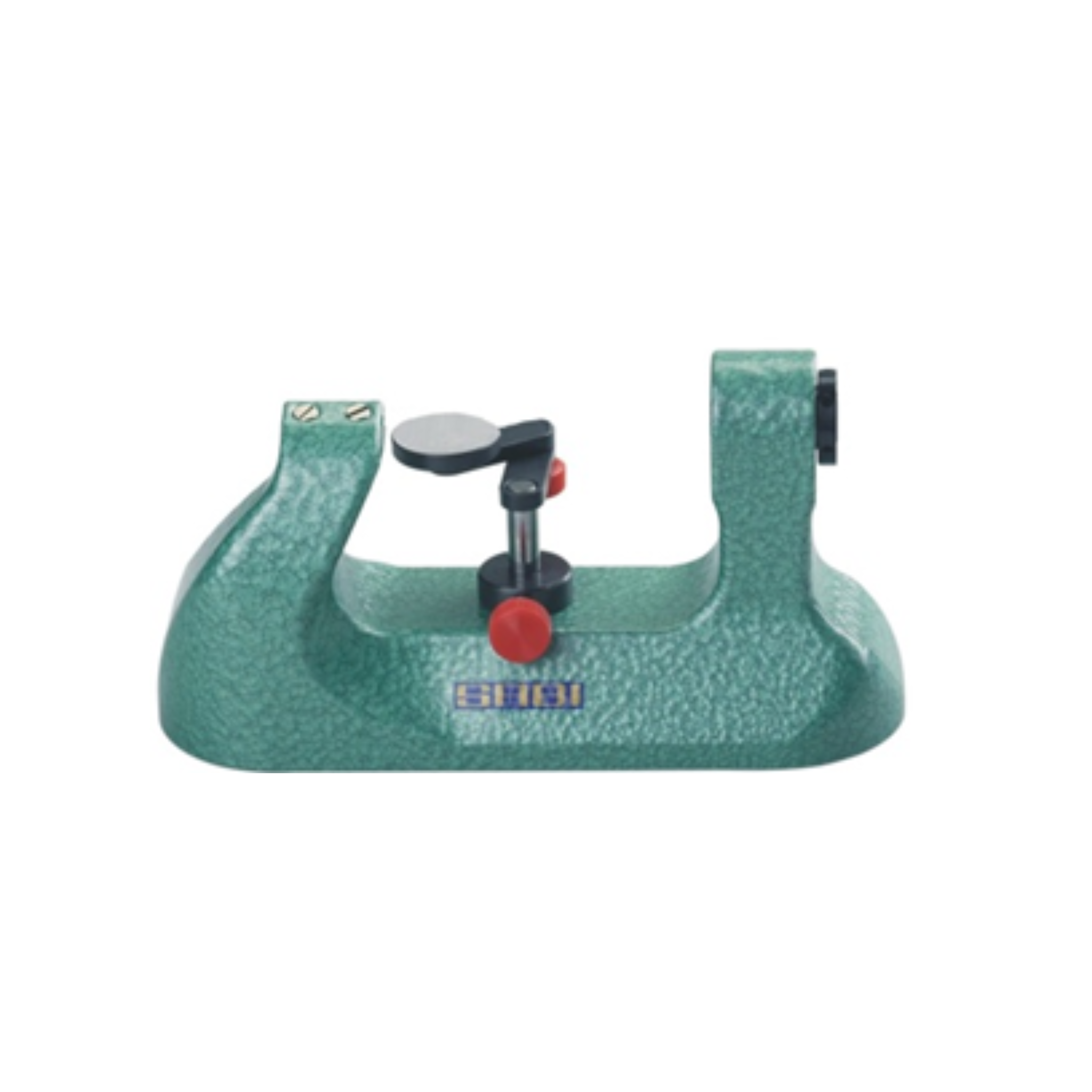

With universal table & without dial indicator 12109.0000

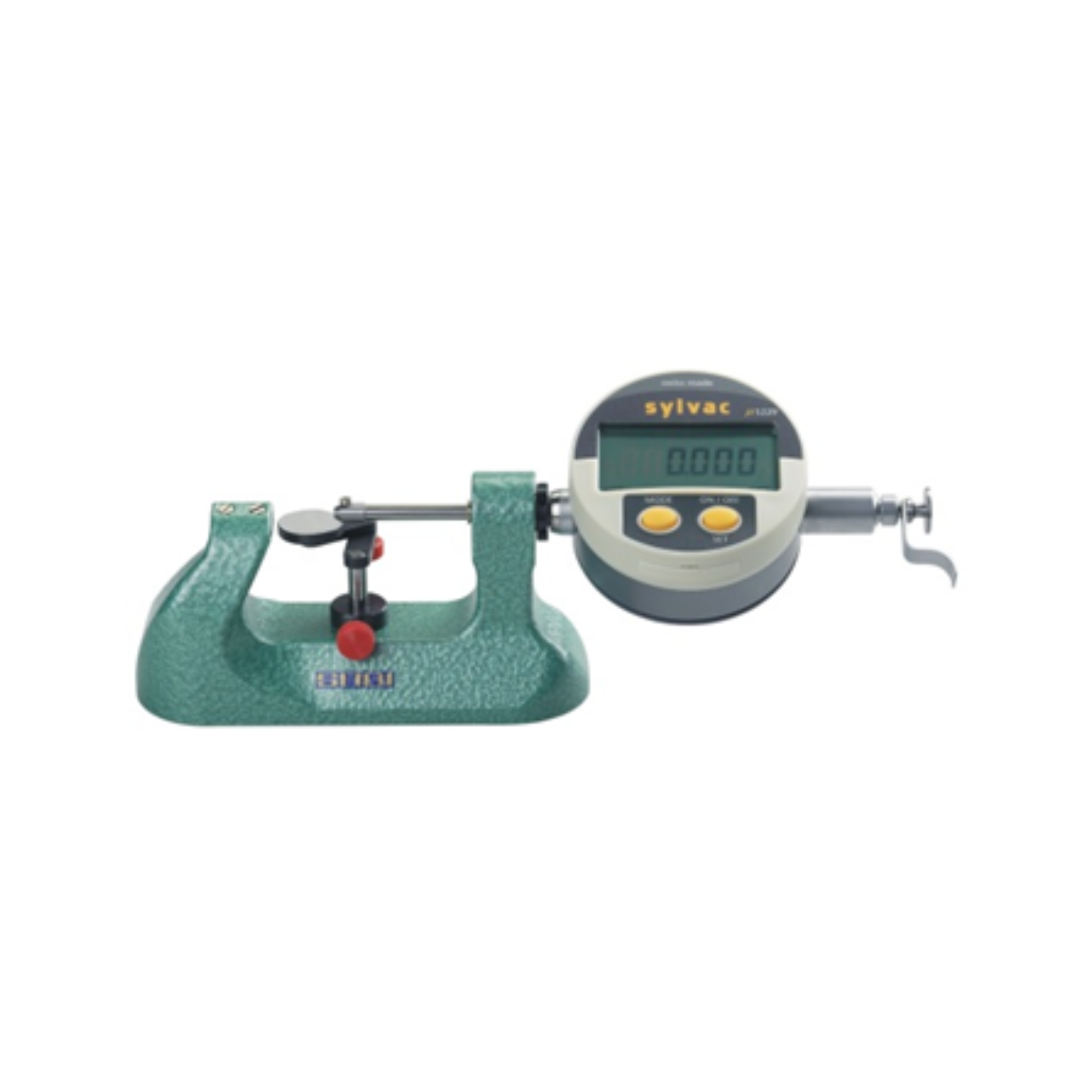

With universal table & with Sylvac digital indicator 12109.7700
