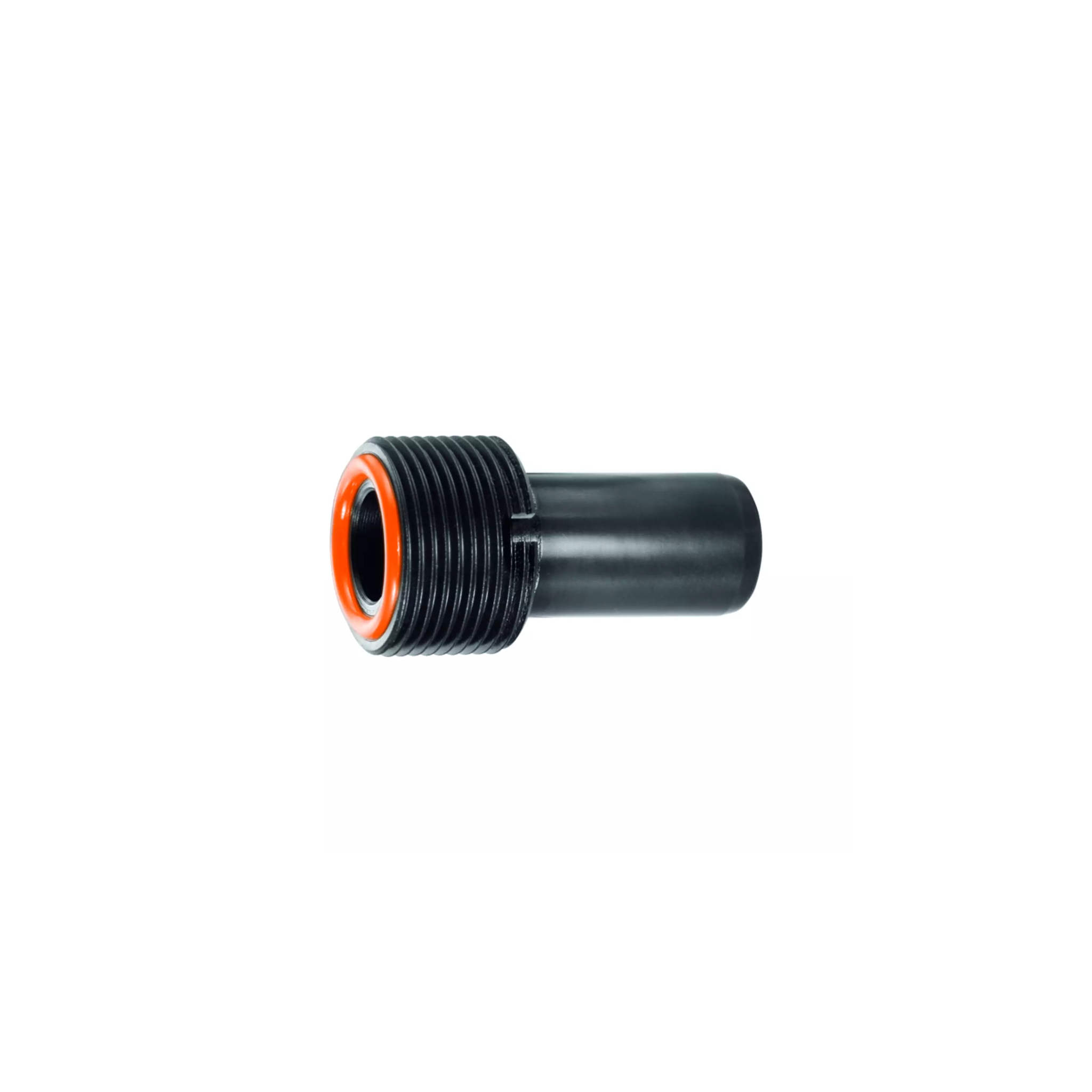

HSK-A50 Coolant fitting "SCHAUBLIN"

HSK-A50 Coolant fitting "SCHAUBLIN"

Kühlmittelrohr – Coolant fitting

The SCHAUBLIN HSK A50 coolant fitting feeds cutting fluid through the toolholder in accordance with DIN 69893 – HSK A, ensuring reliable coolant delivery for high-performance machining.

Precision-machined; install with a compatible adjustment screw (ordered separately) and fit/remove using the matching SCHAUBLIN spanner.

• Type: Coolant fitting / Kühlmittelrohr
• Model: HSK A50
• Item reference: 87-50904
• Thread: M16×1
• Dimensions: D2: 10 mm / D3: 16 mm / L1: 32.7 mm / L2: 9.5 mm
• Tightening torque: 20 Nm
• Associated accessories: Adjustment screw ref. 61-12907 / Spanner ref. 87-50905
