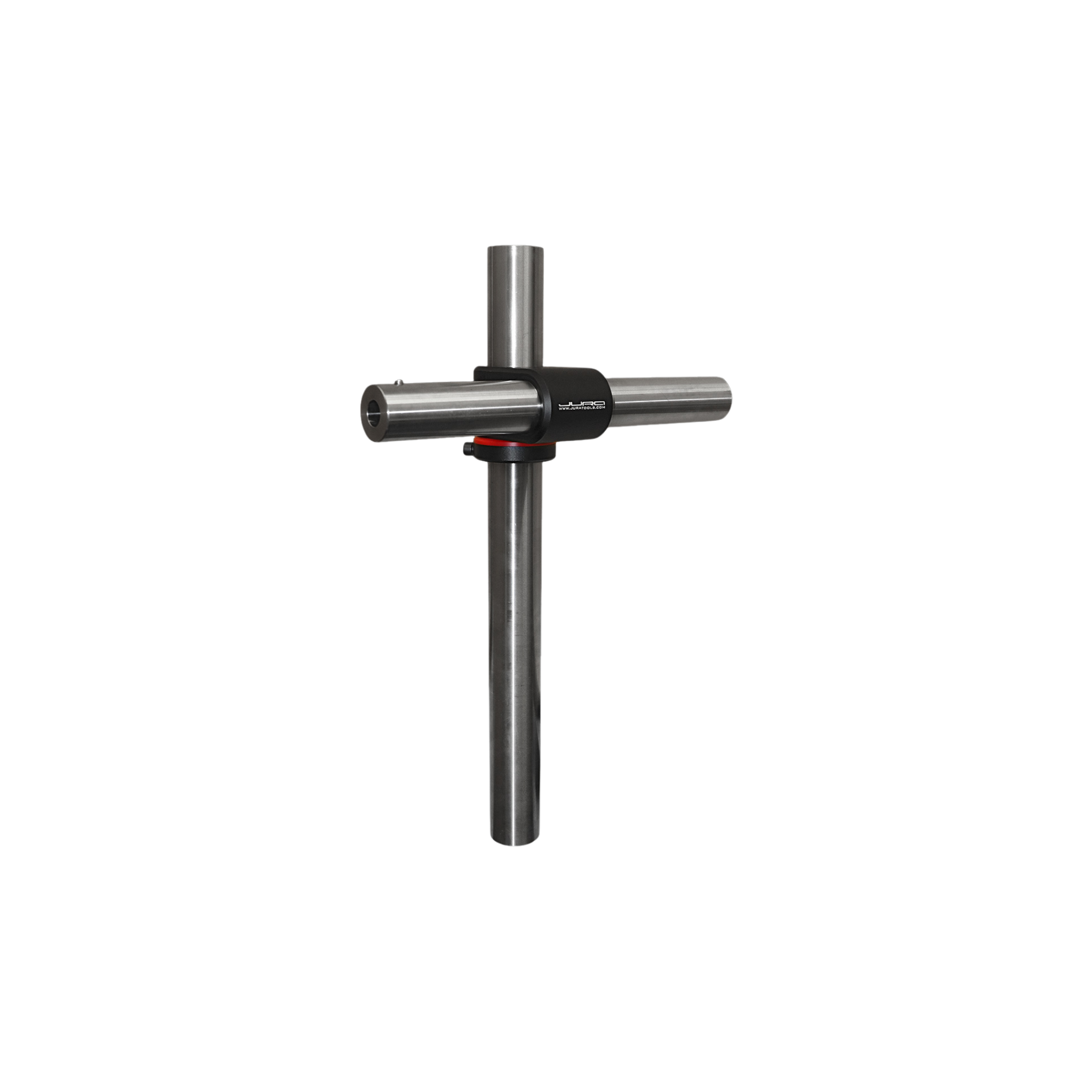

Jura microscope stand for Leica microscopes

This Jura microscope stand fits the Leica microscope. and the Meiji microscopes as well as many other microscopes. A different microscope stand is available for Meiji, Ottensetter and other microscopes.

New design introduces a solid stainless steel tube construction. This makes the stand even more resistant for possible vibrations.
Most sturdy and simple solution for holding and support of microscopes.
This stand can be set at the desired height and then easily swung to the side for work that does not require a microscope.

This stand can be fixed on the back wall of the bench, as well as on the bench top itself.
Now also available with extender (not included but optional available), for those who might need the extra arm for off bench activities.

For conventional jura style bench mounting: The Jura microscope stand can be mounted on a Jura style bench with a mounting wall that is no more than 45 cm away from the front edge of the bench top. The Jura microscope stand is not designed for wall mounting behind the typical jewelers workbench, as the maximum extension of the horizontal tube front to back is 30 cm". The larger vertical tube, which fits into the 4-hole mounting bracket, measures 42,5 cm which will give you the required working distance between your scope and your micro-block.

For direct bench top mounting: The new version of the Jura microscope stand can now be mounted directly to a bench top. For directly bolting the vertical tube to your workbench, you will need access to the underside of your bench in order to fix the mounting hardware.
A mounting ring and a bolt is included. The mounting ring is 31 mm wide and 7 mm thick. You will need to drill a hole in your bench to mount the stand in this manner. The mounting bolt supplied will allow for a maximum bench top thickness of 38 mm. For thicker tops you will need to source a longer bolt. The adjustments for the stand are made with the same universal Jura Hex key.
Please notice that if you wish to have your microscope centered on your bench, you will need to attach the 4-hole mounting bracket to the left of center on your bench.

Scope heads are held in place with an adjustable set screw.

Minimum purchasing quantity: 1 ST
