Ottet collet chuck FNO-K

CHF 4,620.00
CHF 4,620.00
excl. VAT
SKU: 114-100

Supplier : Heidi | Shop

Brand : Niederhauser

On order – delivery in 10–15 business days

Reply within 48 business hours

Product information

Description

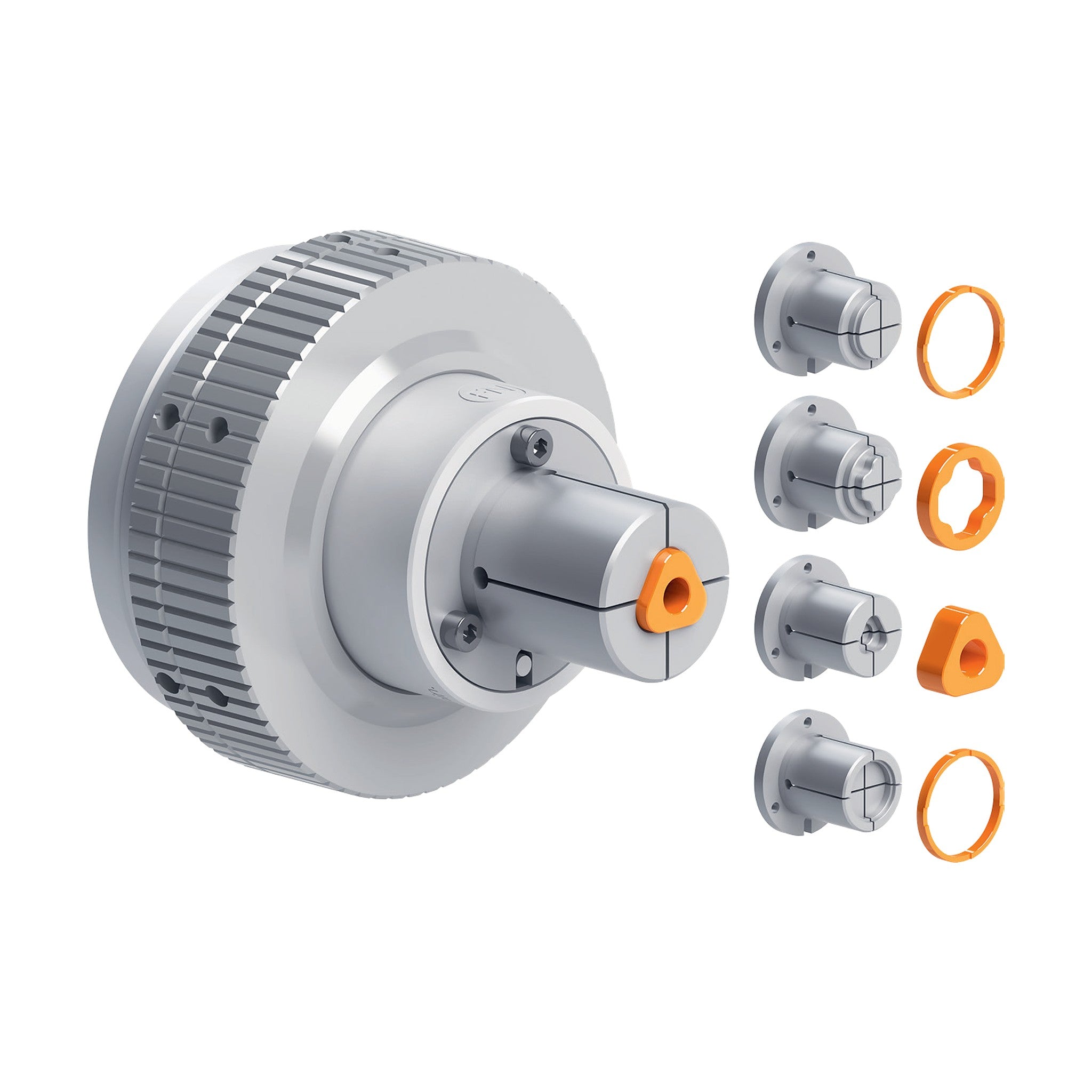

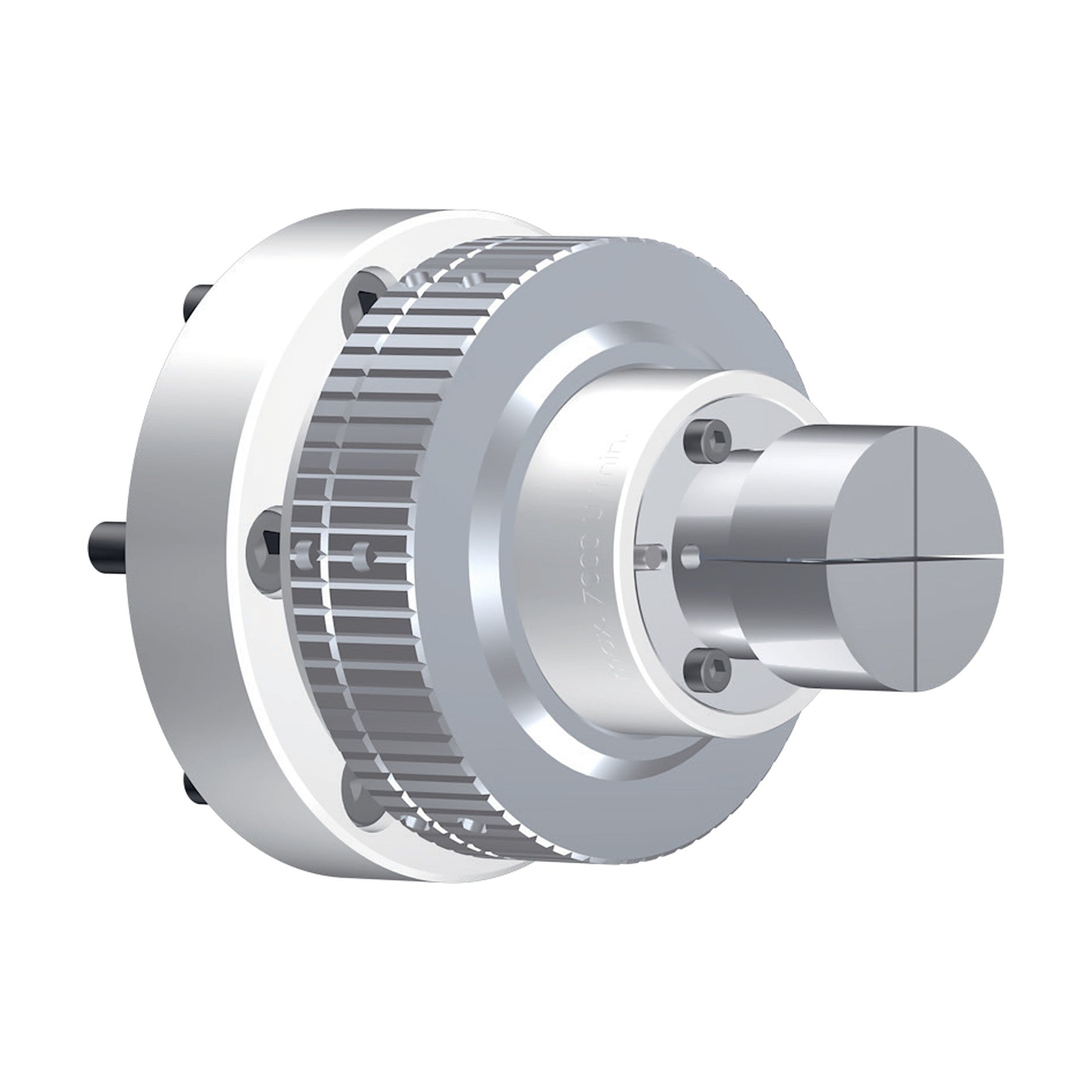

Automatic collet chuck for Ottet collets, actuated by the machine's draw cylinder. Its stroke limitation clamps very thin-walled parts without distortion.

  • Mounting: Z-70 or Z-140 (cylindrical), ASA 2-5 or ASA 2-6 depending on variant
  • Compatible collets: Ottet collets, for external and internal clamping
  • Operation: hydraulic or pneumatic machine draw cylinder; through-centre flushing possible
  • Stroke limitation: mechanical adjustment from outside, on the machine; wall thickness down to 0.25 mm
  • Speed / force: max. 7000 rpm; recommended cylinder SIN-S 100 (no. 33093110)

Supplied with: chuck without collet, mounting screws, pressure pieces for external and internal clamping (for 50 or 55 mm high collets only).

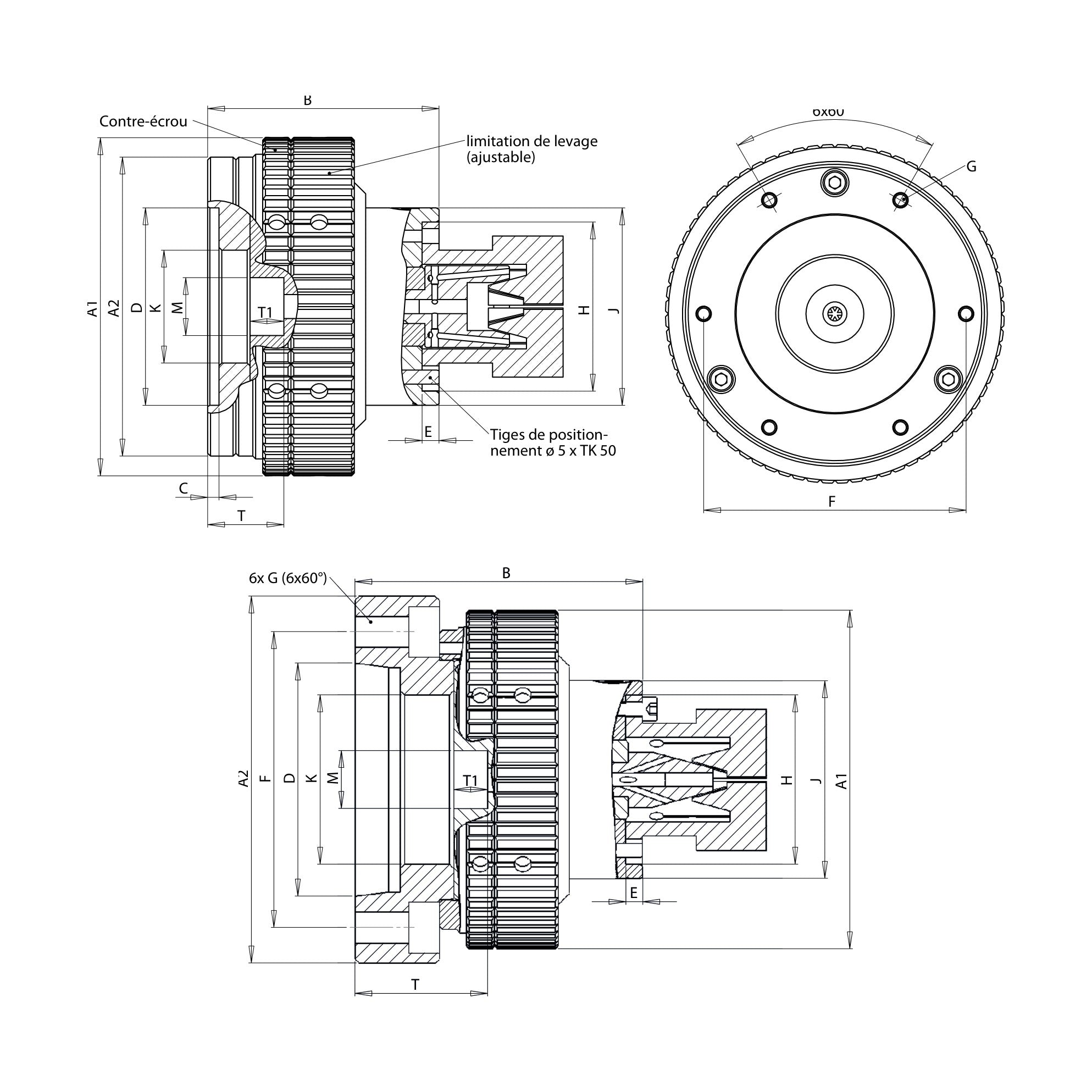

MountingModelItem no.A2BCDFGKT
Z-70FNO-K114-100106 mm82 mm4 mm70 H693 mmM540 mm27 mm
Z-140FNO-K-Z140114-103150 mm102 mm6 mm140 H6104.8 mmM1072 mm47 mm
ASA 2-5FNO-K-A5114-105130 mm107 mm––104.8 mmM1072 mm47 mm
ASA 2-6FNO-K-A6114-106165 mm107 mm––133.4 mmM1272 mm52 mm

Common dimensions: A1 120 mm, E 6 mm, H 60 H6, J 70 mm, M M22 × 1.5, T1 12 mm.

Manual version and other mountings on request.

Other sizes on request. Produced by Niederhauser.
