Ultra-precision FN-Tru 3-jaw chuck – DIN 6350

CHF 1,047.00
CHF 1,047.00
excl. VAT
SKU: 104-200

Supplier : Heidi | Shop

Brand : Niederhauser

On order – delivery in 10–15 business days

Reply within 48 business hours

Product information

Description

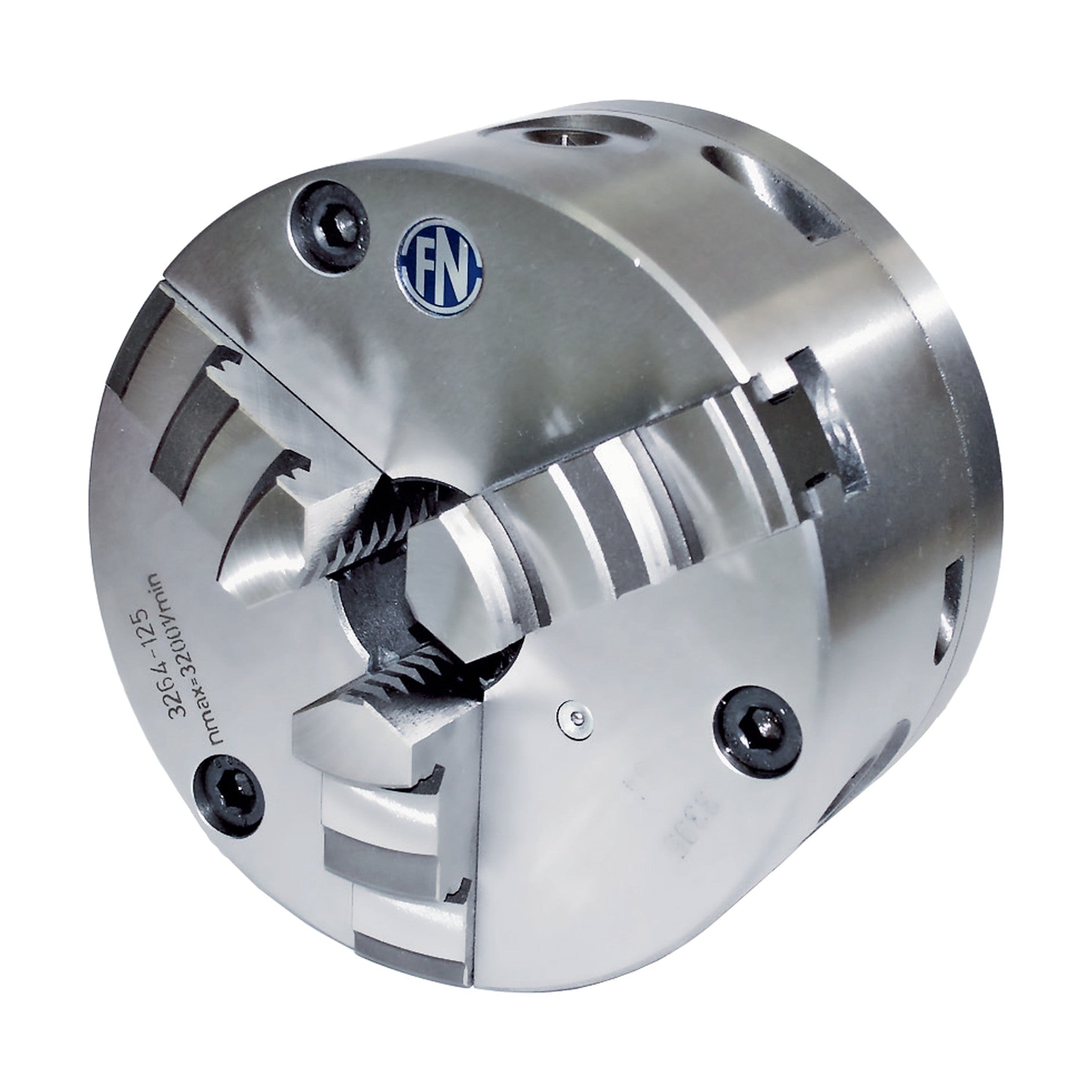

Ultra-precision FN-Tru 3-jaw chuck with cast iron body and central clamping, DIN 6350 mounting. Very fine radial adjustment for perfect concentricity, from ø 80 to ø 315 mm.

Good to know: The DIN 6350 mounting fits the lathe via a backplate, sold separately and chosen to match your spindle nose: DIN 55026 ASA, DIN 55027, DIN 55029 Camlock or threaded backplate (W, F, Cintra, Myford).

  • Mounting: centred cylindrical system to DIN 6350
  • Body: cast iron, central clamping
  • Fine adjustment: 3 radial screws, accuracy better than 0.005 mm
  • Repeatability: 0.015 mm
  • Durability: hardened adjusting spindles, induction-hardened bearing surfaces

Standard accessories: 1 set of drilling jaws, 1 set of turning jaws, 1 chuck key, 1 set of fixing screws.

Chuck ø Article code D (H7) E F Max. clamping force Max. speed
ø 80 mm 104-100 56 mm 16 mm 67 mm 1000 daN 5000 rpm
ø 100 mm 104-200 70 mm 20 mm 83 mm 1700 daN 4500 rpm
ø 125 mm 104-400 95 mm 32 mm 108 mm 2400 daN 4000 rpm
ø 160 mm 104-500 125 mm 42 mm 140 mm 3100 daN 3600 rpm
ø 200 mm 104-600 160 mm 55 mm 176 mm 3700 daN 3000 rpm
ø 250 mm 104-700 200 mm 76 mm 224 mm 4600 daN 2500 rpm
ø 315 mm 104-800 260 mm 103 mm 286 mm 5500 daN 2000 rpm

Other sizes on request. Produced by Niederhauser.
