Tailstock FN

CHF 760.00
CHF 760.00
excl. VAT
SKU: 180-320

Supplier : Heidi | Shop

Brand : Niederhauser

On order – delivery in 10–15 business days

Reply within 48 business hours

Product information

Description

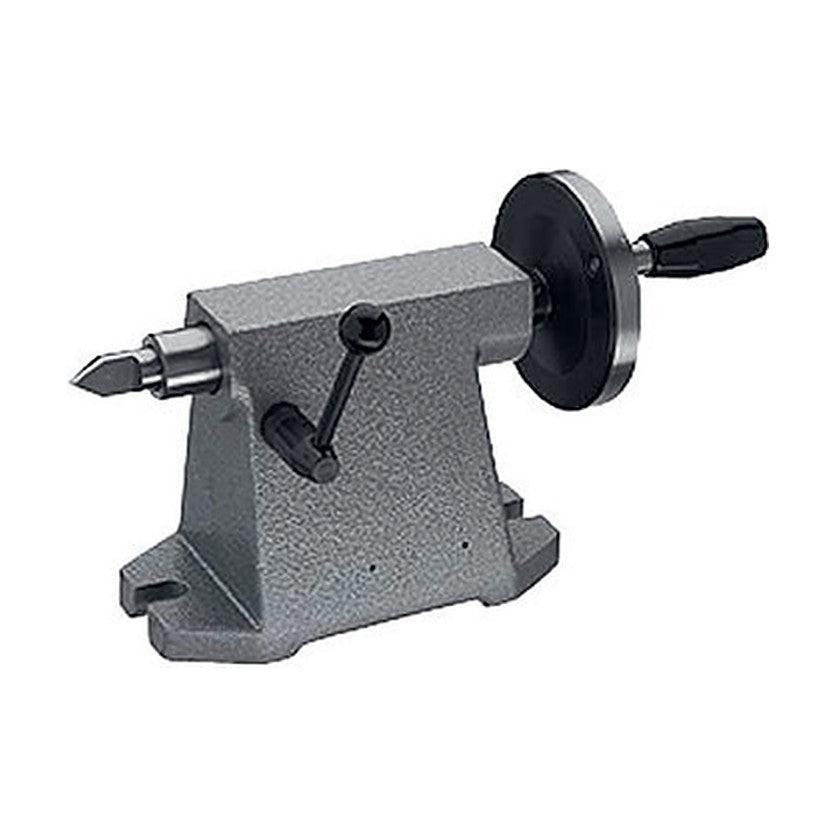

Tailstock with cast-iron housing, for centre heights of 100 to 250 mm, matching the FN manual dividing head.

  • Housing: cast iron
  • Clamping: on the left
  • Centre: half centre 60°
  • Morse taper: MT 2 to MT 4 depending on size
  • Weight: 6.1 to 23.1 kg

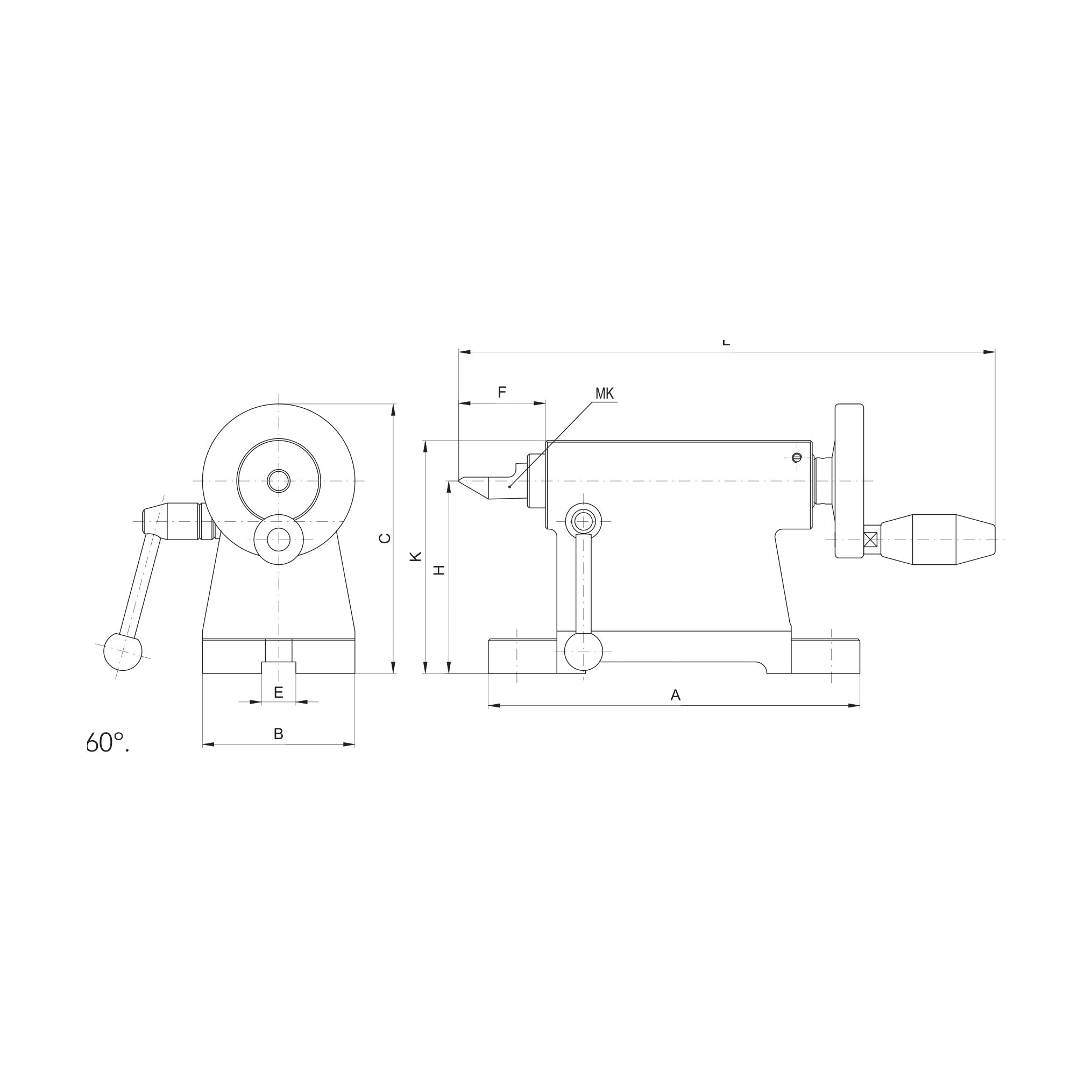

Centre heightItem no.ABCEFMorse taper (MT)Weight
100 mm180-320195 mm80 mm140 mm14 mm33 - 63 mm26.1 kg
125 mm180-420195 mm90 mm178 mm14 mm39 - 69 mm27.4 kg
160 mm180-520250 mm115 mm213 mm18 mm48 - 85 mm312.7 kg
200 mm180-620275 mm130 mm253 mm18 mm59.5 - 99.5 mm417.9 kg
250 mm180-720280 mm150 mm303 mm18 mm59.5 - 99.5 mm423.1 kg

Other sizes on request. Produced by Niederhauser.

Specifications

Main specifications

Machining and production operations
Fraisage
Technical data sheet
Niederhauser — Chapitre 8 (catalogue FR)
Documentation
Download documentation (PDF)
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
