SCHAUBLIN F30 lisse / 76-00101 Push-Type Collet
SCHAUBLIN F30 lisse / 76-00101 Push-Type Collet
SCHAUBLIN F30 lisse / 76-00101 Push-Type Collet
SCHAUBLIN F30 lisse / 76-00101 Push-Type Collet

SCHAUBLIN F30 lisse / 76-00101 Push-Type Collet

CHF 97.00
CHF 97.00
excl. VAT
SKU: 76-00101D09.0L

Supplier : Heidi | Shop

Brand : Schaublin RBC

In stock – ships within 2 to 3 days

Reply within 48 business hours

Product information

Description

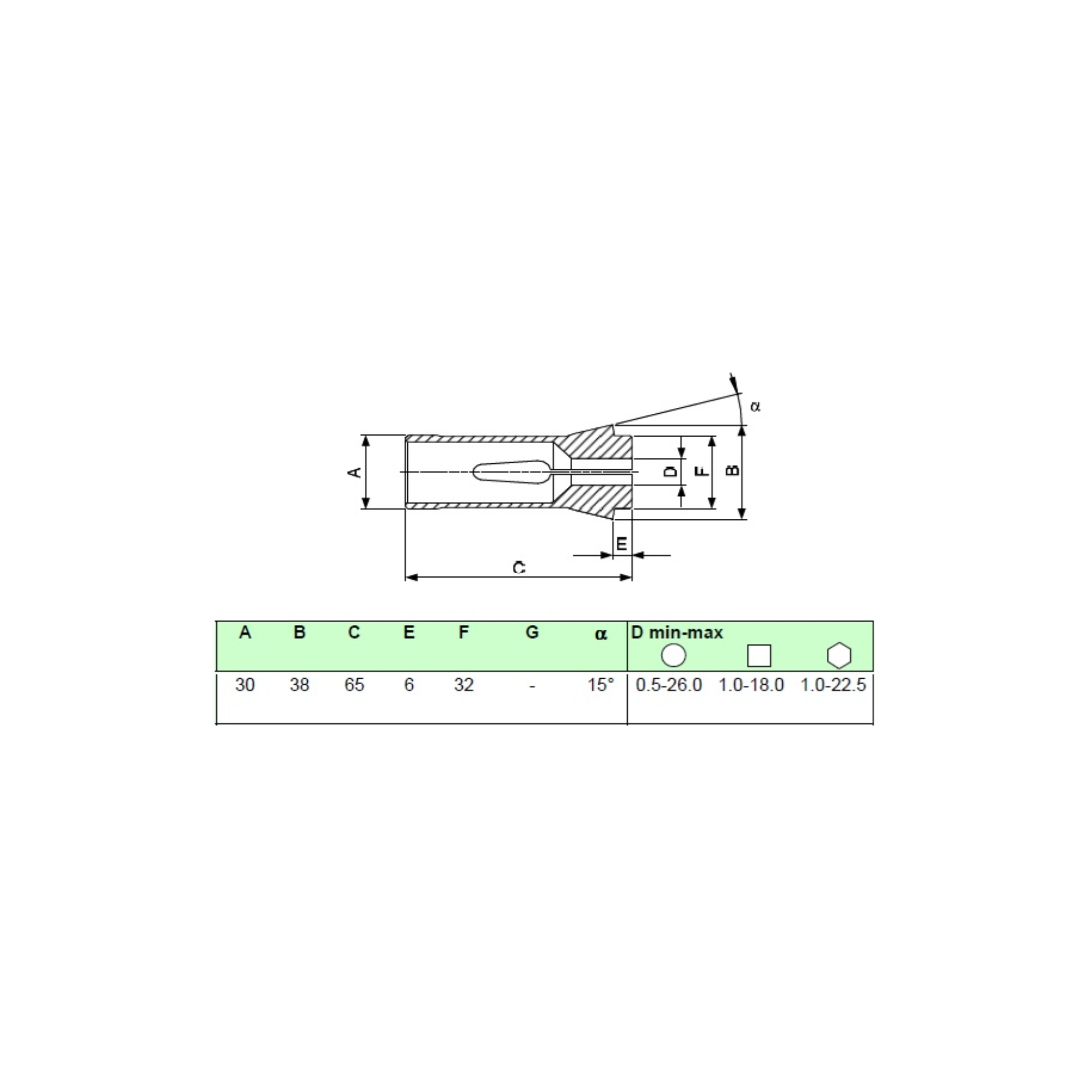

SCHAUBLIN F30 lisse / 76-00101 Push-Type Collet

SCHAUBLIN Push-Type Collet Type F – Smooth Bore

The Type F push-type collet with a smooth internal bore is ideal for precise axial clamping without marking, suitable for cylindrical or standard-profile workpieces.

Clamping is achieved by pushing the collet into its housing using a nut or tapered sleeve.

Key features:

  • Fully smooth bore – perfect for uniform, non-marking clamping
  • Type F – compatible with dedicated spindle systems
  • Well-suited for machining operations requiring reliable concentricity

Note: When not clamped, the collet remains slightly open. The bore must not be measured in this state.
