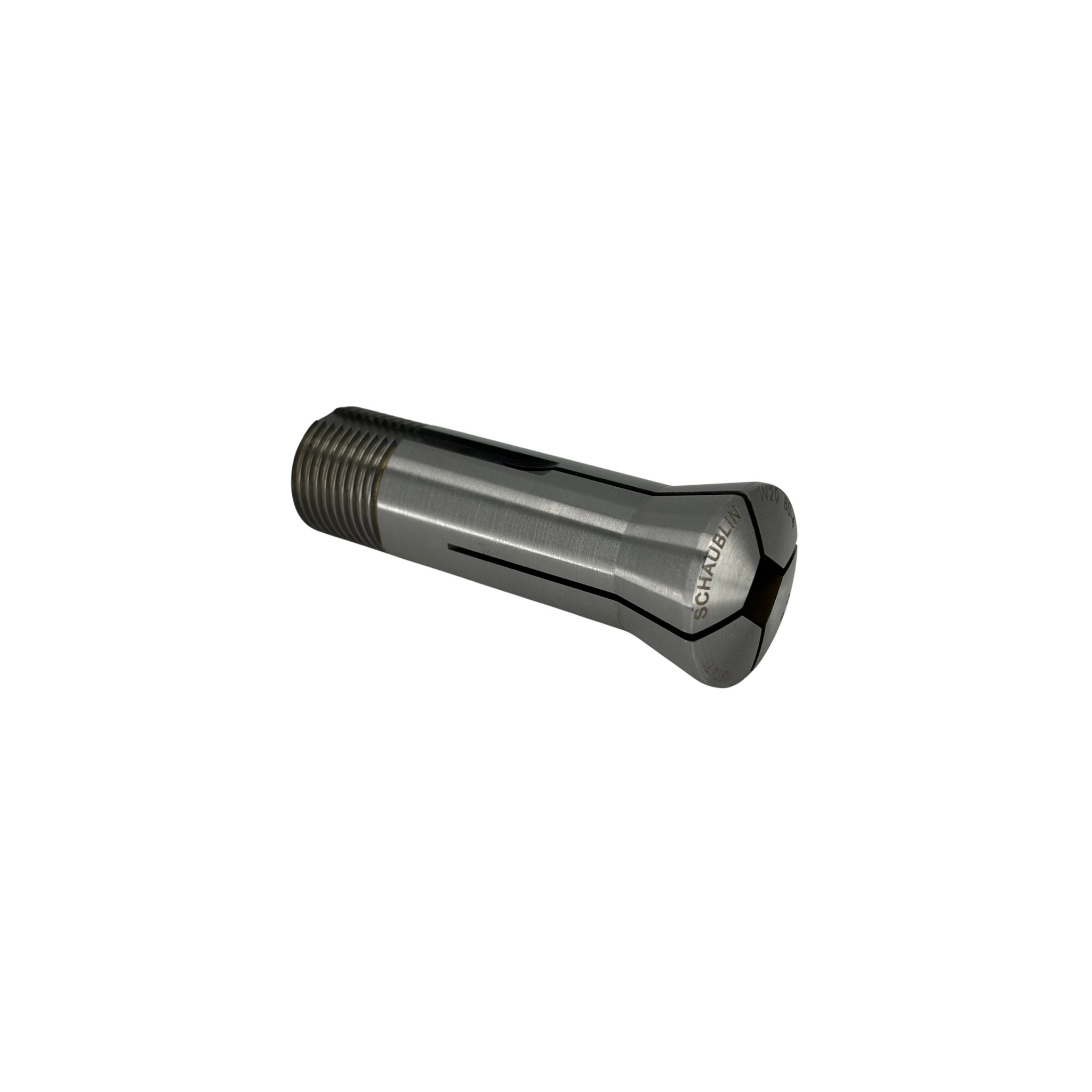

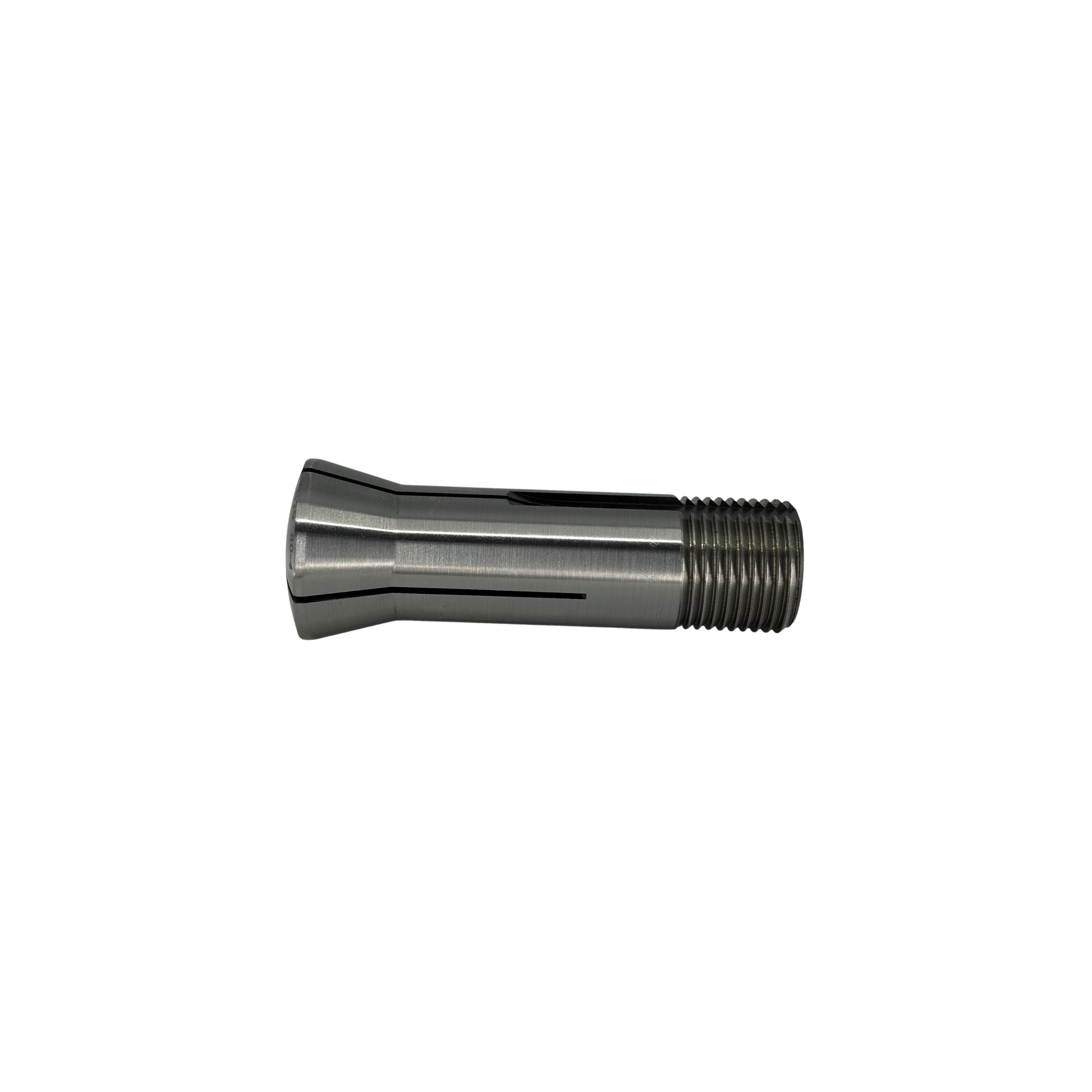

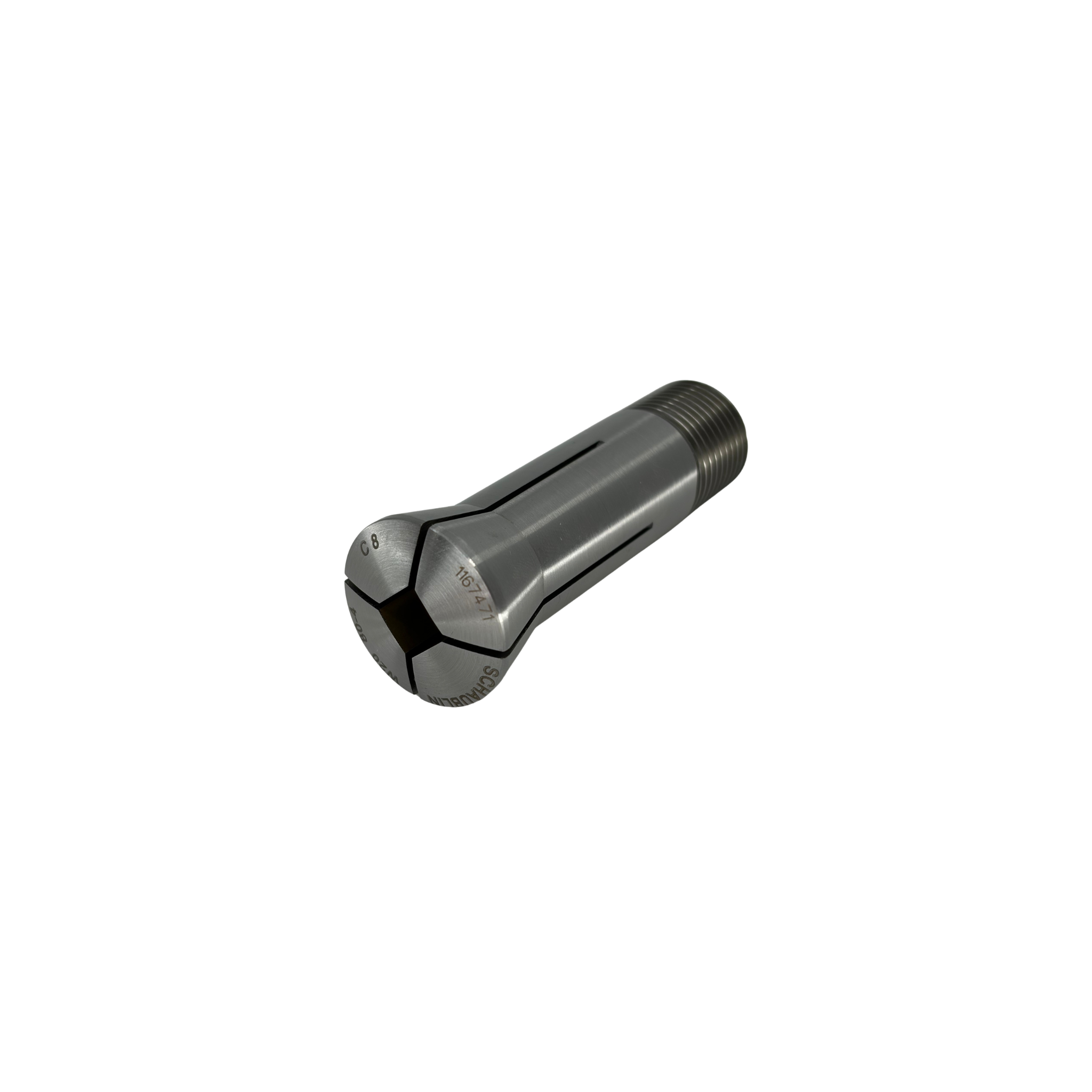

SCHAUBLIN W12 Square Pull-Type Collet

SCHAUBLIN W12 Square Pull-Type Collet

The SCHAUBLIN type W Pull-Type Collet clamps axially by being drawn into its seat using a clamping wrench.

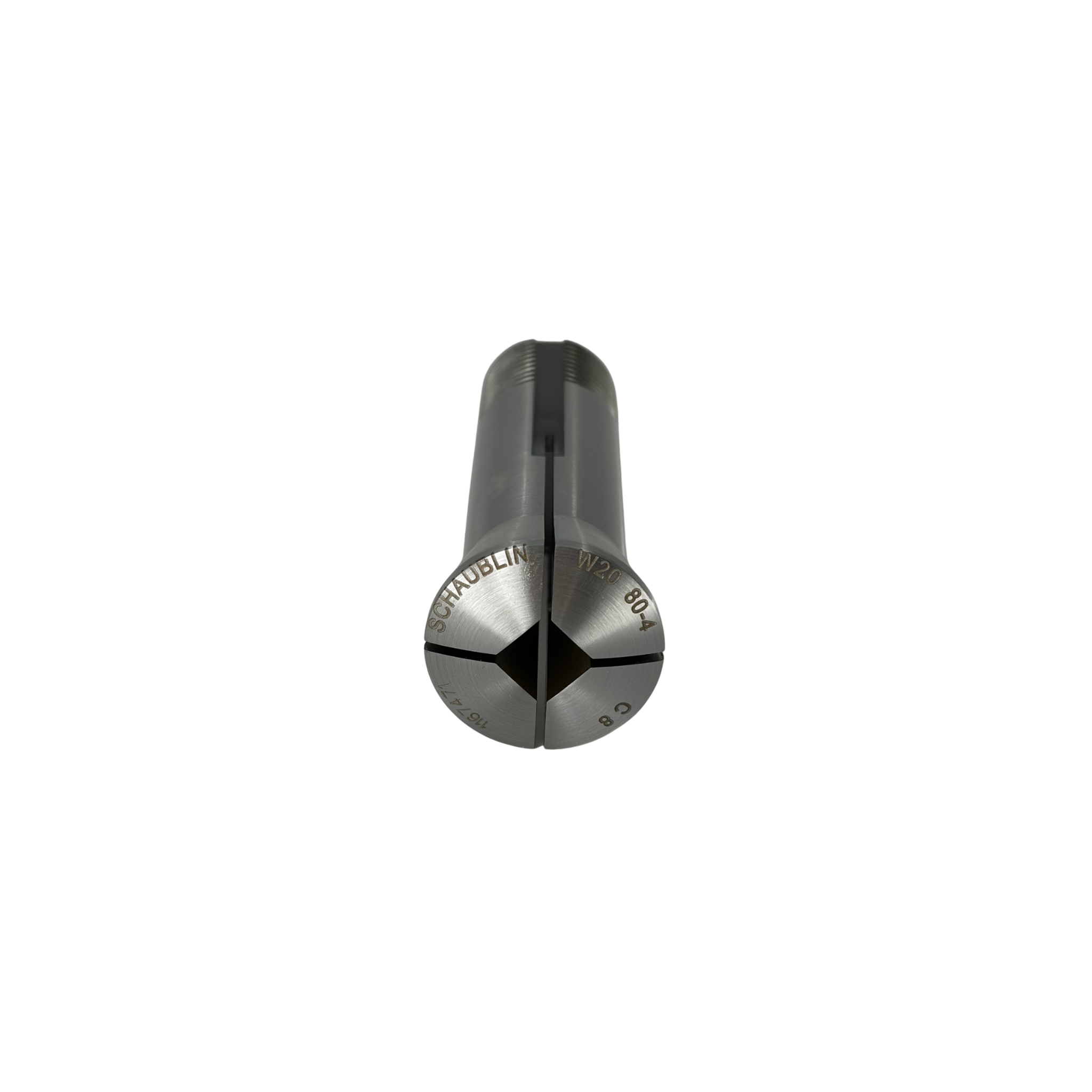

It features a distinctive external thread whose nominal diameter closely matches the body diameter. This version is equipped with a square bore for securely holding angular workpieces.

• Recommended use: toolroom lathes and precision machines
• Bore type: square – ideal for square or angular parts
• Opening: minimal – suitable for controlled clamping
• Clamping range: avoid exceeding 0.1 mm below nominal diameter
• Concentricity: ensured when nominal size is respected
