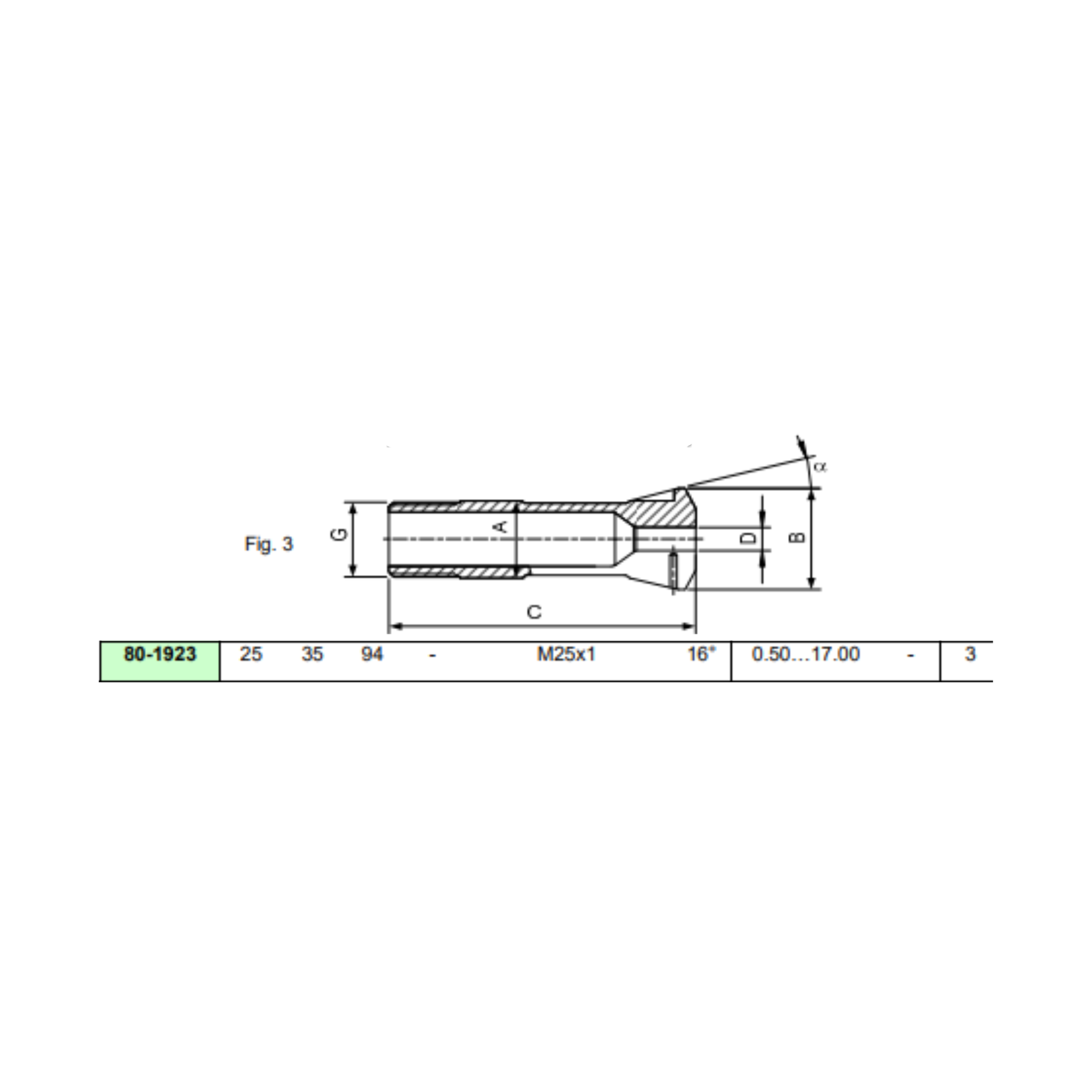

SCHAUBLIN W25 Collet / 80-01923D03.0

SCHAUBLIN W25 Collet / 80-01923D03.0 – Type W

The SCHAUBLIN Type W collet is drawn axially into the spindle using an external thread, ensuring secure and precise clamping.

This model stands out by its external thread, with a nominal diameter nearly equal to the body diameter.

• Reference: 80-01923D03.0
• Recommended applications: toolroom lathes, watchmaking machines, precision spindles
• Opening: minimal – ensures stable, controlled grip
• Clamping system: axial pull via external thread
• Clamping tolerance: do not exceed 0.1 mm below nominal diameter
• Bore: smooth
