Pneumatic collet fixture SPA

CHF 2,884.00
CHF 2,884.00
excl. VAT
SKU: 113-112

Supplier : Heidi | Shop

Brand : Niederhauser

On order – delivery in 10–15 business days

Reply within 48 business hours

Product information

Description

Double-acting pneumatic fixture clamping with push-type collets, ideal for work without indexing. Parts stay firmly held without distortion.

Good to know: Collets are not included: the variant indicates the collet type the fixture accepts.

  • Shapes: square (vertical or horizontal) or round (vertical only)
  • Compatible collets: push-type collets F12 (113E), F27 (147E), F38 (164E), F48 (173E), F66 (185E)
  • Operation: double-acting pneumatic, form-locking clamping
  • Pressure / force: 2 to 6 bar; clamping force 4.3 to 32 kN at 6 bar

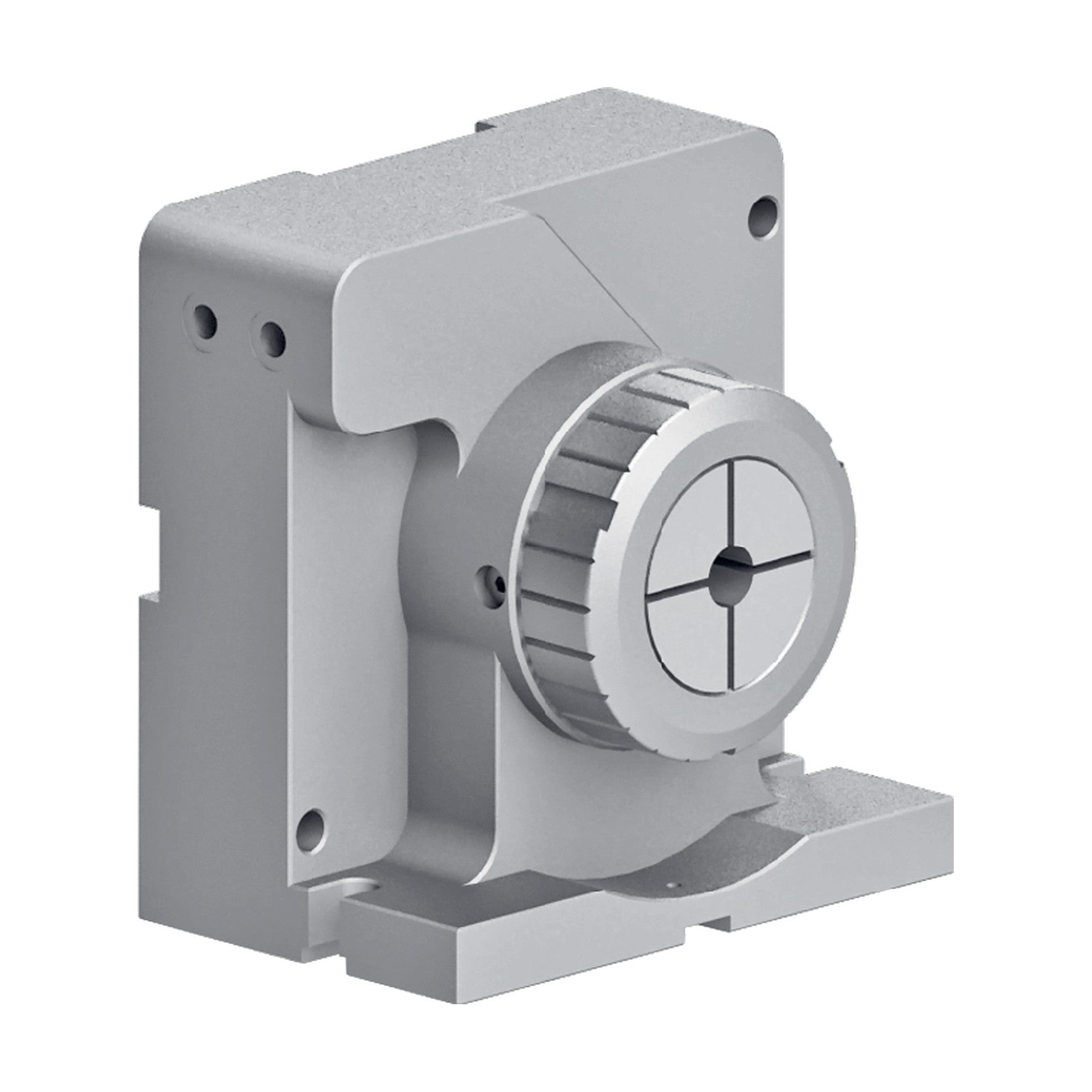

Square – vertical or horizontal use

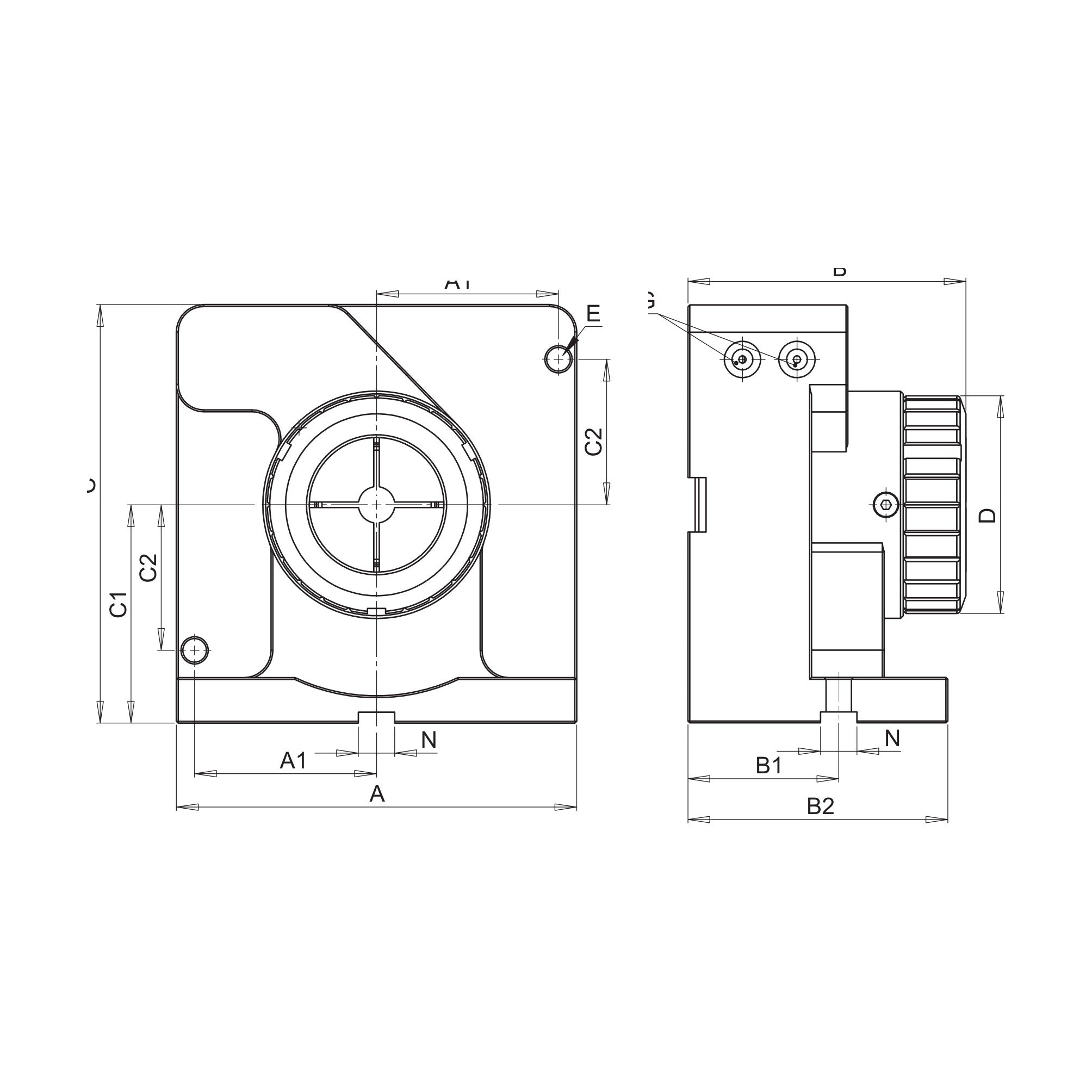

Collet typeItem no.ABCDEGN H7Clamping force at 6 bar
F12 (113E)113-11290 mm81 mm90 mm50 mmM8G 1/812 mm4.3 kN
F27 (147E)113-127140 mm105 mm150 mm80 mmM10G 1/420 mm16 kN
F38 (164E)113-138170 mm140 mm185 mm90 mmM12G 1/420 mm18 kN
F48 (173E)113-148170 mm140 mm185 mm90 mmM12G 1/420 mm18 kN
F66 (185E)113-166220 mm153 mm230 mm120 mmM12G 1/420 mm32 kN

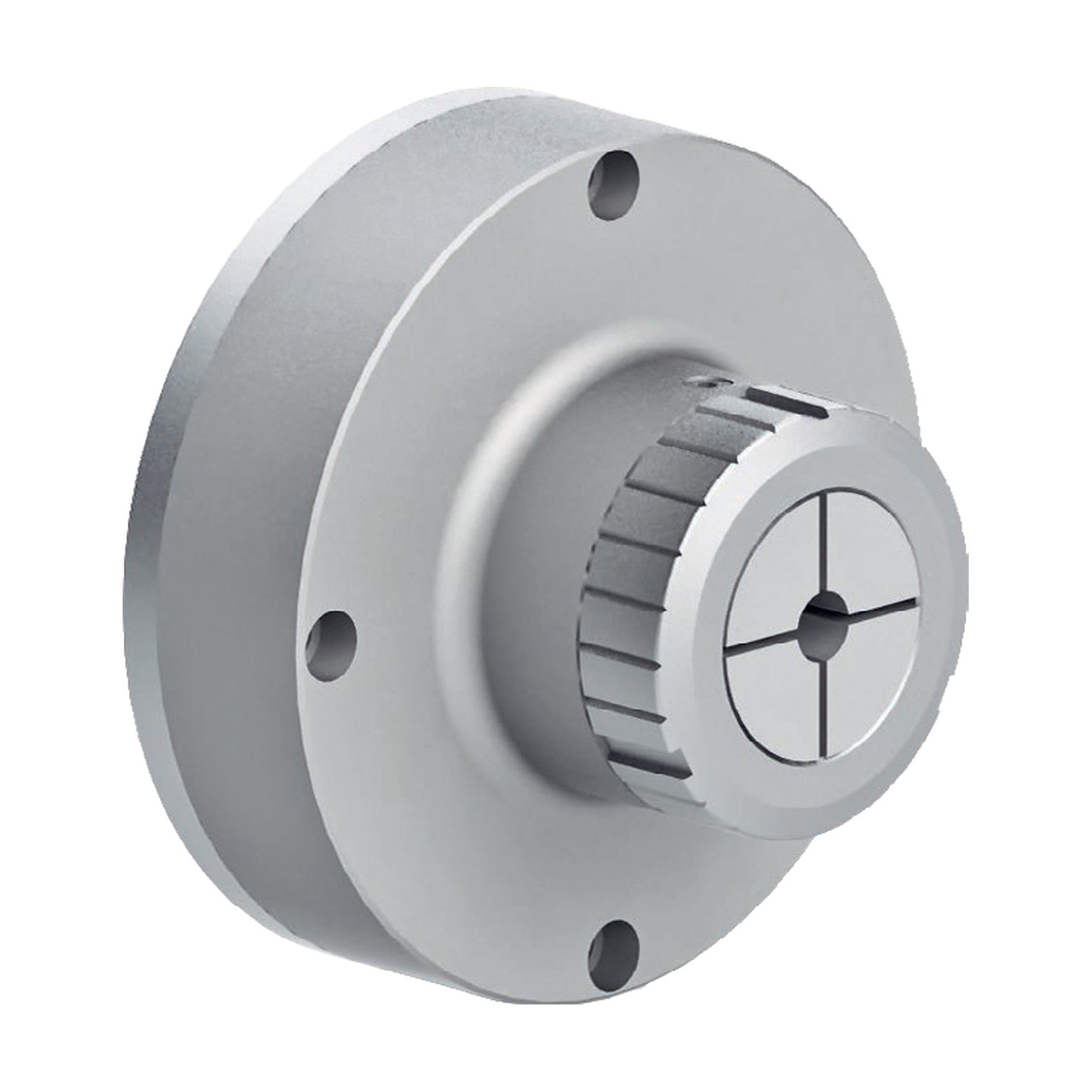

Round – vertical use, H7 slot 20 mm

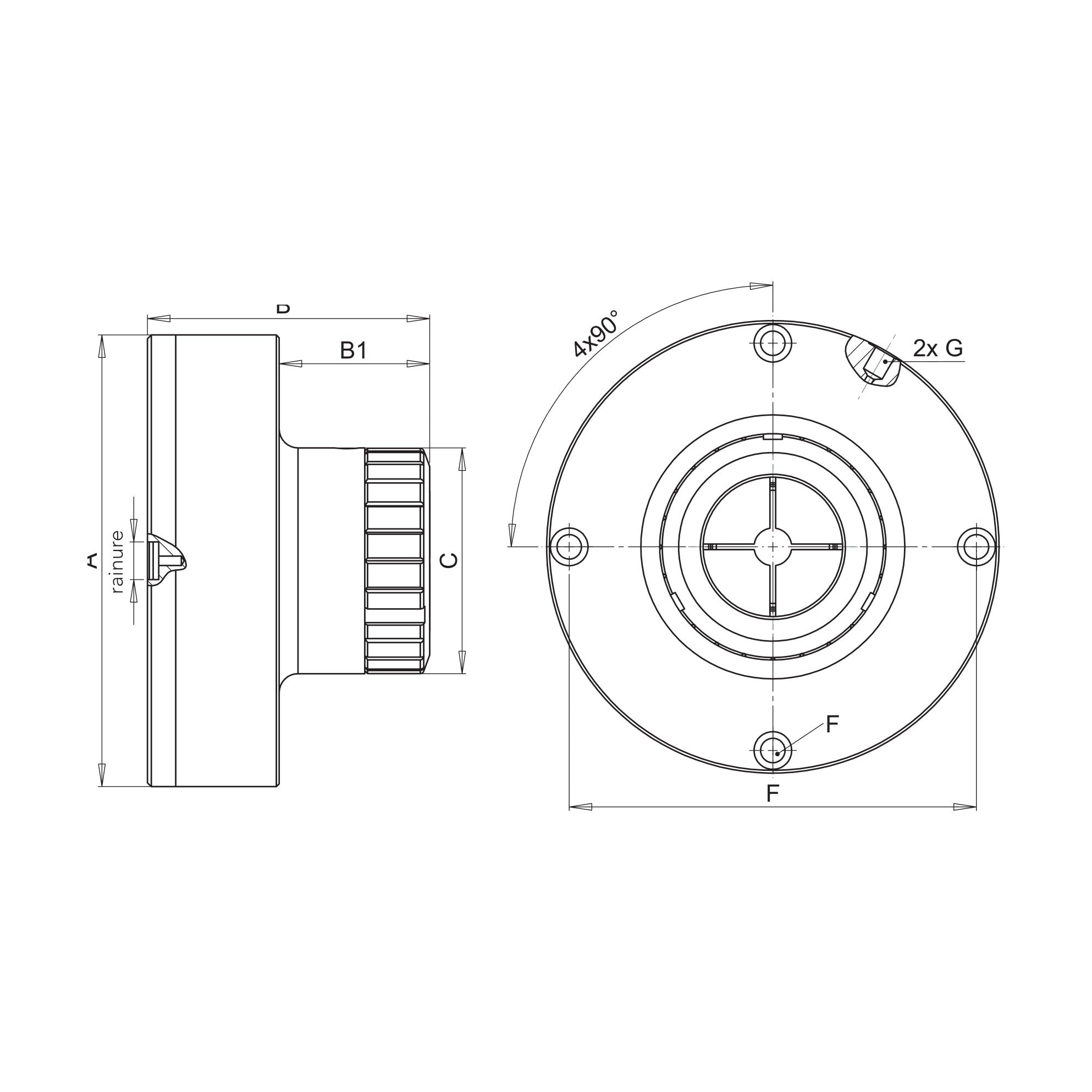

Collet typeItem no.ABB1CEFGClamping force at 6 bar
F12 (113E)113-012110 mm88 mm33 mm50 mmM890 mmG 1/84.3 kN
F27 (147E)113-027165 mm110 mm48 mm80 mmM10144 mmG 1/416 kN
F38 (164E)113-038190 mm140 mm70 mm90 mmM12168 mmG 1/418 kN
F48 (173E)113-048190 mm140 mm70 mm90 mmM12168 mmG 1/418 kN
F66 (185E)113-066240 mm150 mm80 mm120 mmM12216 mmG 1/432 kN

Other sizes on request. Produced by Niederhauser.

Specifications

Main specifications

Machining and production operations
Fraisage
Technical data sheet
Niederhauser — Chapitre 8 (catalogue FR)
Documentation
Download documentation (PDF)
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
