Tripan® 211S SV125 clamping element assembly

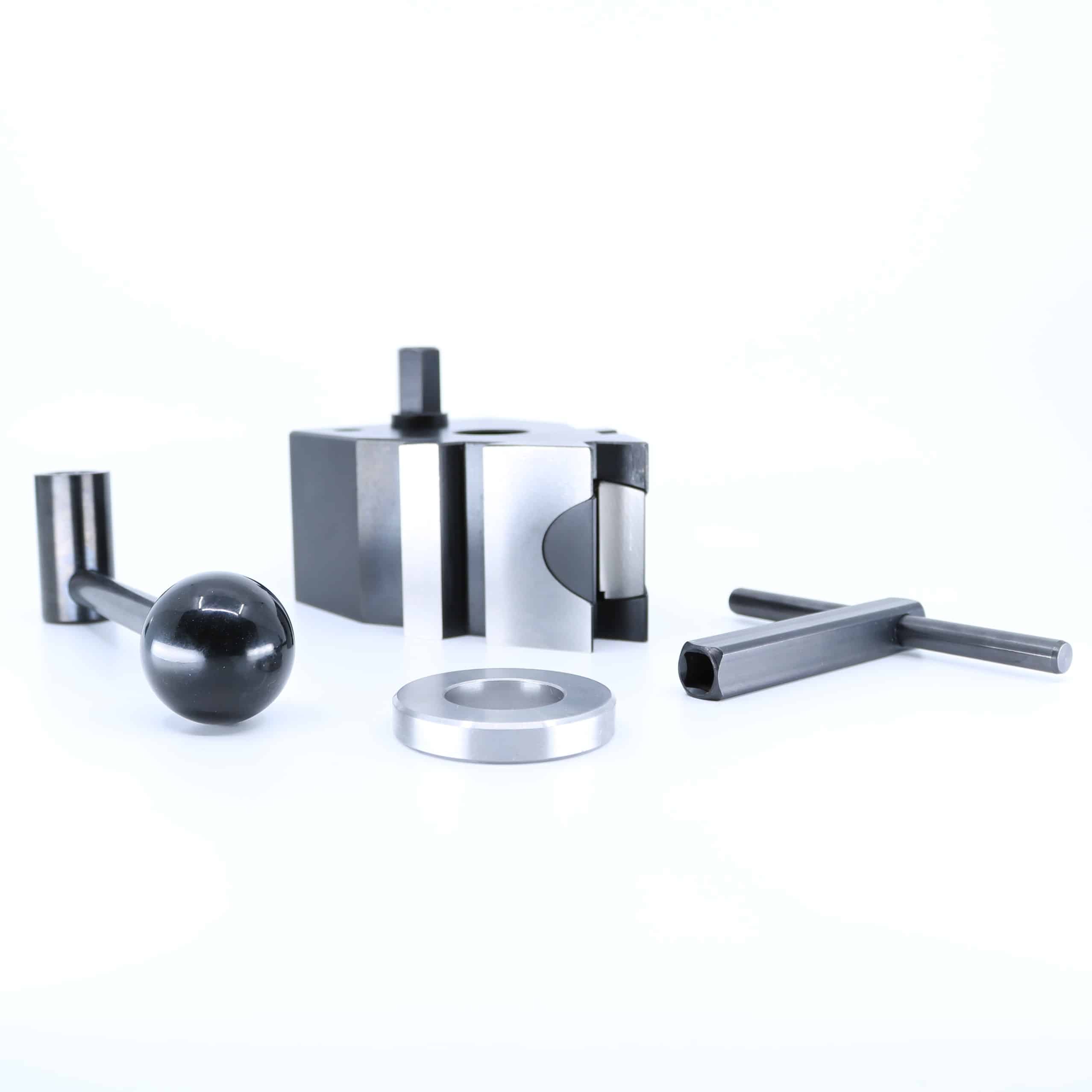

Tripan® 211 S SV125 clamping element set with lever, clamping key, tie rod and Tripan® 1211 centering disc. Compatible with series 2 and series 1 tool holders, specifically adapted for Schaublin® SV125 lathe.

Amax=65mm / Bmax=65mm / C=21 to 41 mm

A: Distance from the center of the turret with the face of the fixture table or cross slide that is parallel to the spindle.

B: Distance from the center of the turret with the face of the clamping table or cross slide which is perpendicular to the spindle.

C: The height of your lathe spindle center should be between 21 and 41mm from the clamping table or cross slide.

A size guide will be coming soon!
