Tripan® 211S clamping element assembly

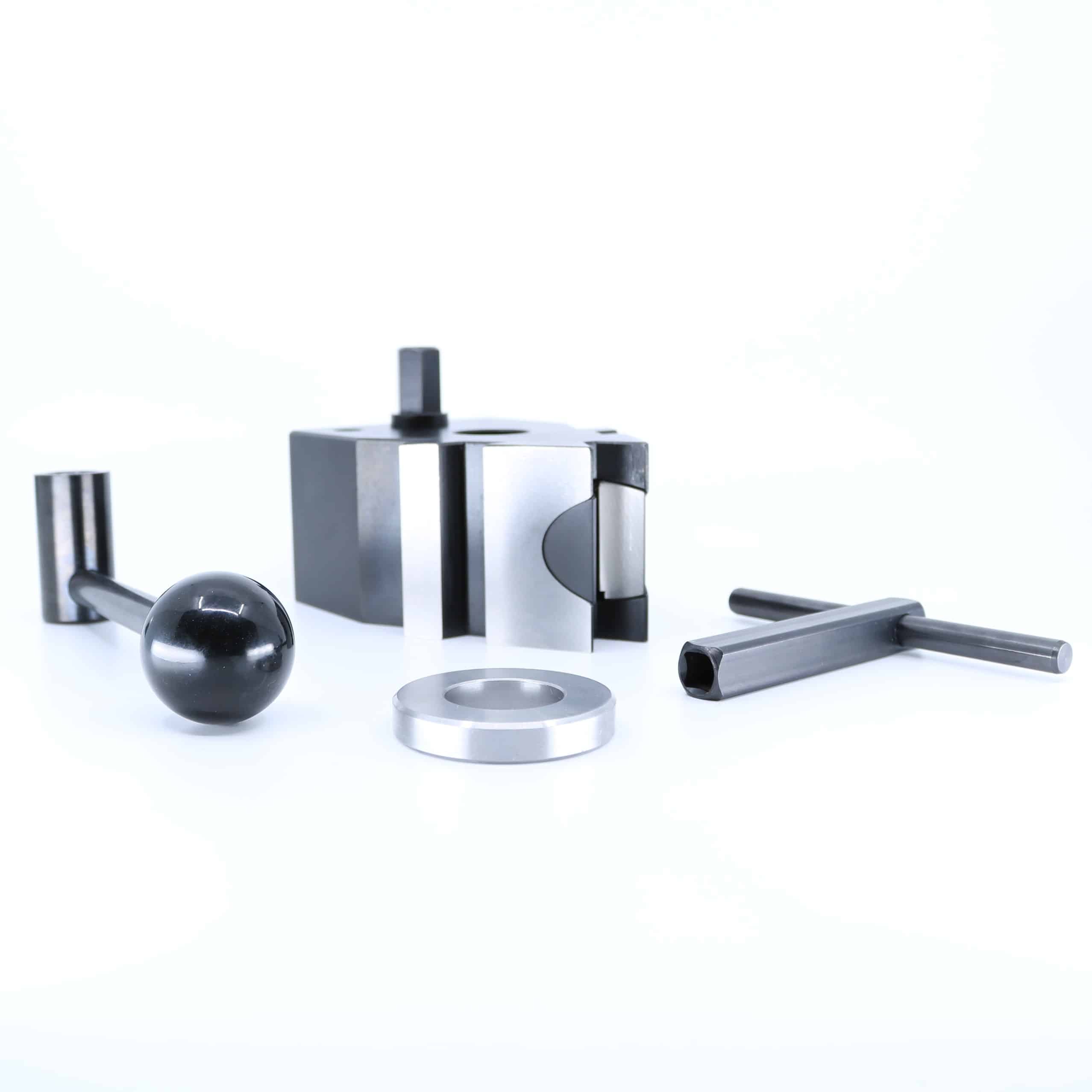

The Tripan® 211 S clamping assembly offers rigidity, repeatability, and durability for high-precision machining. It primarily accommodates Series 2 and Series 1 tool holders. Consisting of a clamping body, the Tripan® 1203 lever, the Tripan® 1230 wrench, and the Tripan® 1211 centering disc included.

Amax=65mm / Bmax=65mm / C=21 to 41 mm

A: Distance from the center of the turret with the face of the fixture table or cross slide that is parallel to the spindle.

B: Distance from the center of the turret with the face of the clamping table or cross slide which is perpendicular to the spindle.

C: The height of your lathe spindle center should be between 21 and 41mm from the clamping table or cross slide.

A size guide will be coming soon!
