Tripan® 11 clamping element assembly

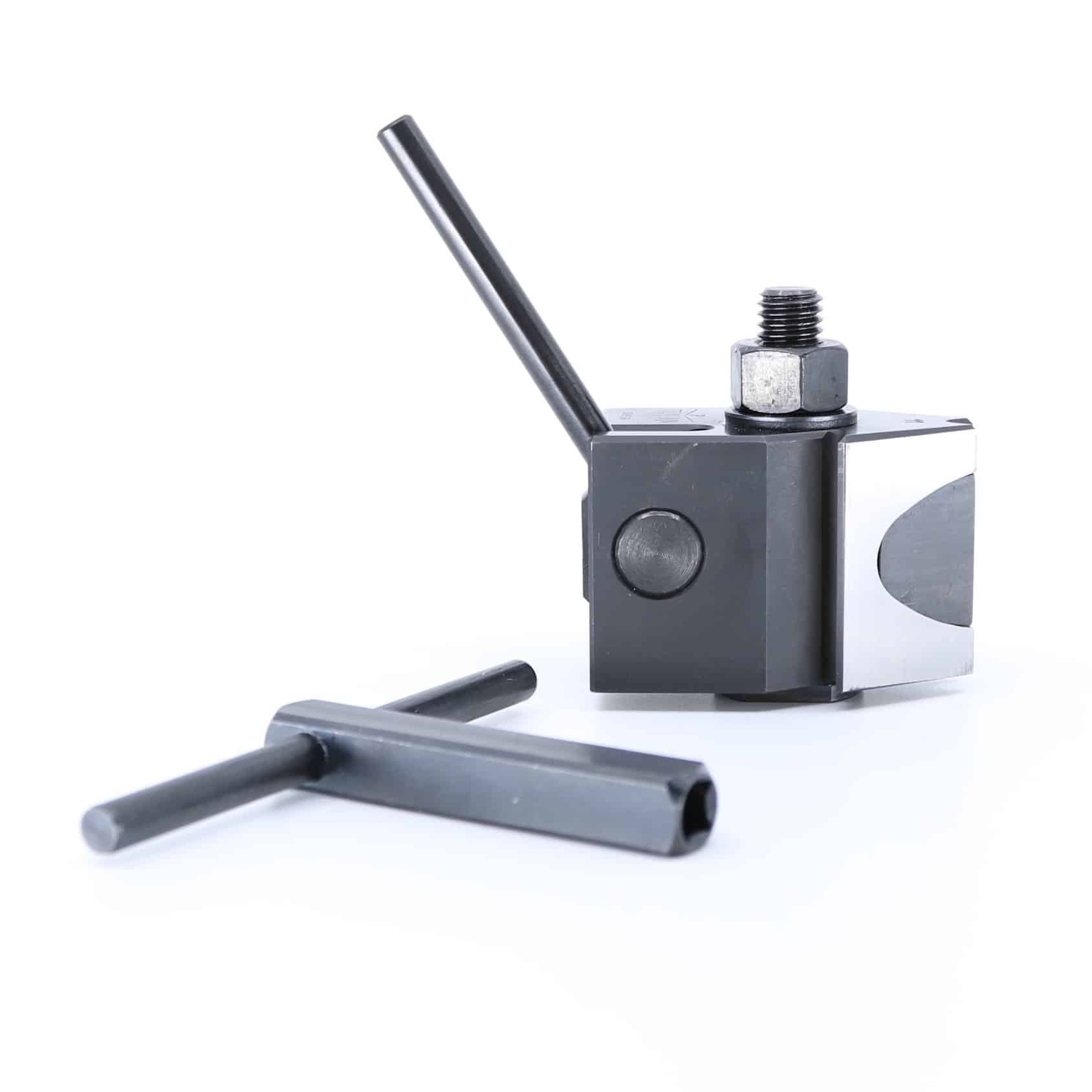

The Tripan® 11 clamping assembly ensures rigidity, precision, and durability for quality machining. Compatible with Series 0 toolholders, it includes an integrated lever, a Tripan® 1202 wrench, and a Tripan® 11-05 tie rod. Other tie rods are available depending on your machine.

Amax=30mm / Bmax=25mm / C=12 to 24mm

A: Distance from the center of the turret with the face of the fixture table or cross slide that is parallel to the spindle.

B: Distance from the center of the turret with the face of the clamping table or cross slide which is perpendicular to the spindle.

C: The height of your lathe spindle center should be between 12 and 24mm from the clamping table or cross slide.

A size guide will be coming soon!
