Two-Axis Measuring Device with Micrometer Stop SABI 0–25 mm Type H 03
Two-Axis Measuring Device with Micrometer Stop SABI 0–25 mm Type H 03

Two-Axis Measuring Device with Micrometer Stop SABI 0–25 mm Type H 03

CHF 968.00
CHF 968.00
excl. VAT
SKU: 12400,2100

Supplier : André Frei & Fils SA

Brand : Sabi

On order – delivery within 10 to 15 days

Reply within 48 business hours

Product information

Description

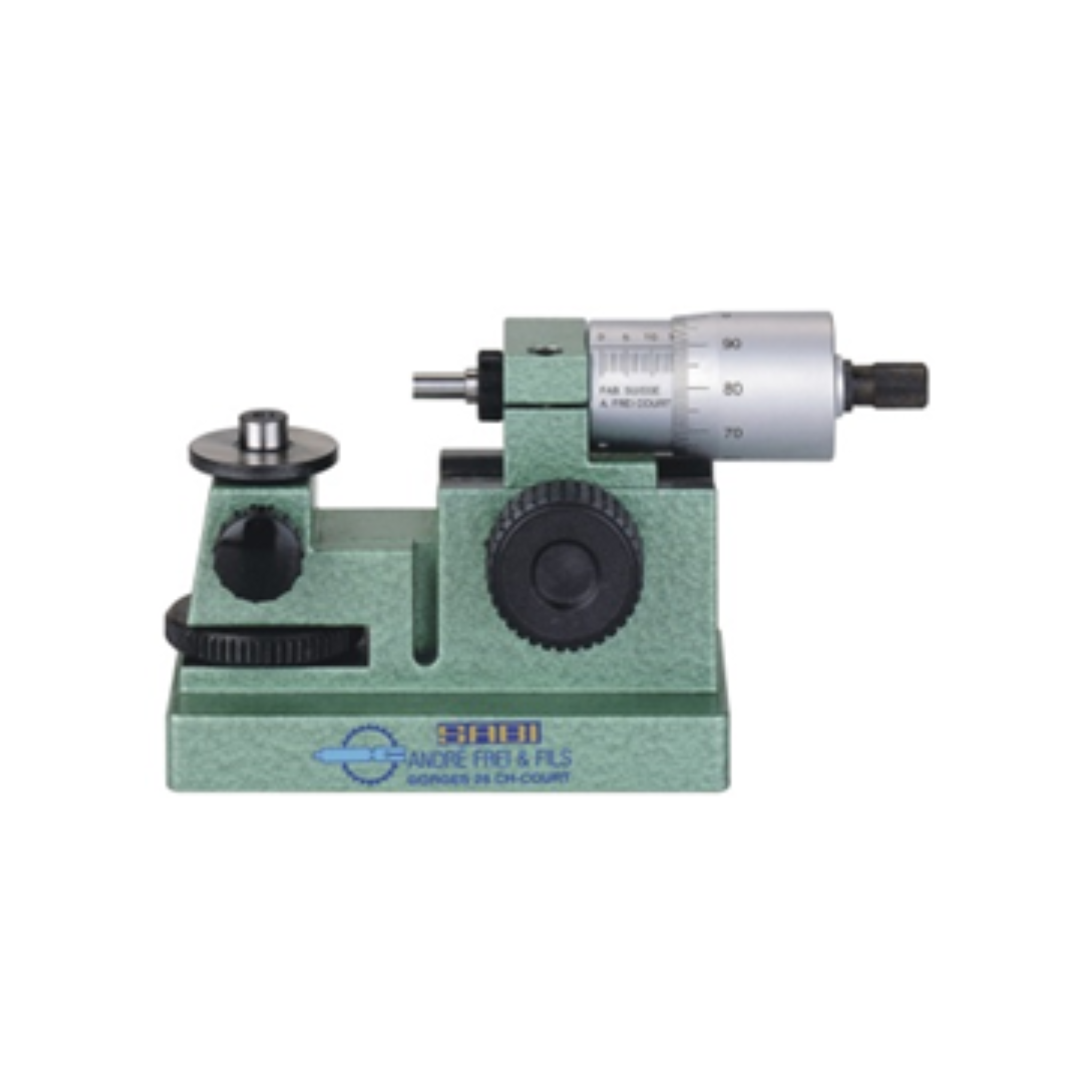

SABI – Two-Axis Measuring Device 0–25 mm Type H 03

The SABI two-axis measuring device type H 03 with micrometer stop is designed for precise inspections in production environments. It complies with DIN 863-1 and ensures reliable measurements with a travel of 25 mm. The interchangeable movable SABI measuring contact is available on request, allowing optimal adaptation to your applications.

Features

  • Measuring range : 0–25 mm
  • Type : H 03
  • Slide travel : 25 mm
  • Accuracy : in accordance with DIN 863-1
  • Resolution : 0.01 mm or 0.001 mm
  • Interchangeable movable SABI measuring contact : on request
  • Dimensions : 180 × 60 × 90 mm

Available versions

Resolution Item No.
0.01 mm 12400.2100
0.001 mm 12400.2200
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
