Adapter flange – DIN 55027 bayonet

CHF 627.00
CHF 627.00
excl. VAT
SKU: 341-503

Supplier : Heidi | Shop

Brand : Niederhauser

On order – delivery in 10–15 business days

Reply within 48 business hours

Product information

Description

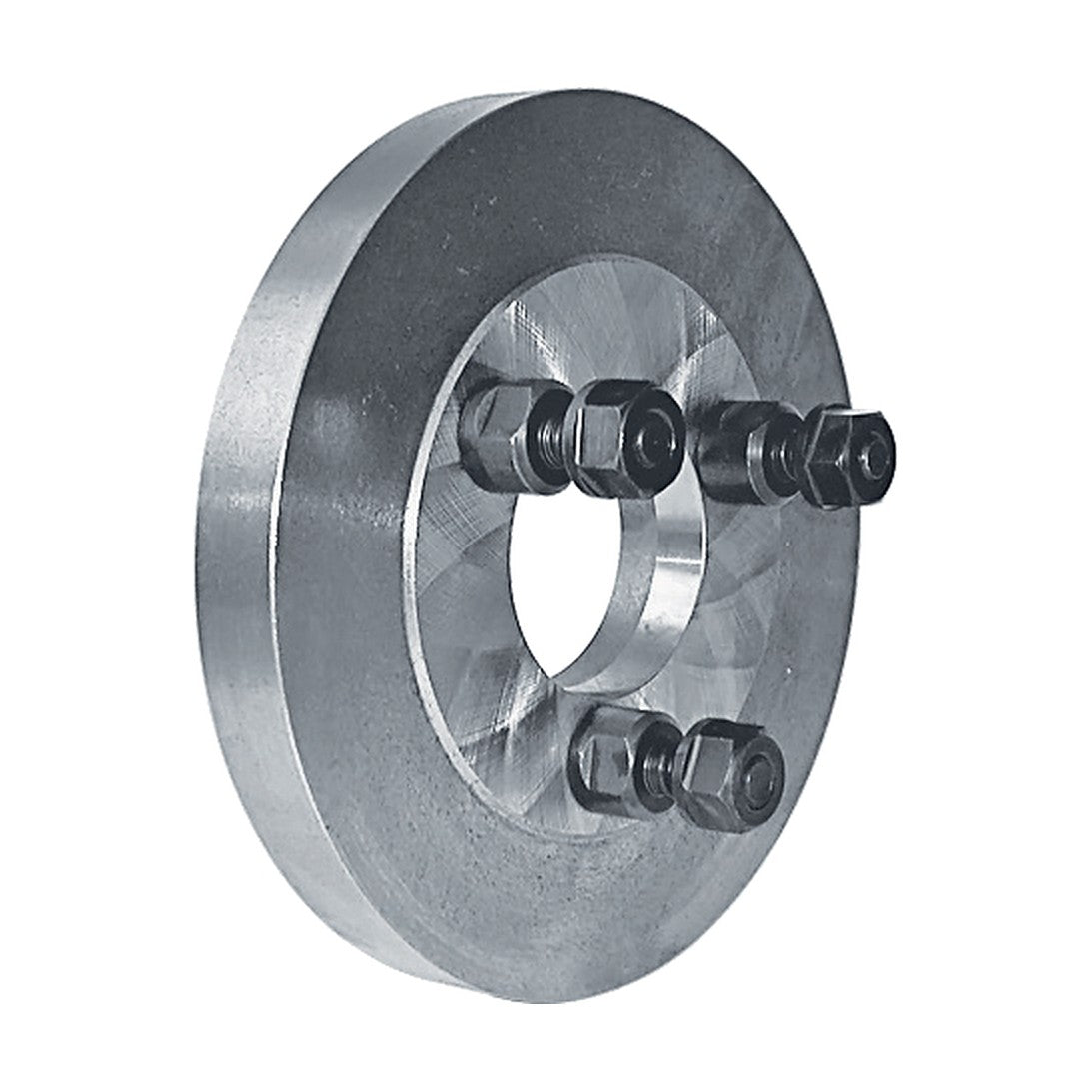

Niederhauser adapter flange for mounting a collet chuck on a spindle with bayonet DIN 55027 nose. Supplied machined on both sides and matched to the ordered chuck.

Good to know: The adapter flange is ordered in addition to the collet chuck, which is not included: it connects the chuck to the lathe spindle.

  • Mounting: bayonet DIN 55027 spindle nose, sizes B 3 to B 11
  • Body: cast iron, finish-machined on both sides
  • Compatible with: Niederhauser collet chucks CLC 28 / F 35, FNP / FNP-N / FNH / FNF, CLC 42 / F 48, CLC 60 / F 66
  • Ordering: choose the version matching your chuck, then the spindle nose size

Supplied with: studs and collar nuts.

VersionSizeArticle code
For chuck CLC 28 / F 35B 3341-503
For chuck CLC 28 / F 35B 4341-504
For chuck CLC 28 / F 35B 5341-505
For chuck CLC 28 / F 35B 6341-506
For chuck CLC 28 / F 35B 8341-508
For chuck CLC 28 / F 35B 11341-511
For chucks FNP / FNP-N / FNH / FNF and CLC 42 / F 48B 3341-603
For chucks FNP / FNP-N / FNH / FNF and CLC 42 / F 48B 4341-604
For chucks FNP / FNP-N / FNH / FNF and CLC 42 / F 48B 5341-605
For chucks FNP / FNP-N / FNH / FNF and CLC 42 / F 48B 6341-606
For chucks FNP / FNP-N / FNH / FNF and CLC 42 / F 48B 8341-608
For chucks FNP / FNP-N / FNH / FNF and CLC 42 / F 48B 11341-611
For chuck CLC 60 / F 66B 4341-704
For chuck CLC 60 / F 66B 5341-705
For chuck CLC 60 / F 66B 6341-706
For chuck CLC 60 / F 66B 8341-708
For chuck CLC 60 / F 66B 11341-711

Size B 3 not available for the CLC 60 / F 66 version.

Other sizes on request. Produced by Niederhauser.

Specifications

Main specifications

Machining and production operations
Tournage
Technical data sheet
Niederhauser — Chapitre 3 : mandrins à pince de serrage à main (catalogue FR)
Documentation
Download documentation (PDF)
