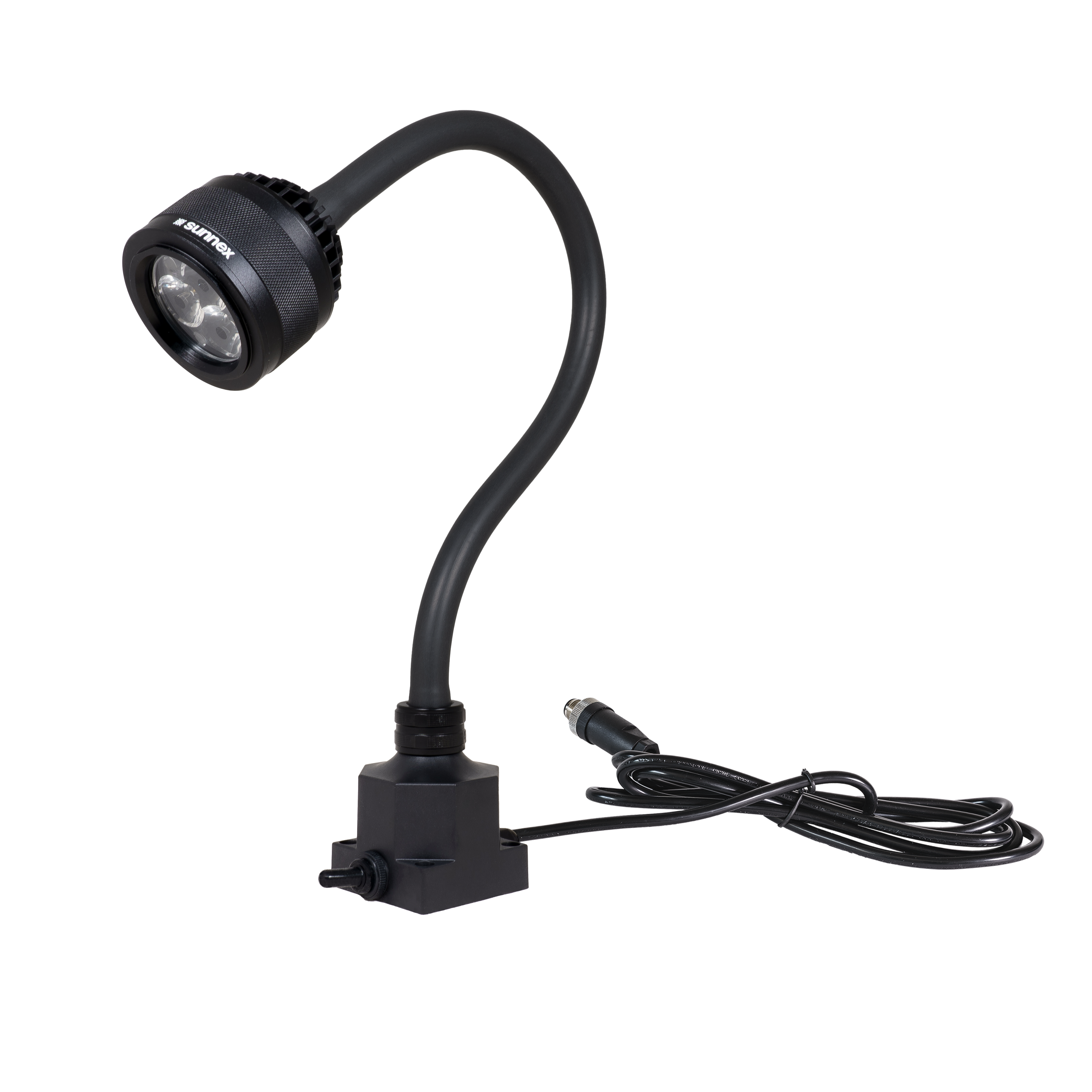

Projecteur LED Sunnex Solus 6 IP65 bras 500 mm, référence 33605

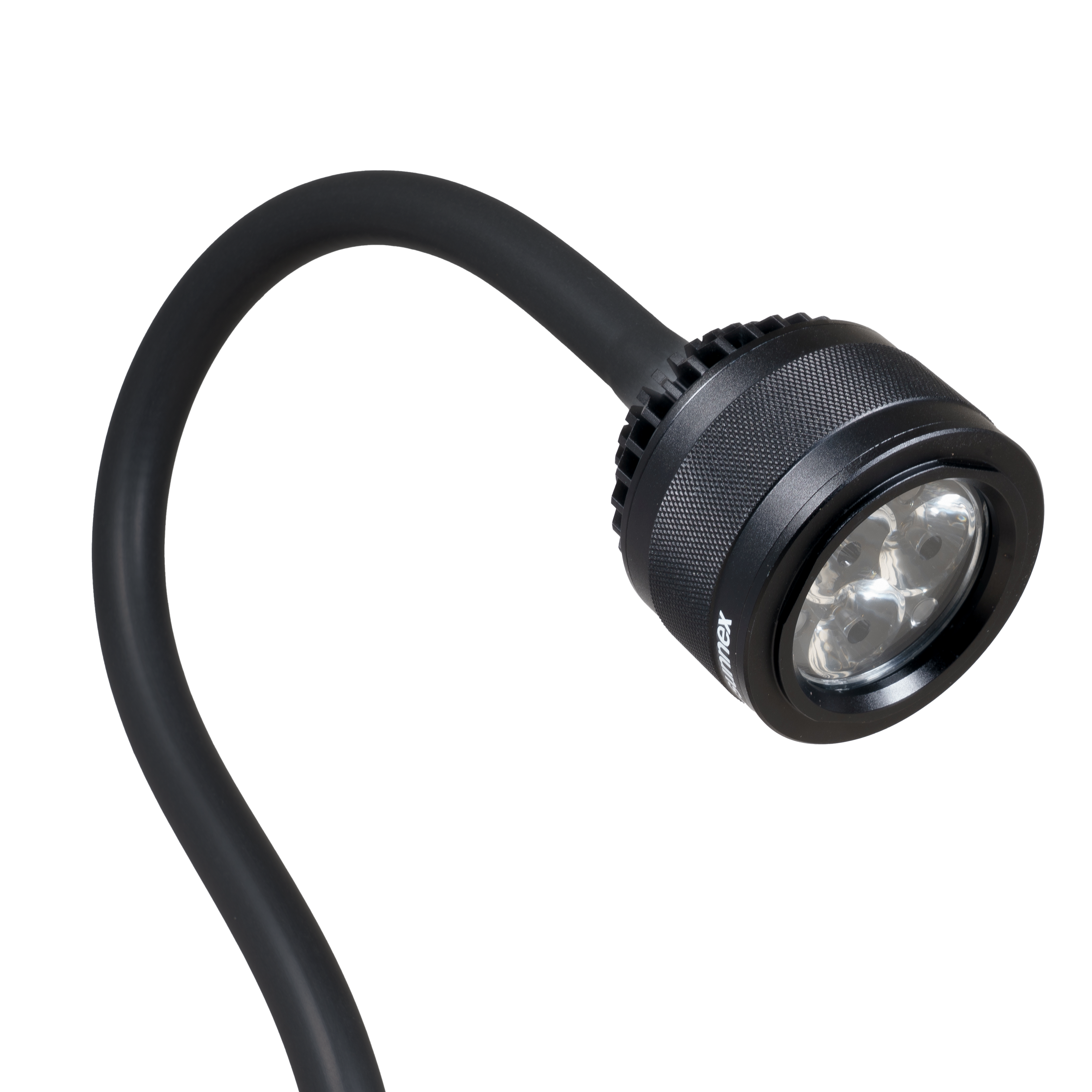

Sunnex Solus 6 33605 tête de lampe aluminium IP65

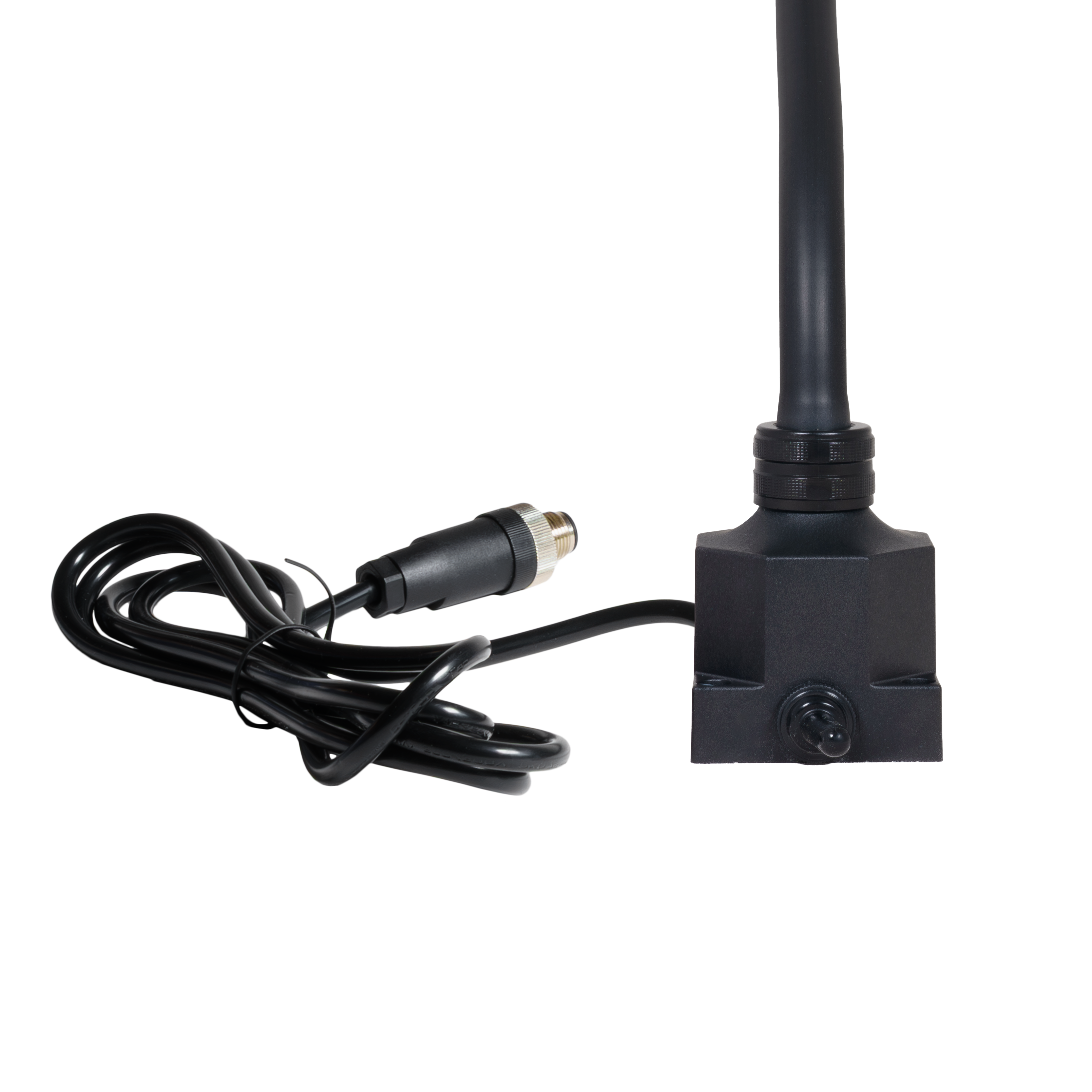

Sunnex Solus 6 33605 socle et connecteur M12

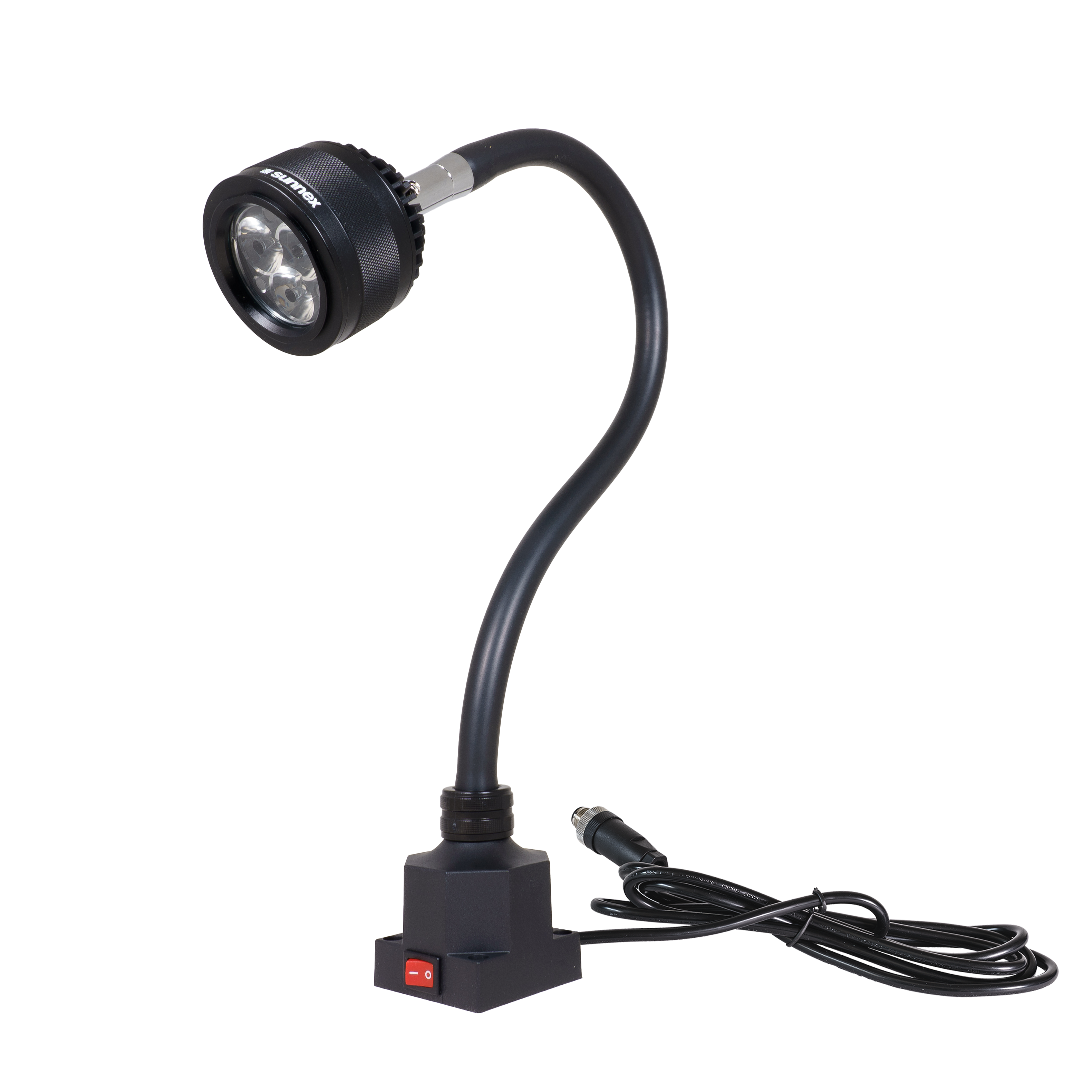

Projecteur LED Sunnex Solus 6 IP20 rotule bras 500 mm, référence 33610

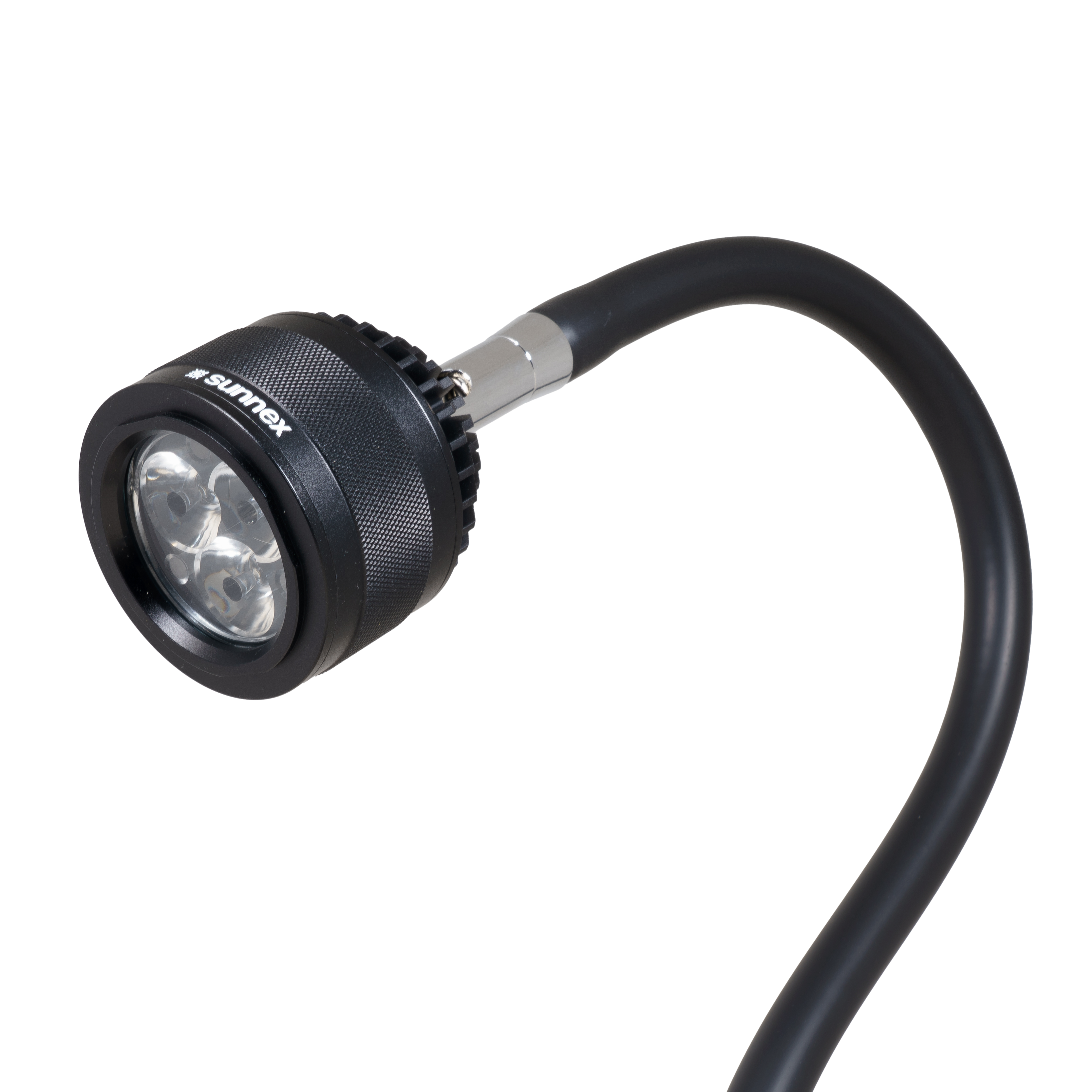

Sunnex Solus 6 33610 tête de lampe avec rotule

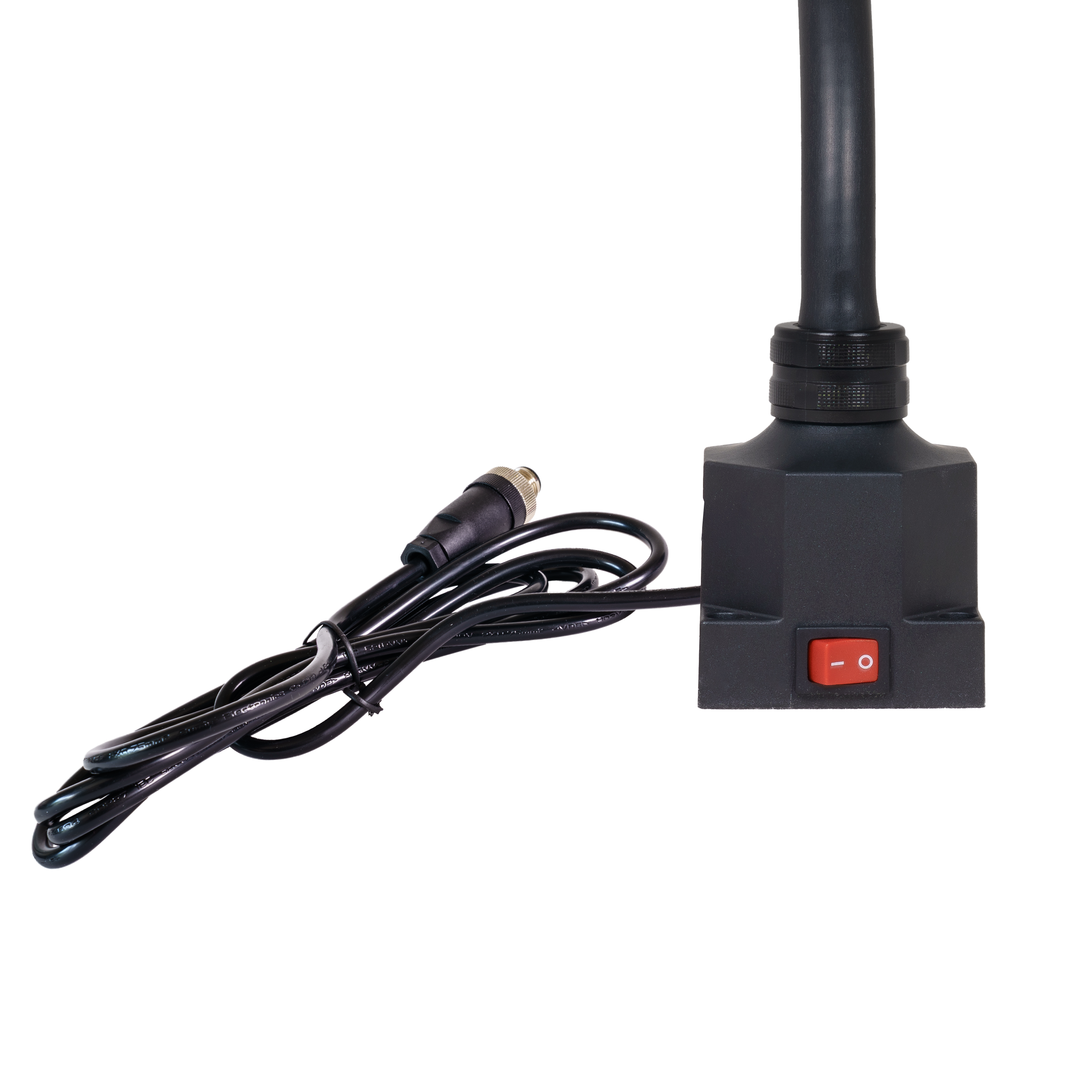

Sunnex Solus 6 33610 socle et connecteur M12

LED Spotlight Solus 6 Sunnex

CHF 285.00
CHF 285.00
excl. VAT
SKU: 33605

Supplier : Sunnex

Brand : Sunnex

On order – delivery in 5–7 business days

Reply within 48 business hours

Product information

Description

Focused spotlight for demanding industrial environments. The IP65 version resists dust and water jets, which suits it to grinders, lathes, drilling machines and workstations exposed to coolant.

At 5.5 W it delivers 390 Lm and 39 500 Lx at 500 mm with the factory-fitted 10° optic. That is the highest illuminance in the flexible arm range, concentrated on a small area: following a cutting edge, checking a surface finish, reading a dial gauge deep inside a machine. 4000 K and CRI 92 give neutral light that does not distort how materials look. The IP20 version with joint is intended for dry workstations where precise aiming matters more than sealing.

Technical specifications

Supply voltage12 to 24 V AC/DC
Power consumption5.5 W
Light output390 Lm
Illuminance39 500 Lx at 500 mm (10° optic)
Colour temperature4000 K
Colour rendering indexCRI 92
Beam angle10° standard, 25° and 40° as accessory
Arm length500 mm
IP ratingIP65 or IP20 depending on version
Protection classIII
ConnectorM12 male 4-pin, A-code
Connection cable1.9 m H05VV-F
Technical lifespan> 50 000 h
ColourBlack
Weight1.5 kg

Power supply. Direct connection to the machine 24 V. Mains adapter 230 V part no. 33920 optional.

Compatible mounts. Magnetic base Ø110 mm (12010), C-clamp (14020), wall mount (14030), table base (14015).

Documentation
Download documentation (PDF)
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
