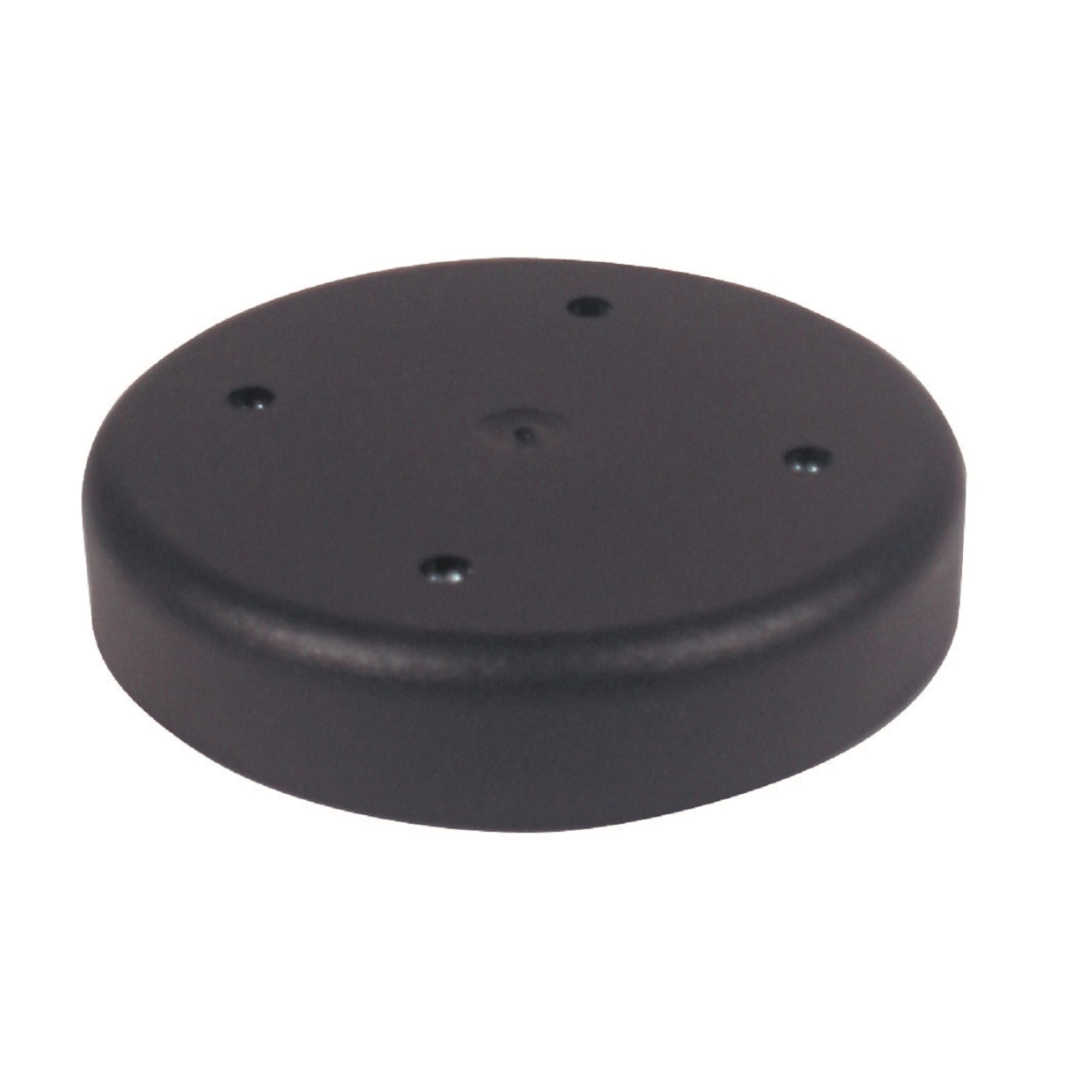

Socle magnétique Sunnex Ø90 mm pour lampes Pluto et Tellus, référence 14000

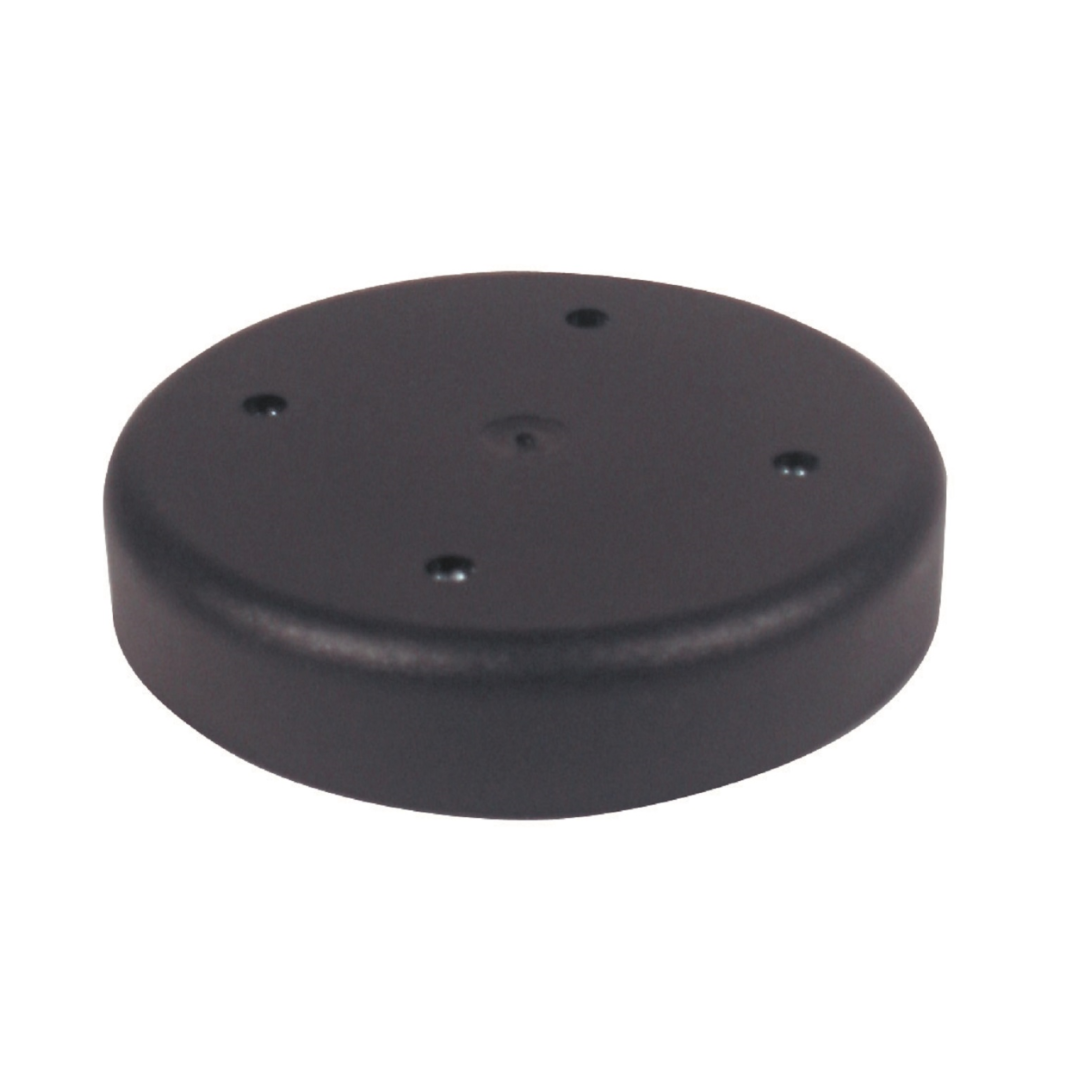

Socle magnétique Sunnex Ø110 mm pour Luxor, Solus 6 et CL-LED, référence 12010

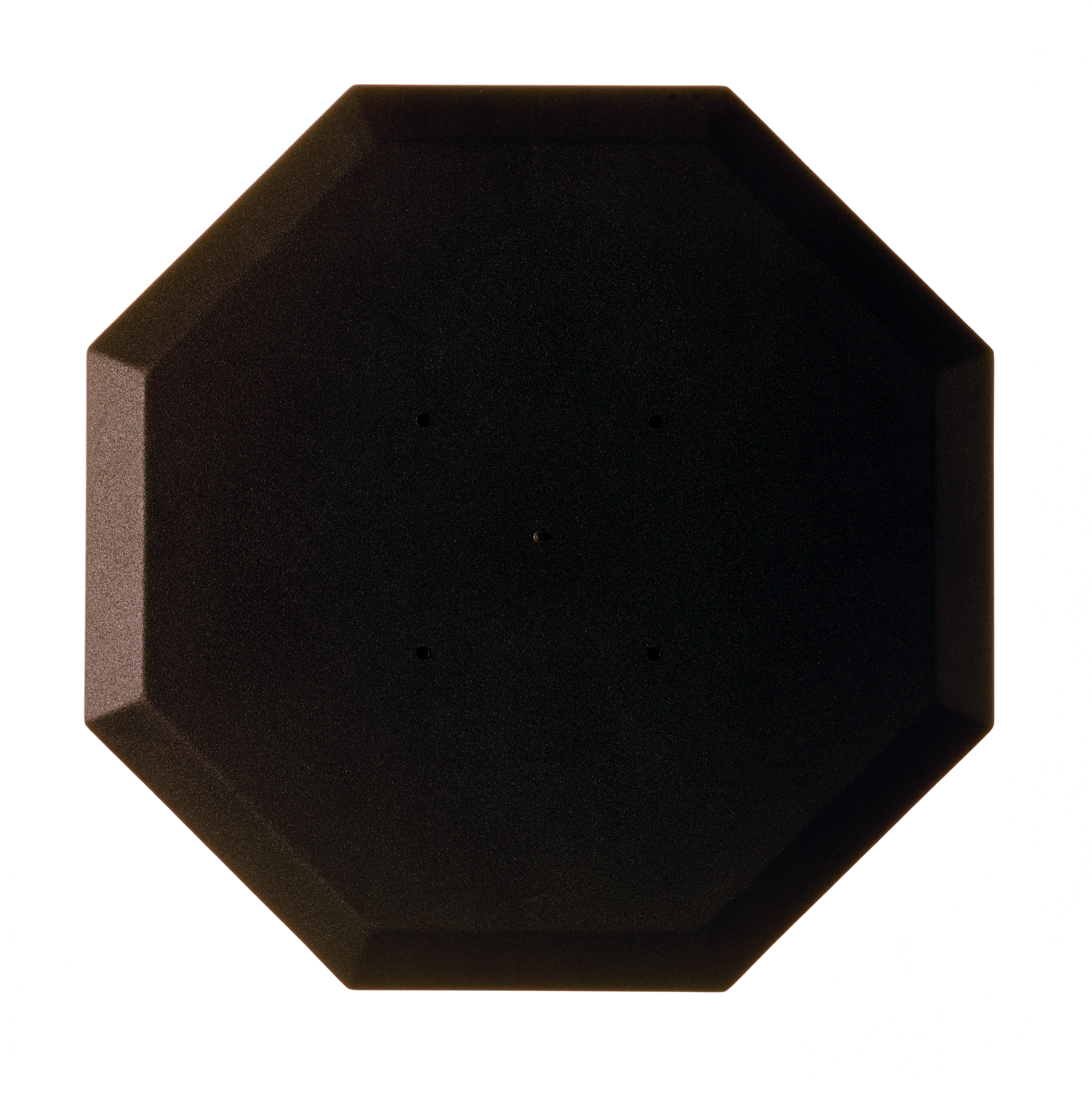

Socle de bureau hexagonal Sunnex Ø200 mm noir, référence 14015

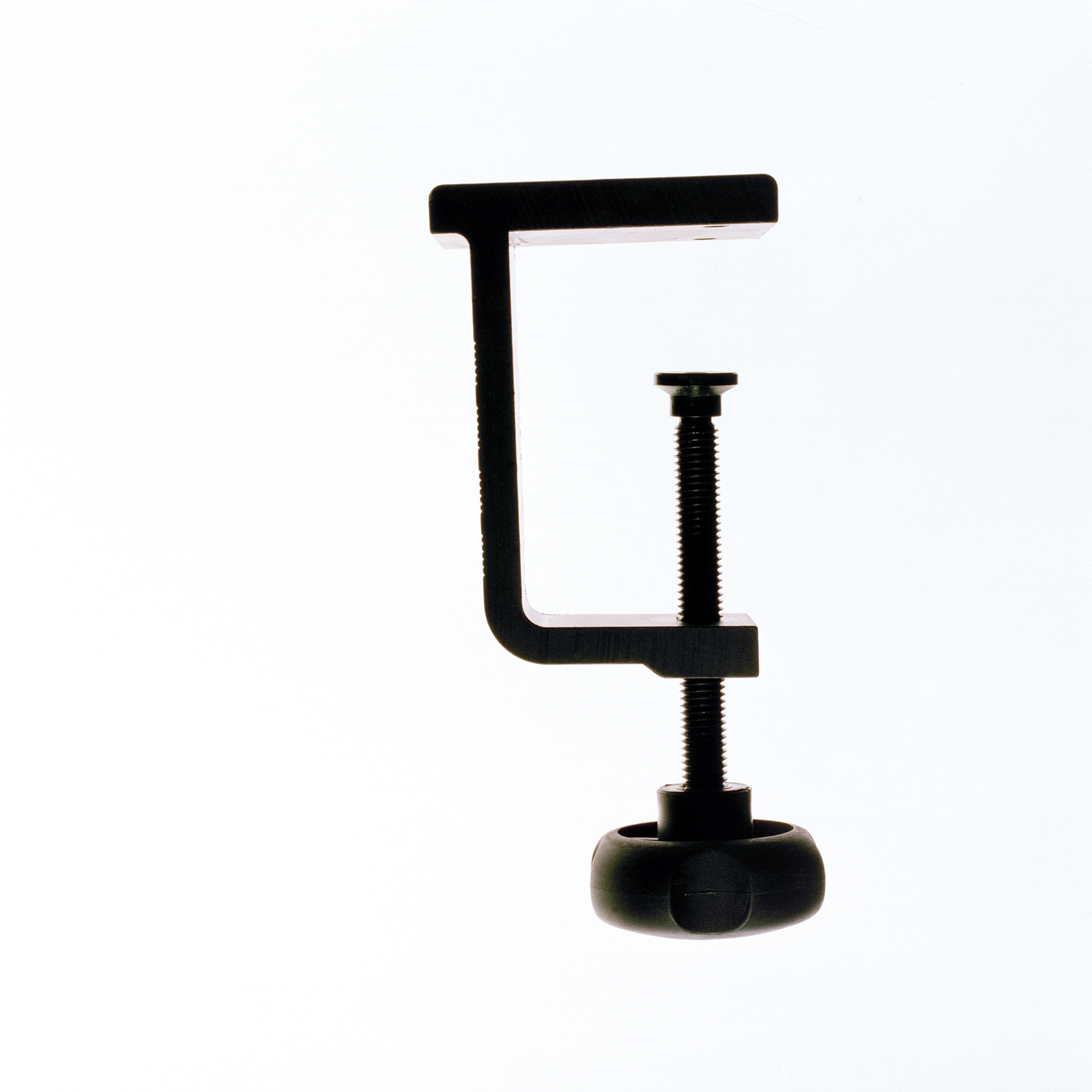

Pince en C Sunnex serrage max 42 mm noire, référence 14020

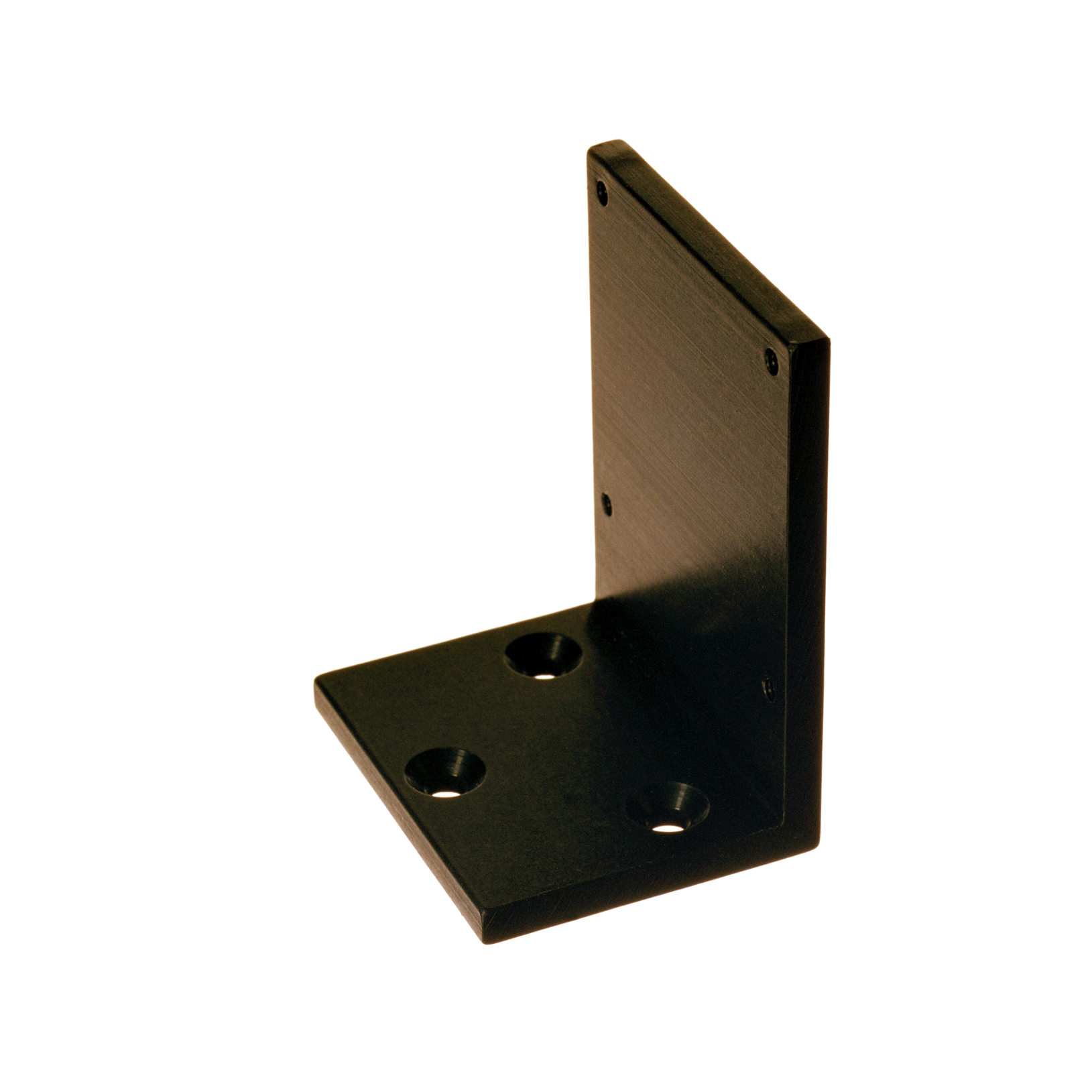

Support mural Sunnex 50 x 80 mm aluminium anodisé noir, référence 14030
Socle magnétique Sunnex Ø90 mm pour lampes Pluto et Tellus, référence 14000
Socle magnétique Sunnex Ø110 mm pour Luxor, Solus 6 et CL-LED, référence 12010
Socle de bureau hexagonal Sunnex Ø200 mm noir, référence 14015
Pince en C Sunnex serrage max 42 mm noire, référence 14020
Support mural Sunnex 50 x 80 mm aluminium anodisé noir, référence 14030

Bases and Mounts Sunnex

CHF 30.00
CHF 30.00
excl. VAT
SKU: 14000

Supplier : Sunnex

Brand : Sunnex

On order – delivery in 5–7 business days

Reply within 48 business hours

Product information

Description

All Sunnex lights with a flexible arm are supplied with a standard base in the square 50 hole pattern with M4 threads. These five mounts share that same interface and fit straight onto it, screws included.

Mind the diameter of the magnetic base, which differs from one light to another. The Ø90 mm is meant for the lighter models, the Ø110 mm for the heavier and more powerful ones. An undersized base will not hold the light in position on a machine that vibrates.

Selection guide

MountSuitable forSpecificationsPart no.
Magnetic base Ø90 mmPluto, Tellus, Lumius, LSHeight 20 mm, M4 hole pattern 50 mm, 0.55 kg14000
Magnetic base Ø110 mmLuxor, Solus 6, Solus 9, CL-LEDReinforced holding force, 0.88 kg12010
Table base Ø200 mmAll lights with standard baseHexagonal, height 30 mm, 3.71 kg, free standing, no drilling14015
C-clampAll lights with standard baseMax grip 42 mm, height 50 mm, 0.22 kg14020
Wall mountAll lights with standard base50 x 80 mm, 79.5 mm reach, black anodised aluminium, 0.15 kg14030

Screws M4 x 20 (4x) included, 4.0 x 25 for the table base. Wall mount powder coated RAL 9002 available on request under part no. 14031.

Documentation
Download documentation (PDF)
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
