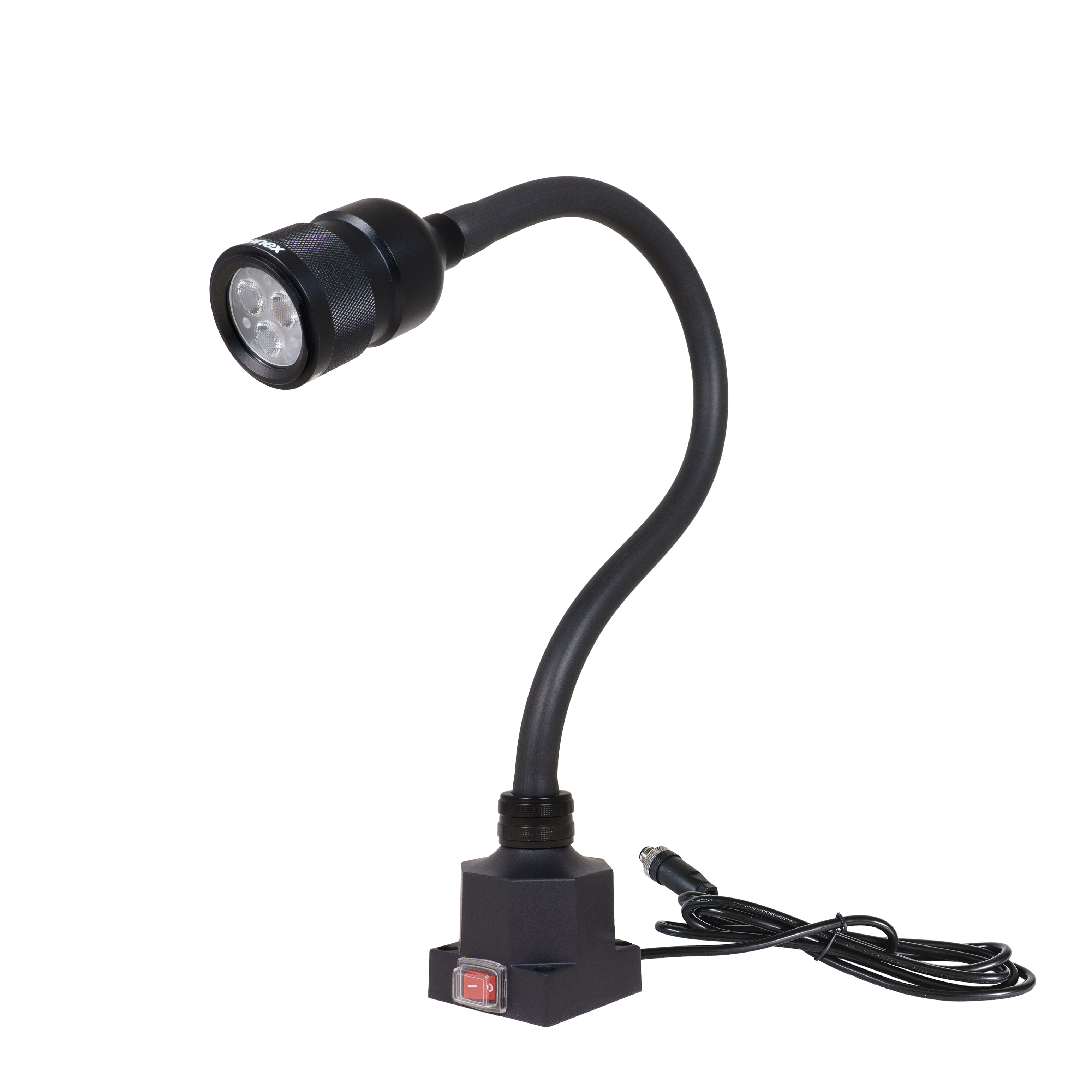

Lampe LED Sunnex Tellus IP43 bras flexible 500 mm, référence 34100

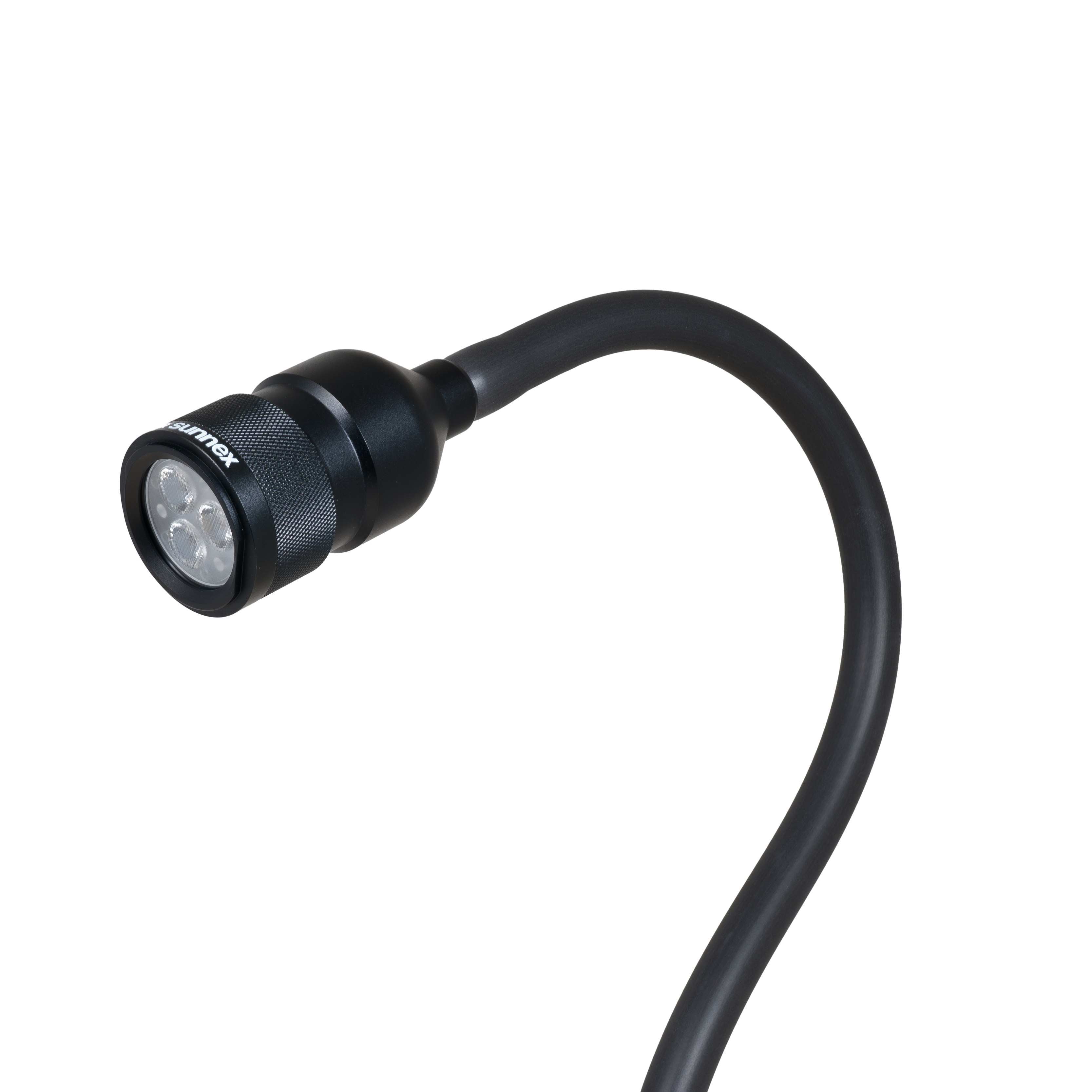

Sunnex Tellus 34100 tête de lampe aluminium

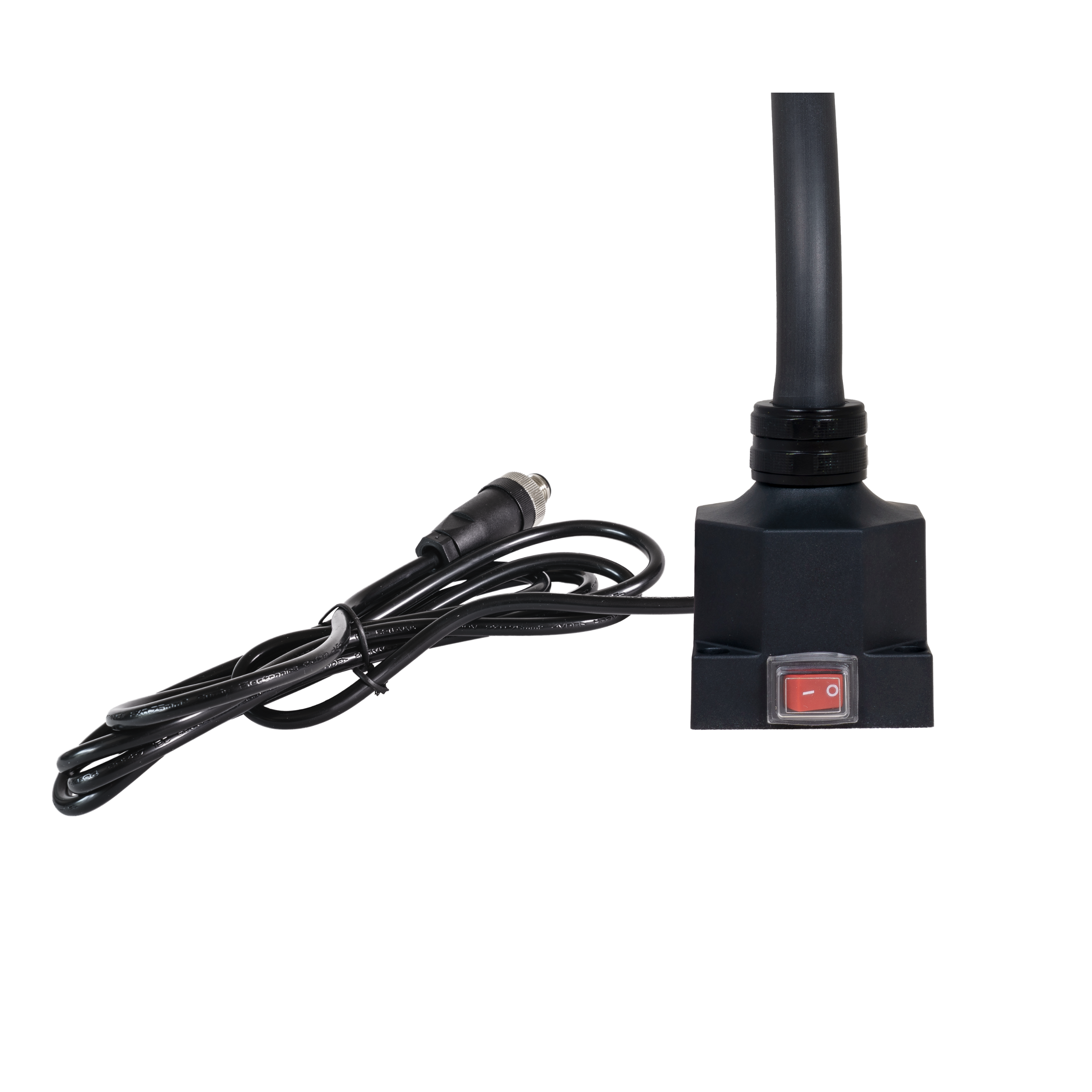

Sunnex Tellus 34100 socle et connecteur M12

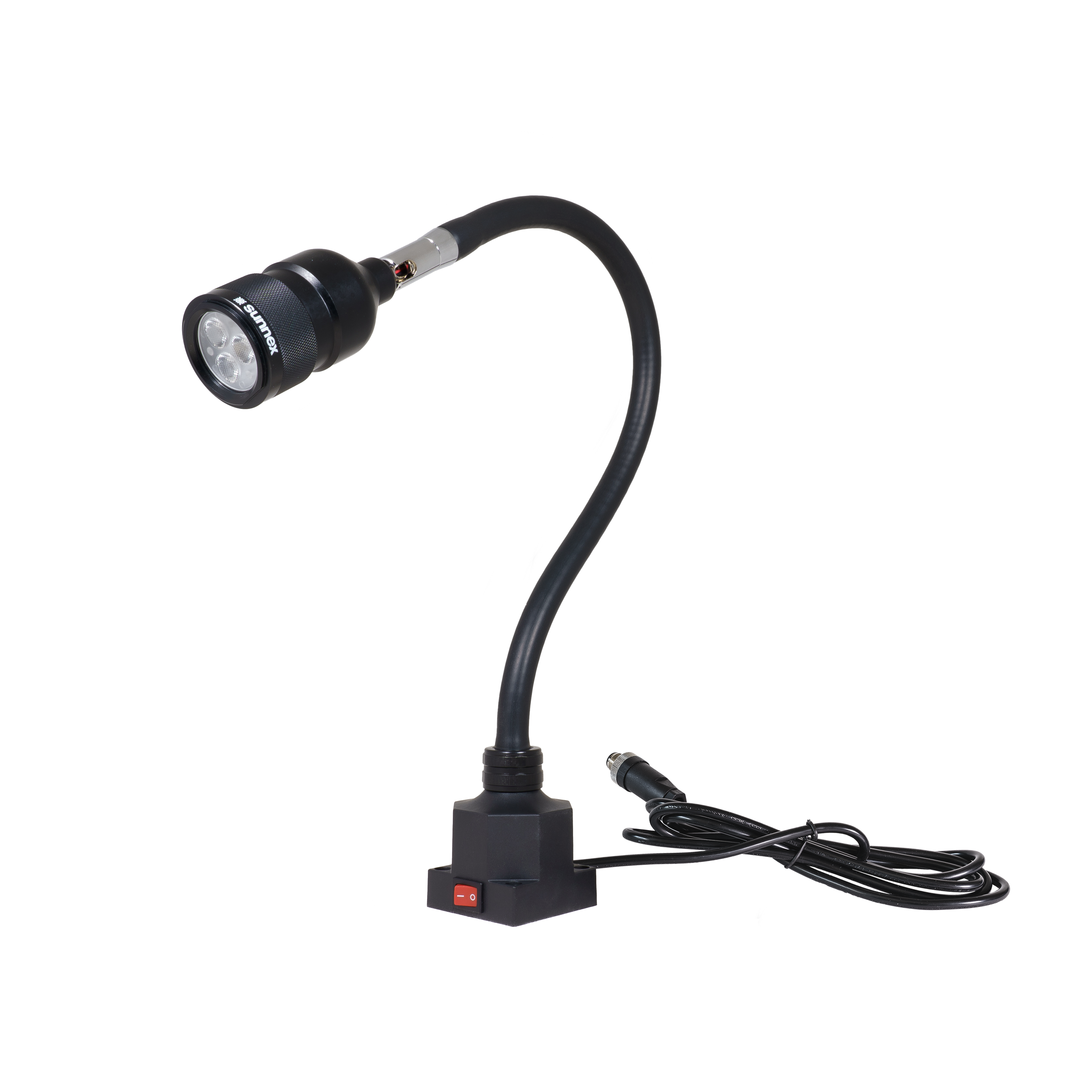

Lampe LED Sunnex Tellus IP20 rotule 500 mm, référence 34110

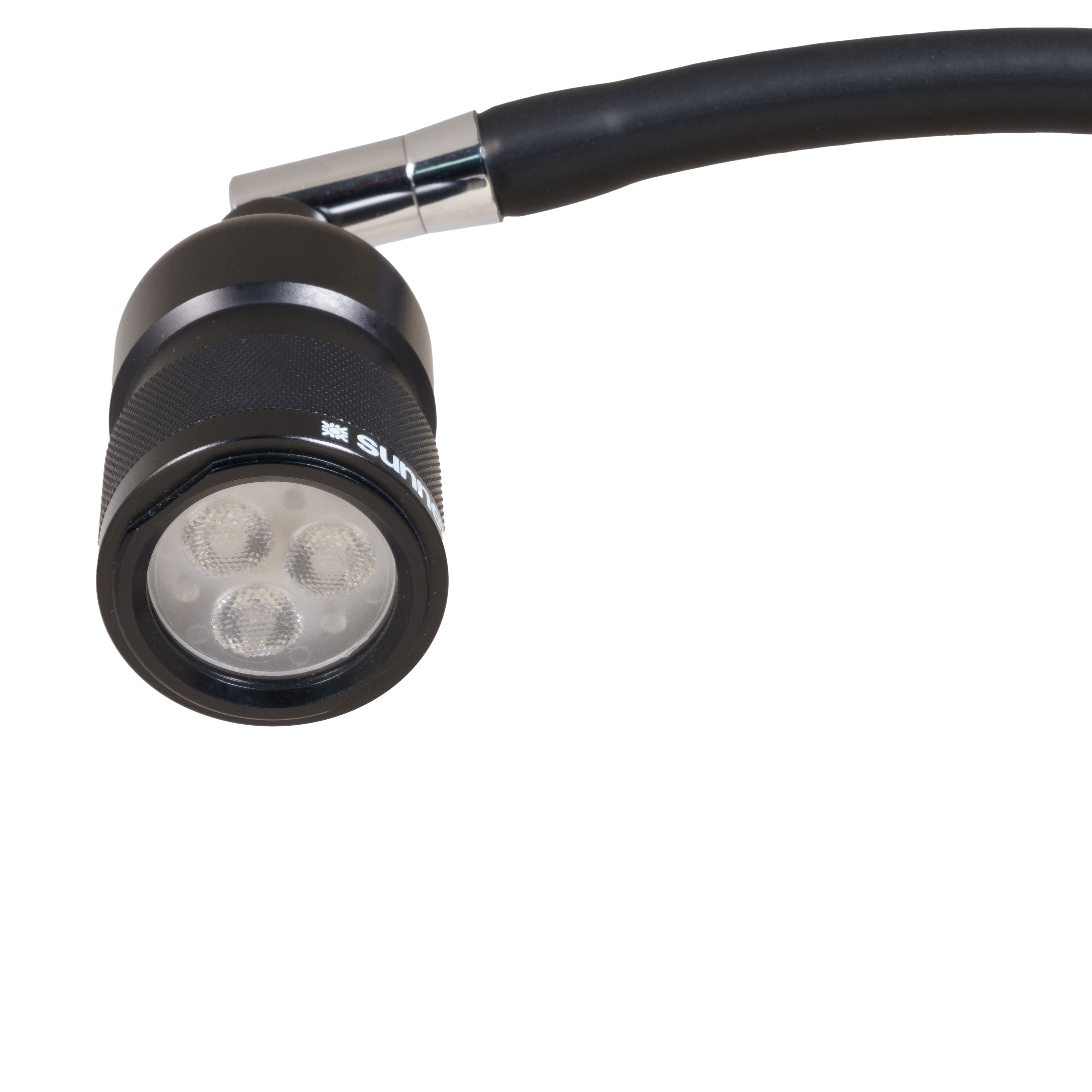

Sunnex Tellus 34110 tête de lampe avec rotule

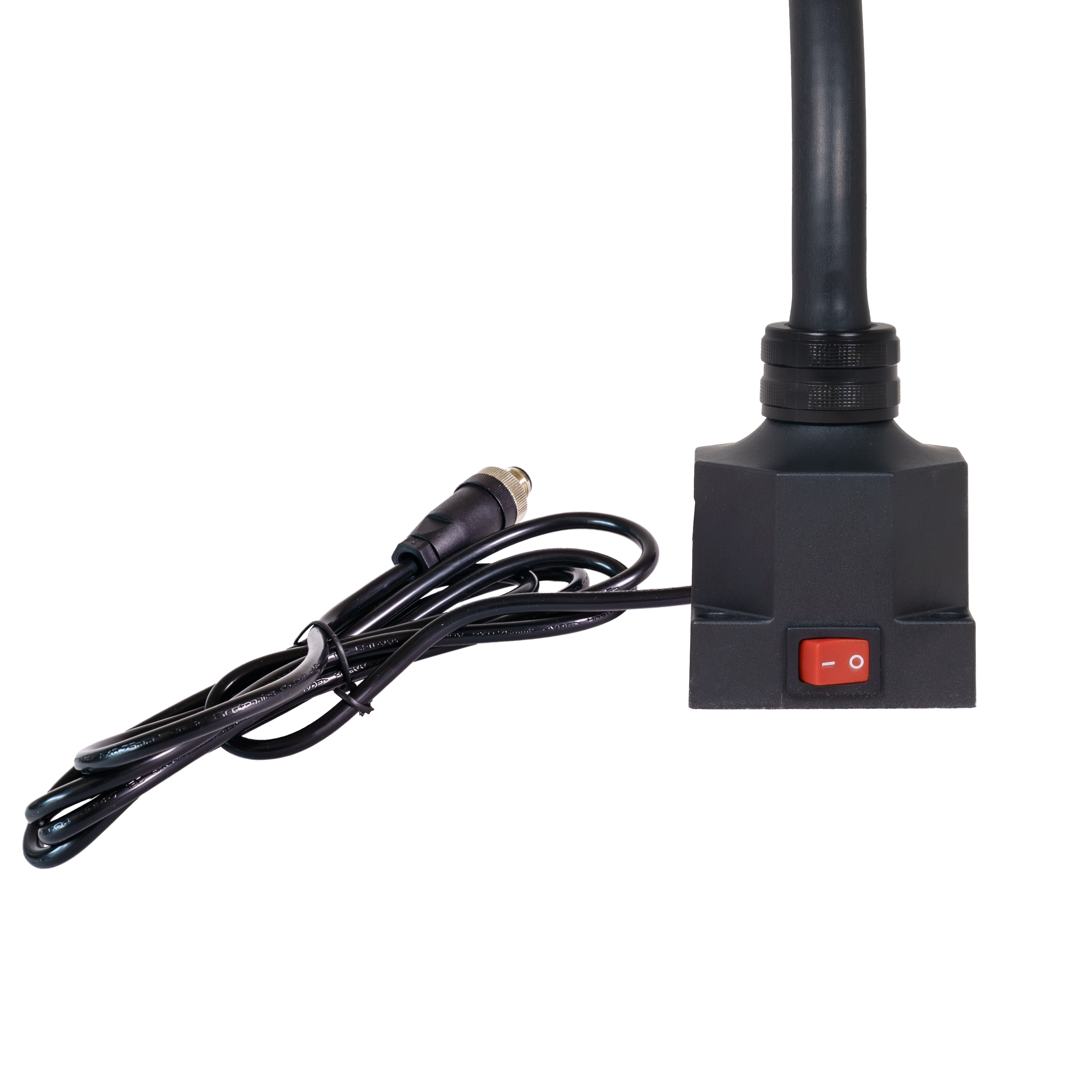

Sunnex Tellus 34110 socle et connecteur M12

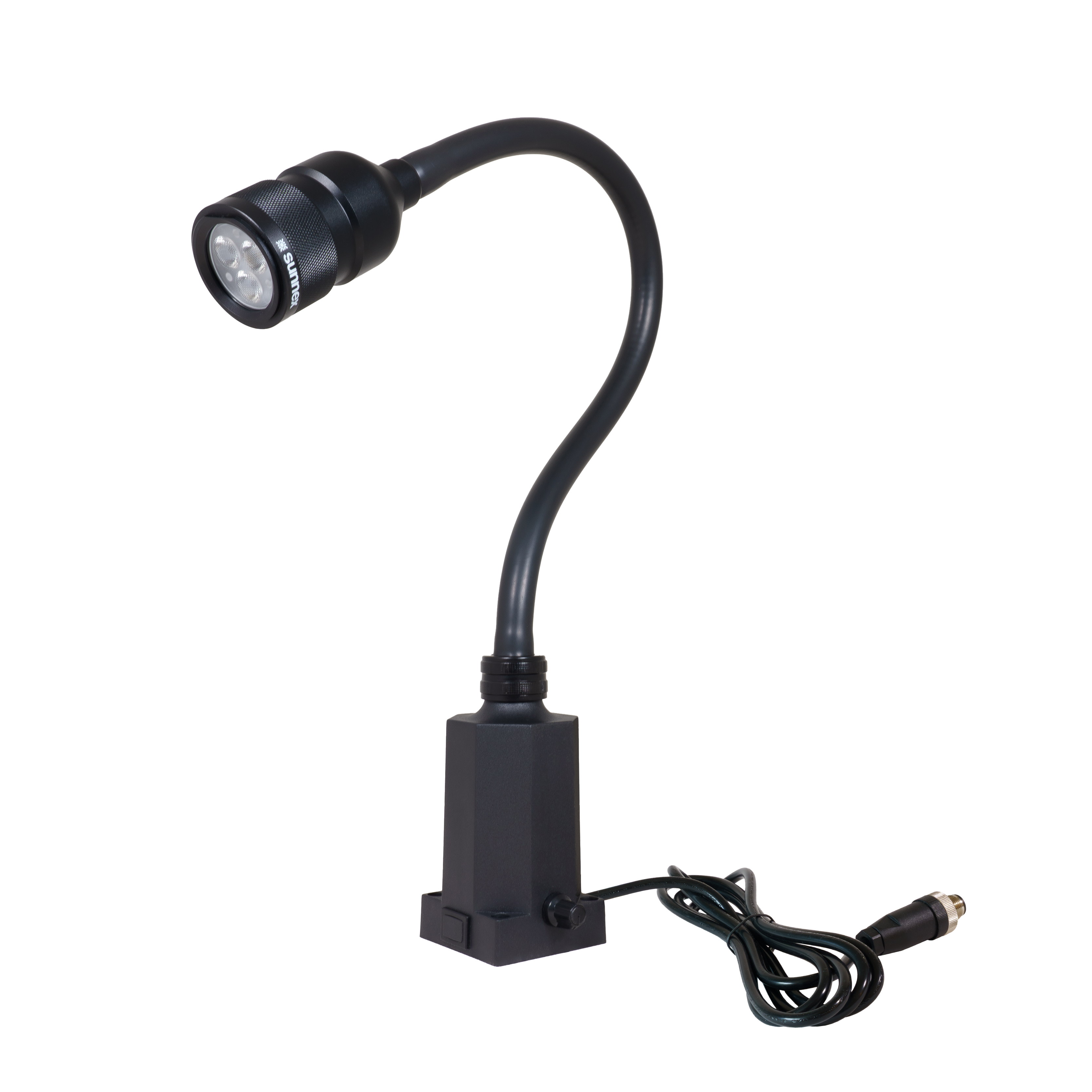

Lampe LED Sunnex Tellus IP20 gradable 500 mm, référence 34300

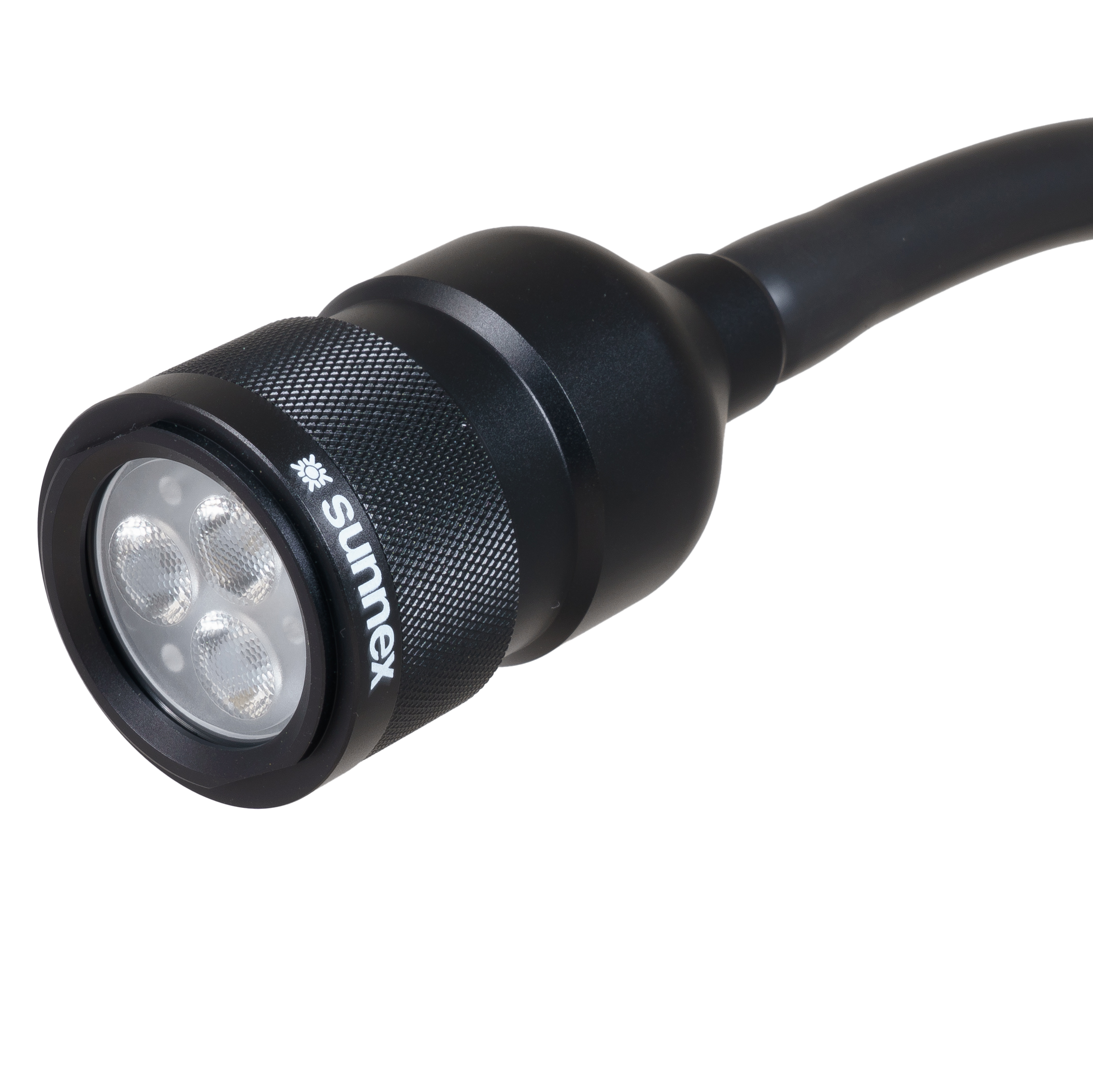

Sunnex Tellus 34300 tête de lampe version gradable

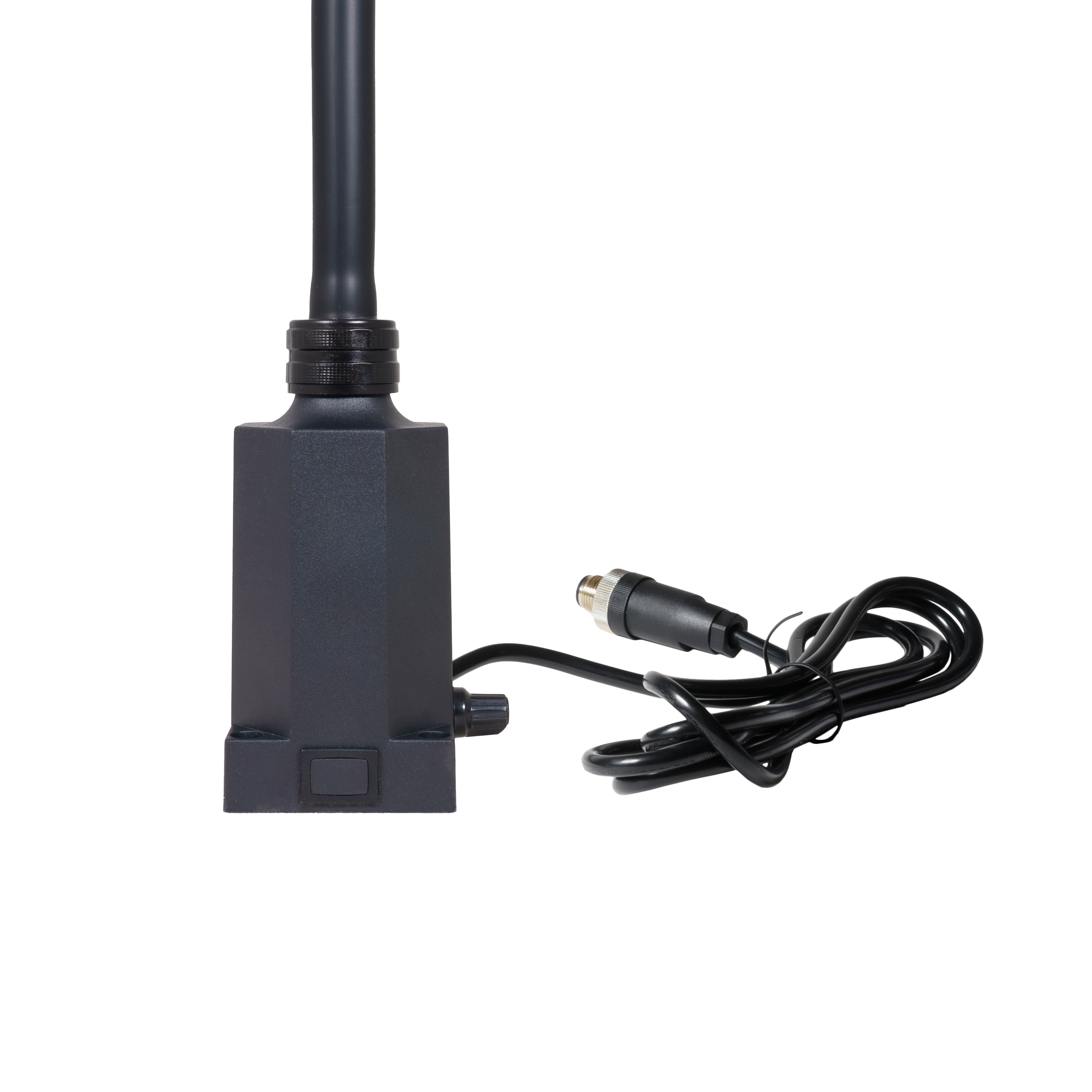

Sunnex Tellus 34300 socle avec variateur
Lampe LED Sunnex Tellus IP43 bras flexible 500 mm, référence 34100
Sunnex Tellus 34100 tête de lampe aluminium
Sunnex Tellus 34100 socle et connecteur M12
Lampe LED Sunnex Tellus IP20 rotule 500 mm, référence 34110
Sunnex Tellus 34110 tête de lampe avec rotule
Sunnex Tellus 34110 socle et connecteur M12
Lampe LED Sunnex Tellus IP20 gradable 500 mm, référence 34300
Sunnex Tellus 34300 tête de lampe version gradable
Sunnex Tellus 34300 socle avec variateur

LED Task Light Tellus Sunnex

CHF 205.00
CHF 205.00
excl. VAT
SKU: 34100

Supplier : Sunnex

Brand : Sunnex

On order – delivery in 5–7 business days

Reply within 48 business hours

Product information

Description

Versatile LED task light for machining, inspection and bench work. Its colour rendering index above 92 reproduces shades faithfully, where most workshop lamps sit between 70 and 80. Aluminium lamp head, rugged 500 mm flexible arm, 300 Lm and 10 540 Lx at 500 mm.

Three versions: IP43 for general machining, IP20 with joint to aim the beam precisely, and IP20 dimmable to set the light level at the workstation, useful on reflective surfaces and during long sessions.

Technical specifications

Supply voltage12 to 24 V AC/DC
Power consumption3.3 W
Light output300 Lm
Illuminance10 540 Lx at 500 mm (15° optic)
Colour temperature4000 K
Colour rendering indexCRI > 92
Beam angle15° standard, 30° on the dimmable version
Arm length500 mm
IP ratingIP43 or IP20 depending on version
Protection classIII
ConnectorM12 male 4-pin, A-code
Connection cable1.9 m H05VV-F
Technical lifespan> 50 000 h
ColourBlack
Weight1.0 to 1.2 kg depending on version

Power supply. Direct connection to the machine 24 V. Mains adapter 230 V part no. 33920 optional.

Compatible mounts. Magnetic base Ø90 mm (14000), C-clamp (14020), wall mount (14030), table base (14015).

A 40 mm spot version without arm, for direct mounting inside a machine housing, is available separately under part no. 34160. Arm lengths of 700 mm and IP65 versions are available on request.

Documentation
Download documentation (PDF)
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
