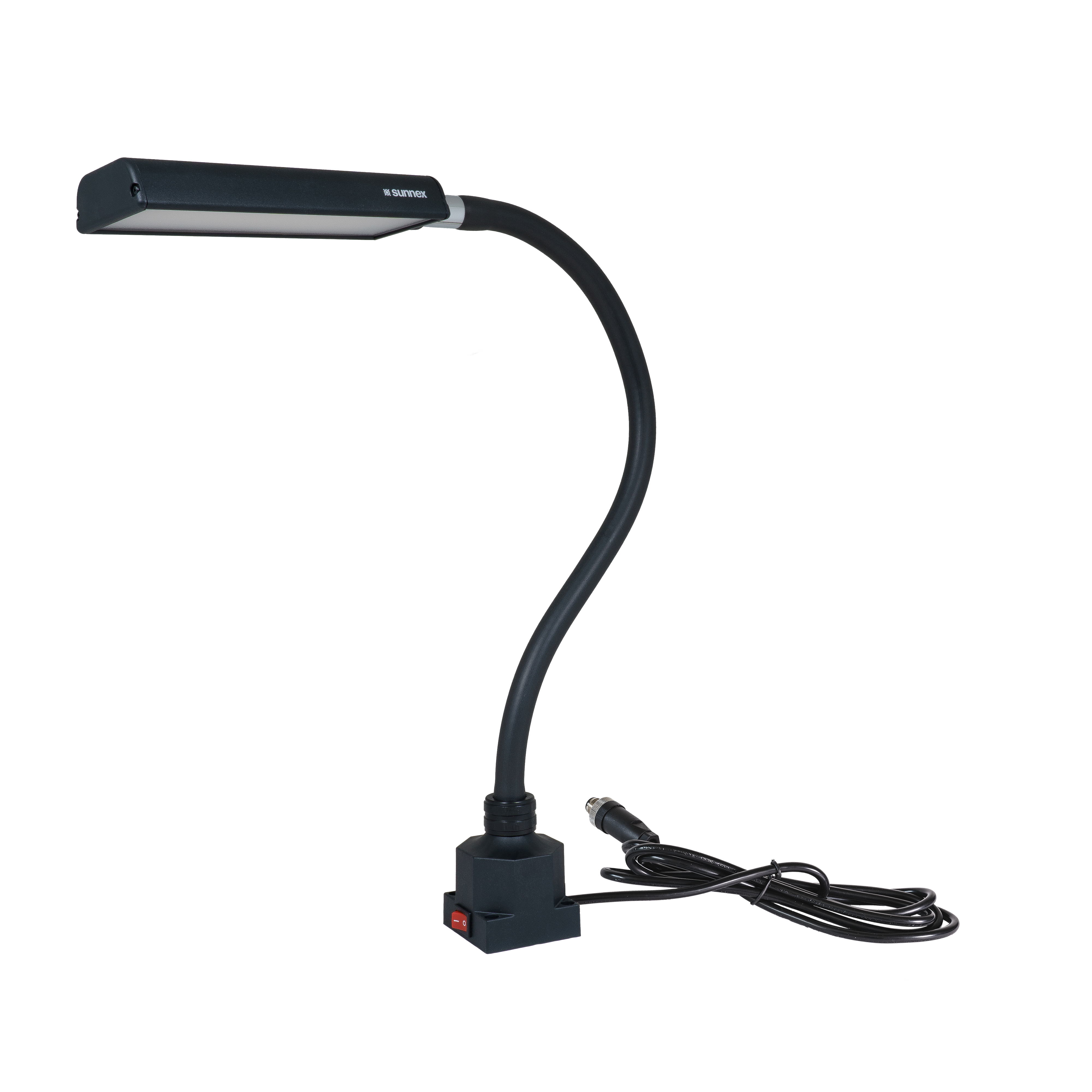

Lampe LED d'établi Sunnex CL-LED 11 W bras 500 mm, référence 35100

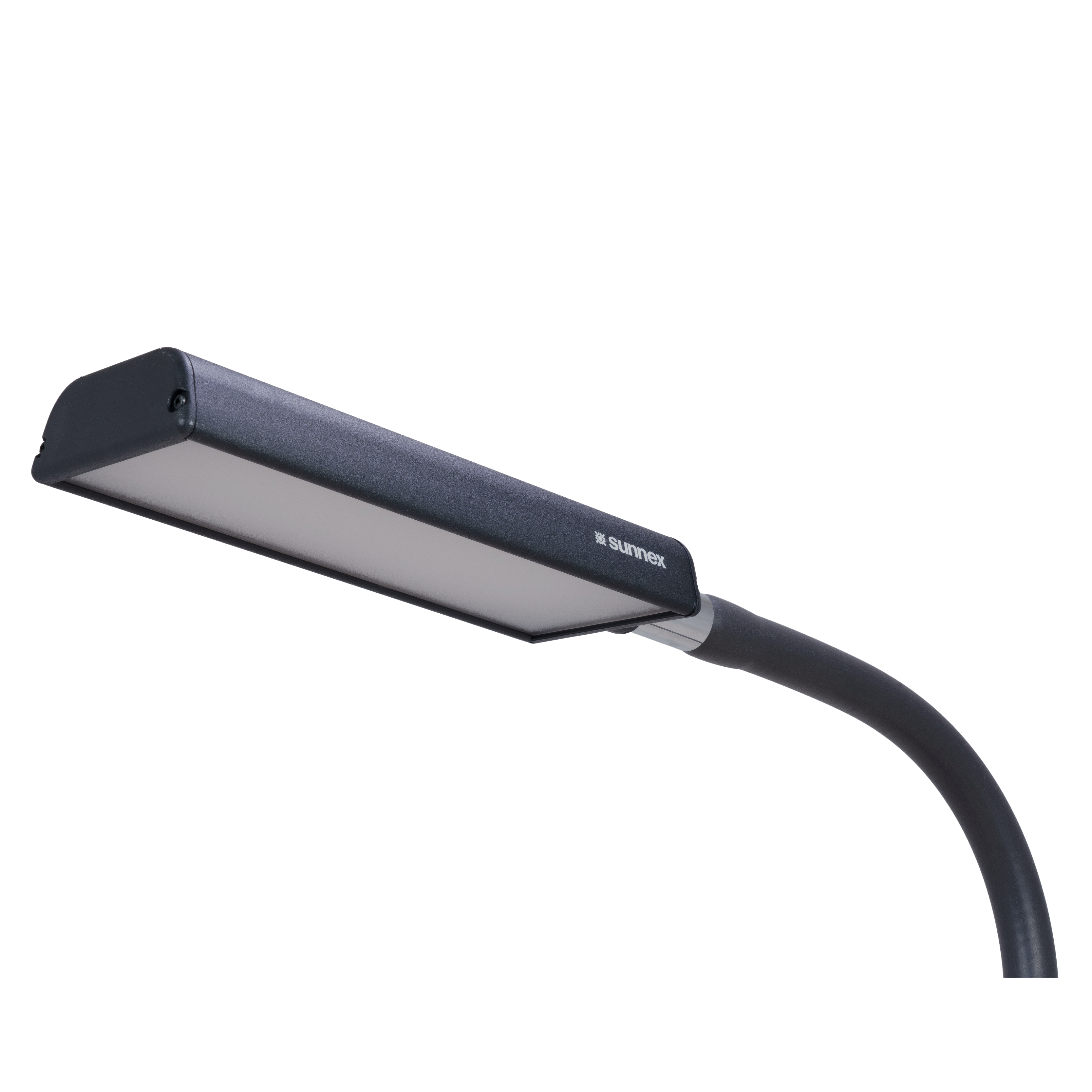

Sunnex CL-LED 35100 tête linéaire avec diffuseur encastré

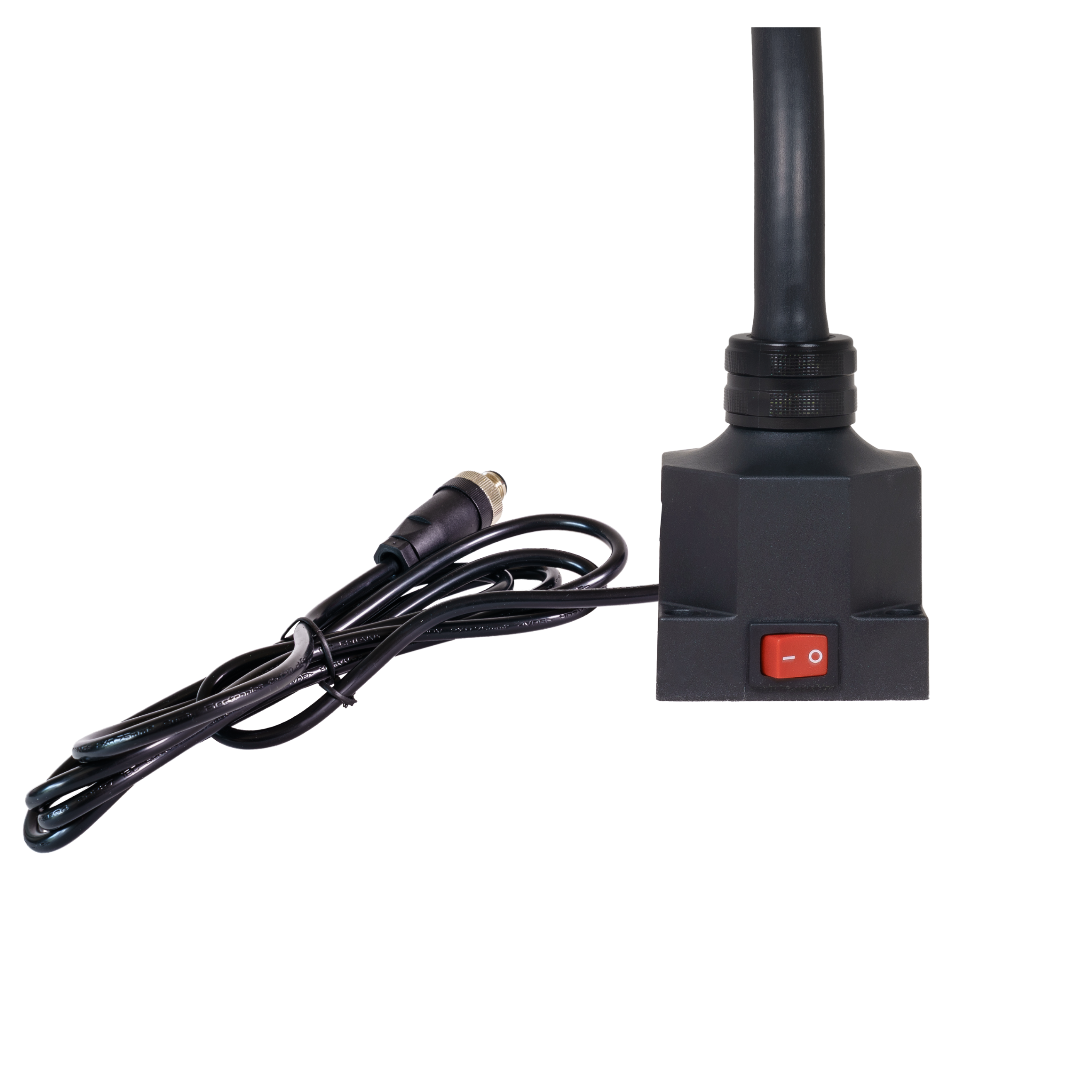

Sunnex CL-LED 35100 socle et connecteur M12

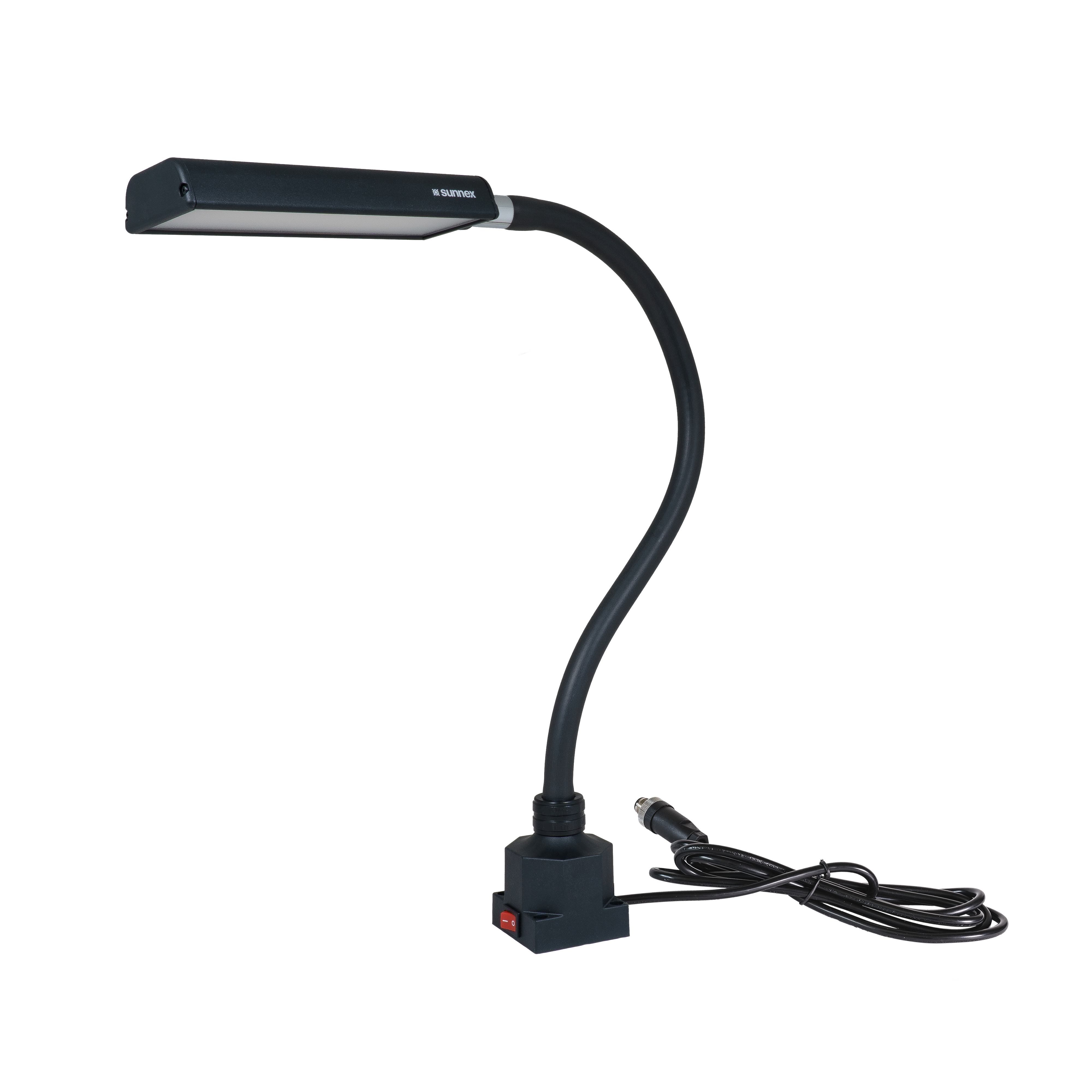

Lampe LED d'établi Sunnex CL-LED 11 W bras 700 mm, référence 35120

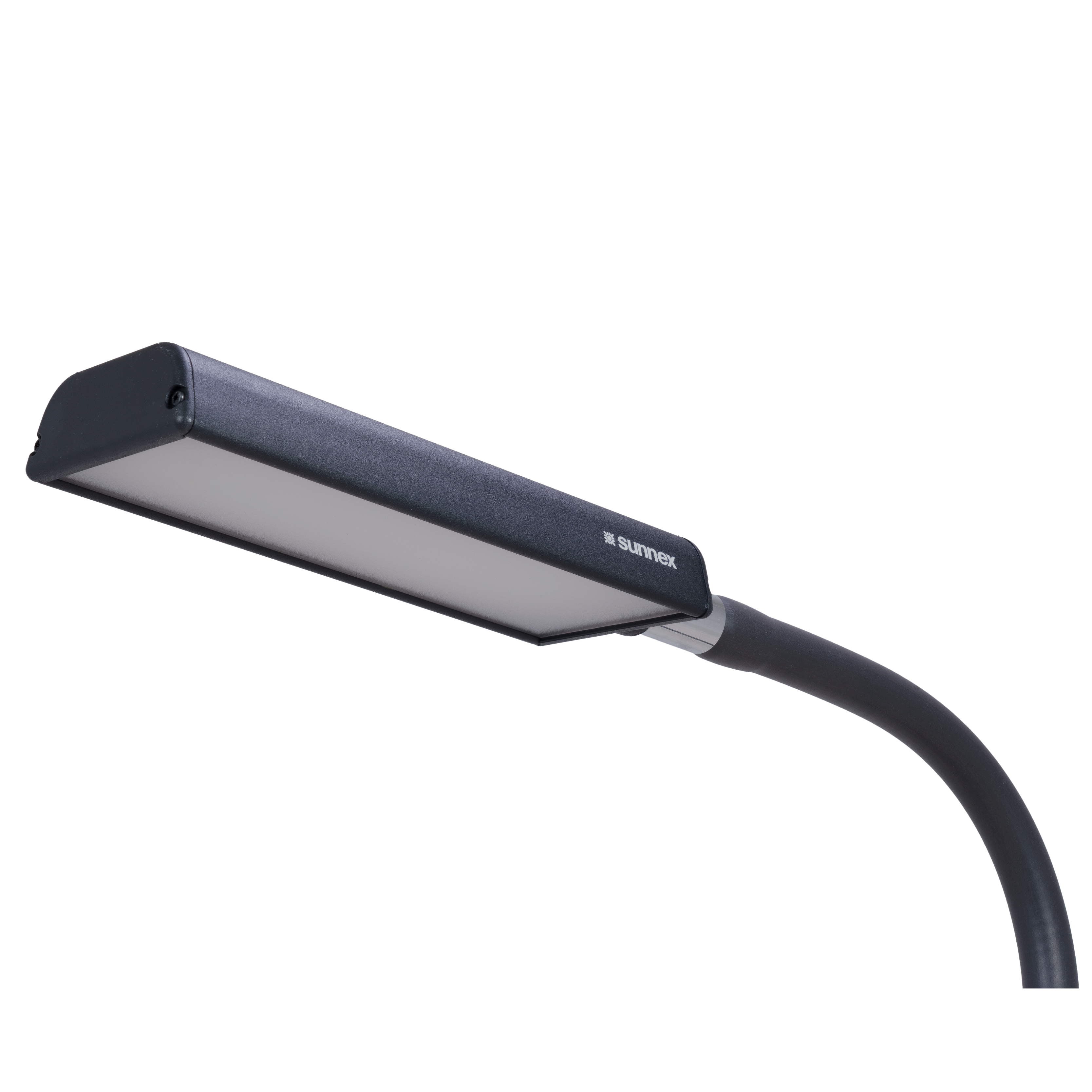

Sunnex CL-LED 35120 tête linéaire vue rapprochée

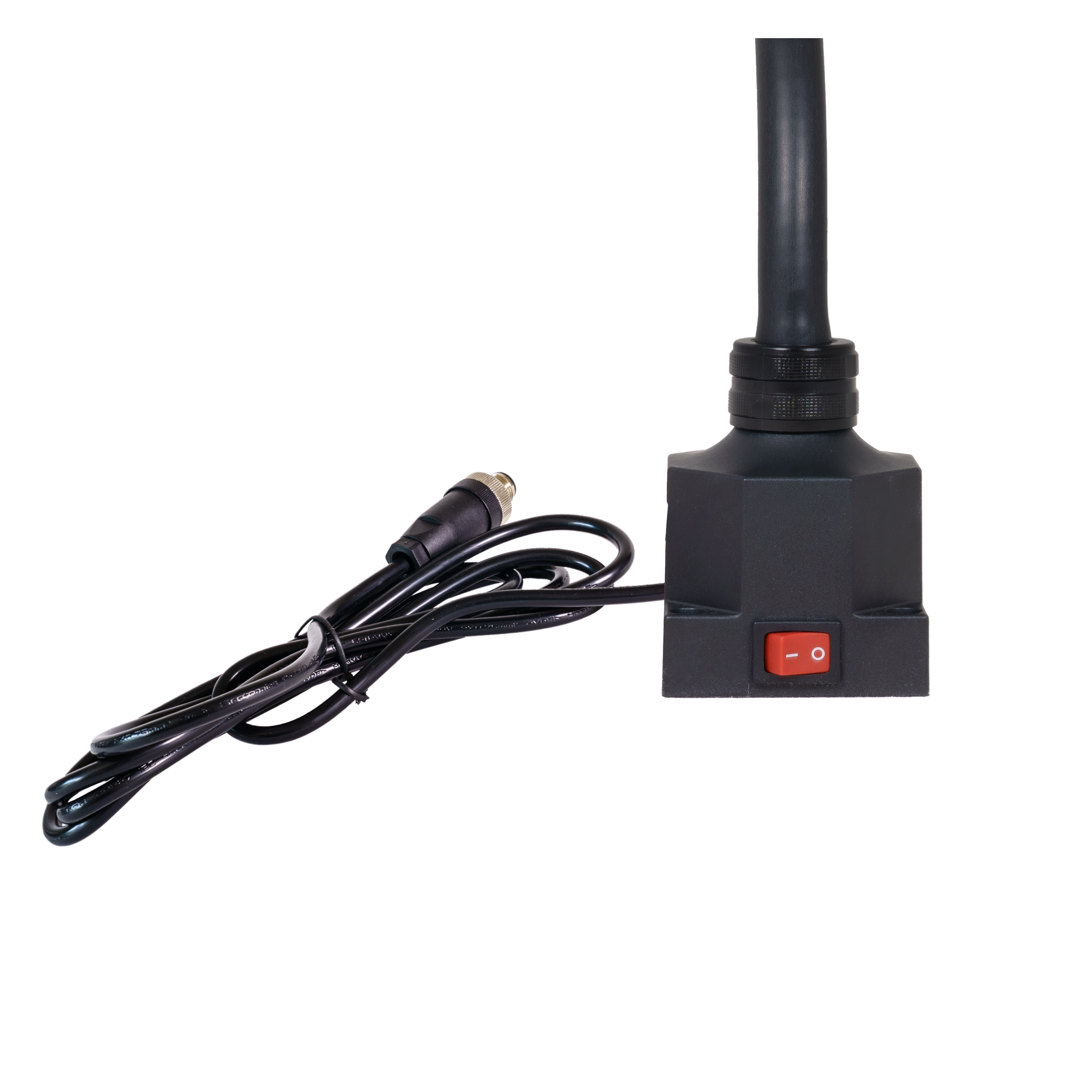

Sunnex CL-LED 35120 socle et connecteur M12
Lampe LED d'établi Sunnex CL-LED 11 W bras 500 mm, référence 35100
Sunnex CL-LED 35100 tête linéaire avec diffuseur encastré
Sunnex CL-LED 35100 socle et connecteur M12
Lampe LED d'établi Sunnex CL-LED 11 W bras 700 mm, référence 35120
Sunnex CL-LED 35120 tête linéaire vue rapprochée
Sunnex CL-LED 35120 socle et connecteur M12

Workbench Light CL-LED Sunnex

CHF 205.00
CHF 205.00
excl. VAT
SKU: 35100

Supplier : Sunnex

Brand : Sunnex

On order – delivery in 5–7 business days

Reply within 48 business hours

Product information

Description

Workbench light with a 182 mm linear head and a built-in recessed diffuser. It produces a flat, even light pattern across the whole workstation, with no hot spot. The recessed glass removes direct glare and strongly reduces reflections on polished steel, brass and glass.

1000 Lm and CRI 92 at 4000 K, a combination that proves itself in watchmaking, jewellery and quality control. Two arm lengths depending on the depth of the bench.

Technical specifications

Supply voltage24 to 36 V AC/DC
Power consumption11 W
Light output1000 Lm
Illuminance3600 Lx at 500 mm
Colour temperature4000 K
Colour rendering indexCRI 92
Arm length500 or 700 mm
Lamp head dimensions182 x 71 x 25 mm
IP ratingIP20
Protection classIII
ConnectorM12 male 4-pin, A-code
Connection cable1.9 m H05VV-F
Technical lifespan> 50 000 h
ColourBlack
Weight1.2 kg (500 mm) to 1.4 kg (700 mm)

Power supply. Direct connection to the machine 24 V. Mains adapter 230 V part no. 33920 optional.

Compatible mounts. Magnetic base Ø110 mm (12010), C-clamp (14020), wall mount (14030), table base (14015). Replacement frosted glass part no. 35005.

Documentation
Download documentation (PDF)
Shipping, customs and returns

Where your order ships from. All our shipments leave Switzerland, from our warehouse in Val Terbi. International orders are consolidated at our premises, then sent as a single parcel.

Carrier. UPS worldwide, Swiss Post for deliveries within Switzerland. A tracking number is sent to you as soon as the parcel leaves.

Lead time. The dispatch time for this item is shown higher up on this page. Transit time is added to it and depends on the destination.

Customs and import taxes. Our prices are shown excluding VAT. For deliveries outside Switzerland, customs duties and import taxes are not included: they are collected by the carrier on delivery and remain payable by the recipient.

Returns. Right of return within 30 days. The terms are set out in our refund policy.

An oversized part or a special shipment? Request a quote and we will reply within 48 business hours.
