MAGNESCALE - GB-ER - PRECISION RULER FOR DISPLACEMENT MEASUREMENT - 97928518
MAGNESCALE - GB-ER - PRECISION RULER FOR DISPLACEMENT MEASUREMENT - 97928518

MAGNESCALE - GB-ER - PRECISION RULER FOR DISPLACEMENT MEASUREMENT - 97928518

CHF 723.00
CHF 723.00
excl. VAT
SKU: 97928518

Supplier : Heidi | Shop

Brand : Magnescale

In stock – ships within 2 to 3 days

Reply within 48 business hours

Product information

Description

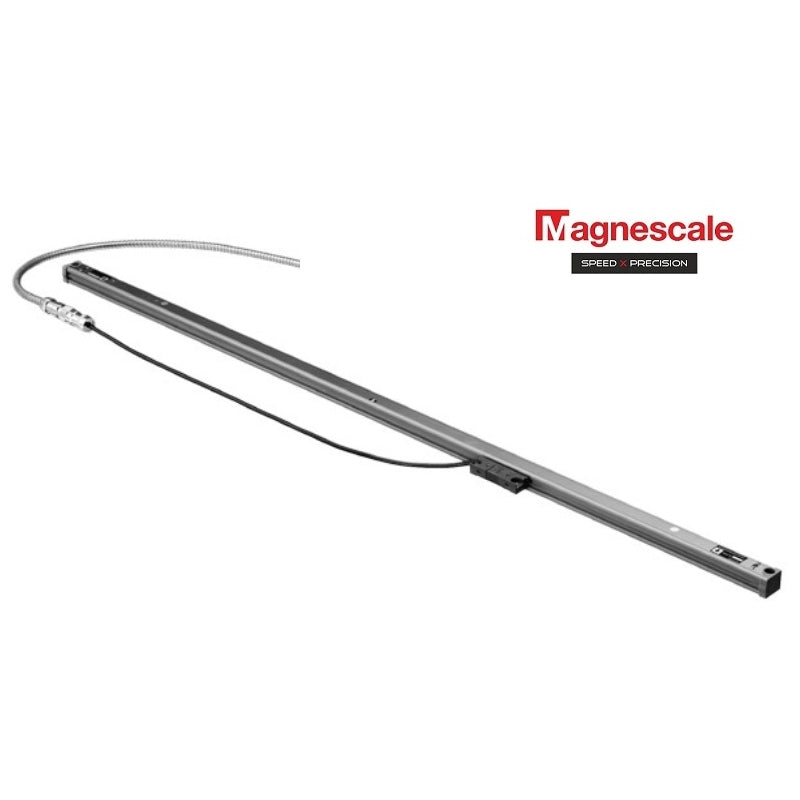

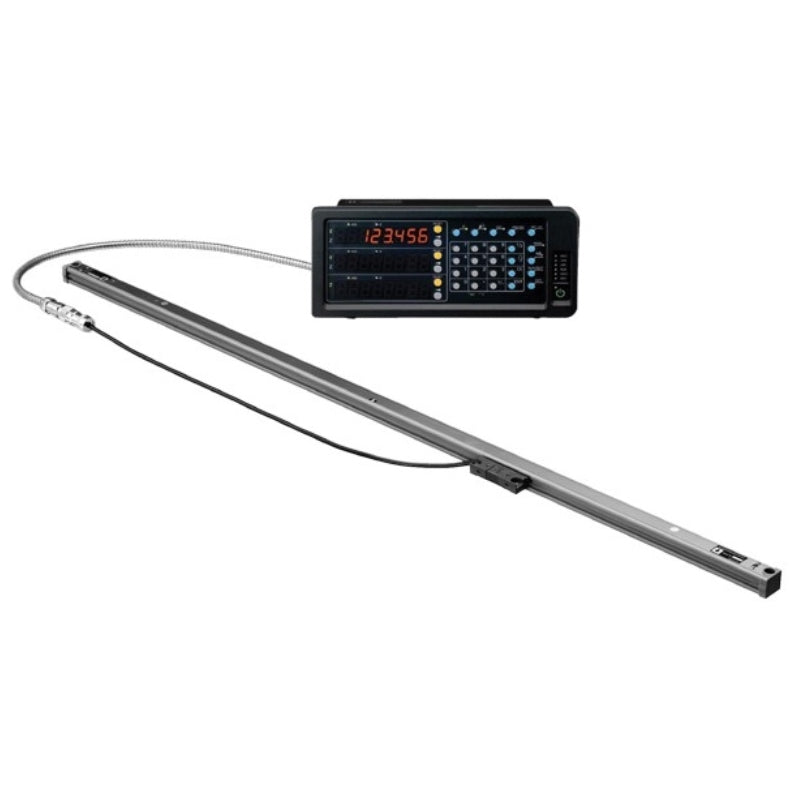

Magnescale GB-ER Precision Ruler – Series 97928518

Magnescale's GB-ER displacement scale offers ultra-fine measurement with 0.5 µm resolution and ± 5 µm accuracy. It is resistant to oil, dust, shock, and vibration, making it easy to integrate into your industrial systems. The included 3 m shielded cable (CH04-03C) ensures reliable transmission.

  • Resolution : 0.5 µm
  • Accuracy at 20°C : ± 5 µm
  • Max. speed : up to 60 m/min
  • Operating temperature : 0°C – 40°C
  • Temp. storage : –10°C – 50°C
  • Protection index : IP54
  • Cable included : 3m shielded CH04-03C
Article Ref. Ability Total length Price (CHF)
97928518 50 mm 154 mm 701.00
97928519 100 mm 204 mm 701.00
97928520 150 mm 254 mm 701.00
97928521 200 mm 304 mm 701.00
97928522 250 mm 370 mm 701.00
97928523 300 mm 420 mm 701.00
97928524 350 mm 470 mm 701.00
97928525 400 mm 520 mm 779.00
97928526 450 mm 570 mm 840.00
97928527 500 mm 620 mm 903.00
97928528 550 mm 670 mm 968.00
97928529 600 mm 720 mm 1,031.00
97928530 650 mm 770 mm 1,095.00
97928531 750 mm 870 mm 1,225.00
97928532 850 mm 970 mm 1,365.00
97928533 950 mm 1,070 mm 1,527.00
97928534 1,050 mm 1,170 mm 1,666.00
97928535 1,250 mm 1,370 mm 1,927.00
97928536 1,400 mm 1,520 mm 2,149.00
97928537 1,600 mm 1,720 mm 2,400.00
97928538 1,850 mm 1,970 mm 2,760.00
97928539 2,050 mm 2,170 mm 3,110.00
97928540 2,200 mm 2,320 mm 3,373.00

Models available in the drop-down menu above.
