Magnescale - LH71 / LH71A Digital Display 1–3 Axes – 97900450
Magnescale - LH71 / LH71A Digital Display 1–3 Axes – 97900450

Magnescale - LH71 / LH71A Digital Display 1–3 Axes – 97900450

CHF 1,024.00
CHF 1,024.00
excl. VAT
SKU: 97900450

Supplier : Heidi | Shop

Brand : Magnescale

In stock – ships within 2 to 3 days

Reply within 48 business hours

Product information

Description

Magnescale - LH71 / LH71A Digital Display 1–3 Axes – 97900450

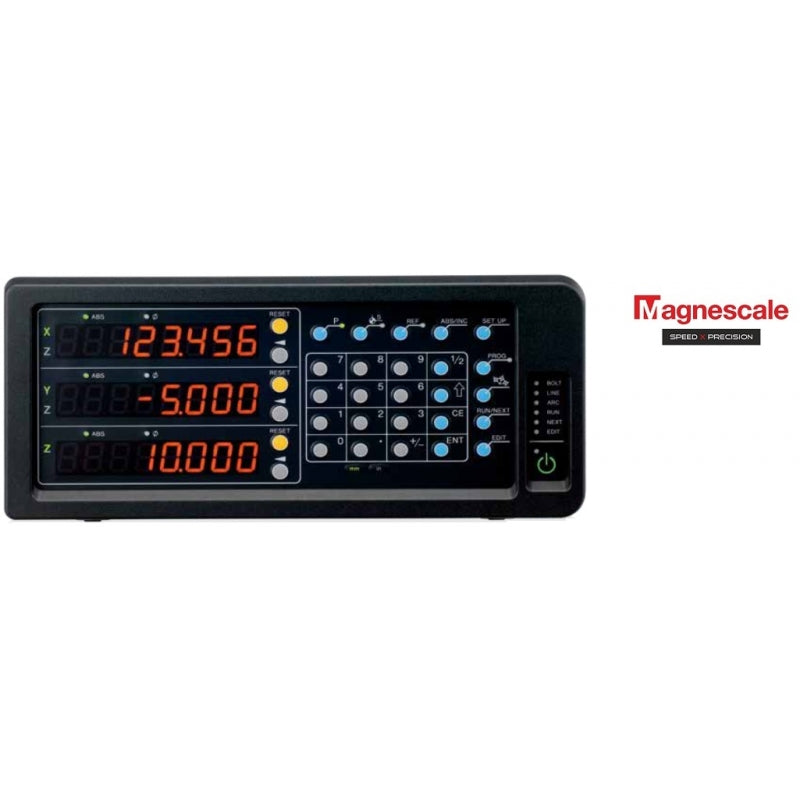

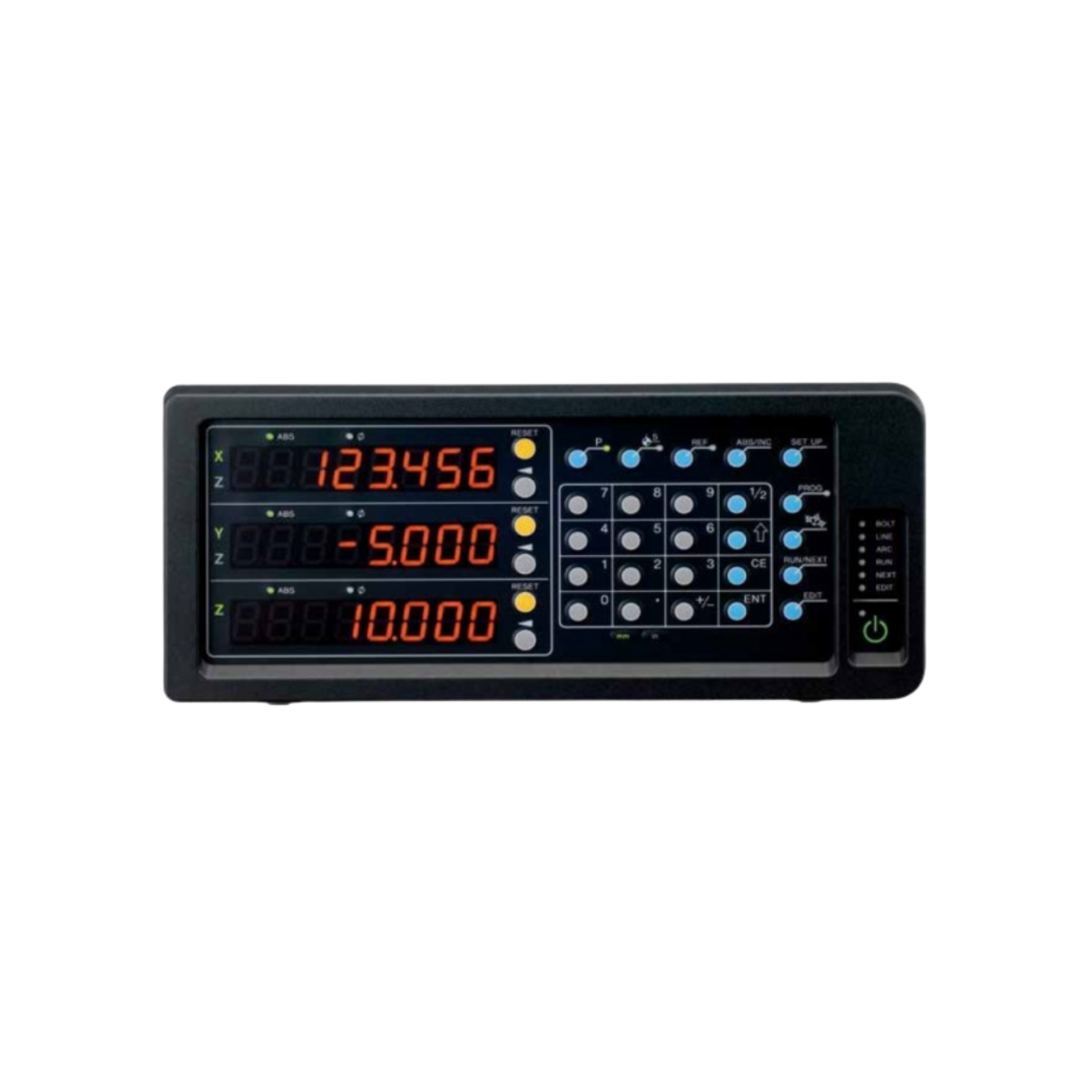

The Magnescale LH71 multifunction digital readout, with touchscreen option LH71A, is designed for cost-effective retrofit on manual lathes, mills, drills and grinders. Easy-to-use yet feature-rich for precision machining.

  • Axes: 1, 2 or 3 (models LH71-1 / LH71-2 / LH71-3)
  • Display: 7-digit orange, floating minus sign
  • Resolution: 0.1 / 0.5 / 1 / 5 / 10 µm
  • Input: TTL line driver & RS-422
  • Compatible: GB-ER, SJ700A, SL110/SL130 scales
  • Power: DC 12 V via PSC23 adapter (100–240 VAC)
  • Functions: parameter storage, multi-preset, circle drilling calculation, tool programming, diameter & angle display
  • LH71A: built-in touch sensor
  • Weight: 1.5 kg
Item no.ModelAxesPrice (CHF)
97900450LH71-11 axis1,024.00
97900451LH71-22 axes1,132.00
97900542LH71-33 axes1,295.00
97938751LH71-3T013 axes + touch1,393.00

Accessories:
PSC23 power adapter – CHF 64.00
GB-ER / SJ700A / SL110 / SL130 scales – from CHF 184.00

Specifications

Main specifications

Technical data sheet
Datasheet_LH70_71.pdf?v=17040484851305643530
