MAGNESCALE - SJ700A - PRECISION RULER FOR DISPLACEMENT MEASUREMENT - 97928710

MAGNESCALE - SJ700A - PRECISION RULER FOR DISPLACEMENT MEASUREMENT - 97928710

CHF 549.00
CHF 549.00
excl. VAT
SKU: 97928710

Supplier : Heidi | Shop

Brand : Magnescale

In stock – ships within 2 to 3 days

Reply within 48 business hours

Product information

Description

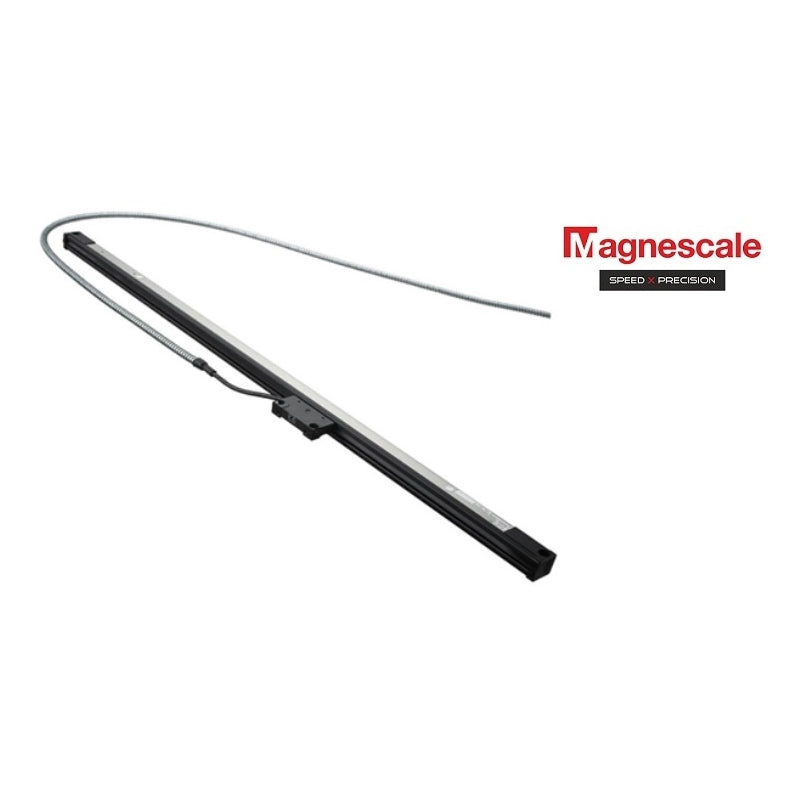

Magnescale SJ700A Precision Scale – Series 97928710

Magnescale's SJ700A displacement scale combines robustness with measurement precision. Impervious to oil, dust, shocks, and vibrations, it easily integrates into your industrial applications for ultra-precise readings.

  • Resolution: 0.5 µm
  • Accuracy at 20°C: ± 10 µm (± 15 µm for 1,400 mm and 1,600 mm capacities)
  • Max. speed: up to 60 m/min
  • Operating temp.: 0°C – 40°C
  • Storage temp.: –10°C – 50°C
  • Protection rating: IP54
  • Connection cable: 3 m included (5 m for 950–1,600 mm capacities)
Item Ref. Measuring capacity Overall length
97928710 150 mm 270 mm
97928711 250 mm 370 mm
97928712 350 mm 470 mm
97928713 400 mm 520 mm
97928714 500 mm 620 mm
97928715 650 mm 770 mm
97928716 800 mm 920 mm
97928717 950 mm 1,070 mm
97928718 1,050 mm 1,170 mm
97928719 1,250 mm 1,370 mm
97928720 1,400 mm 1,520 mm
97928721 1,600 mm 1,720 mm



Specifications

Main specifications

Technical data sheet
Datasheet_SJ700A.pdf?v=8482466874826187212
