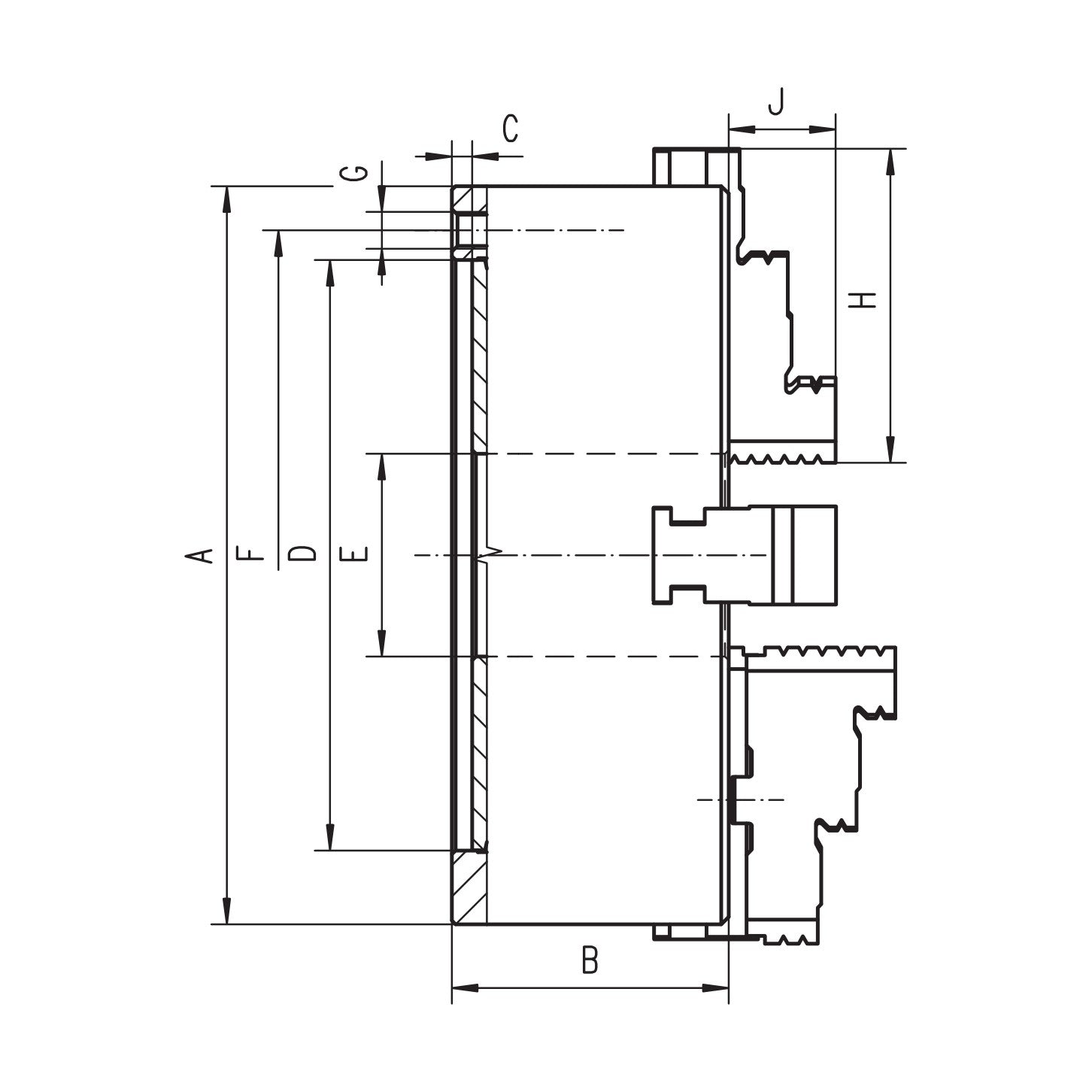

Mandrin 4 mors fonte – DIN 55026 – Niederhauser – schéma coté

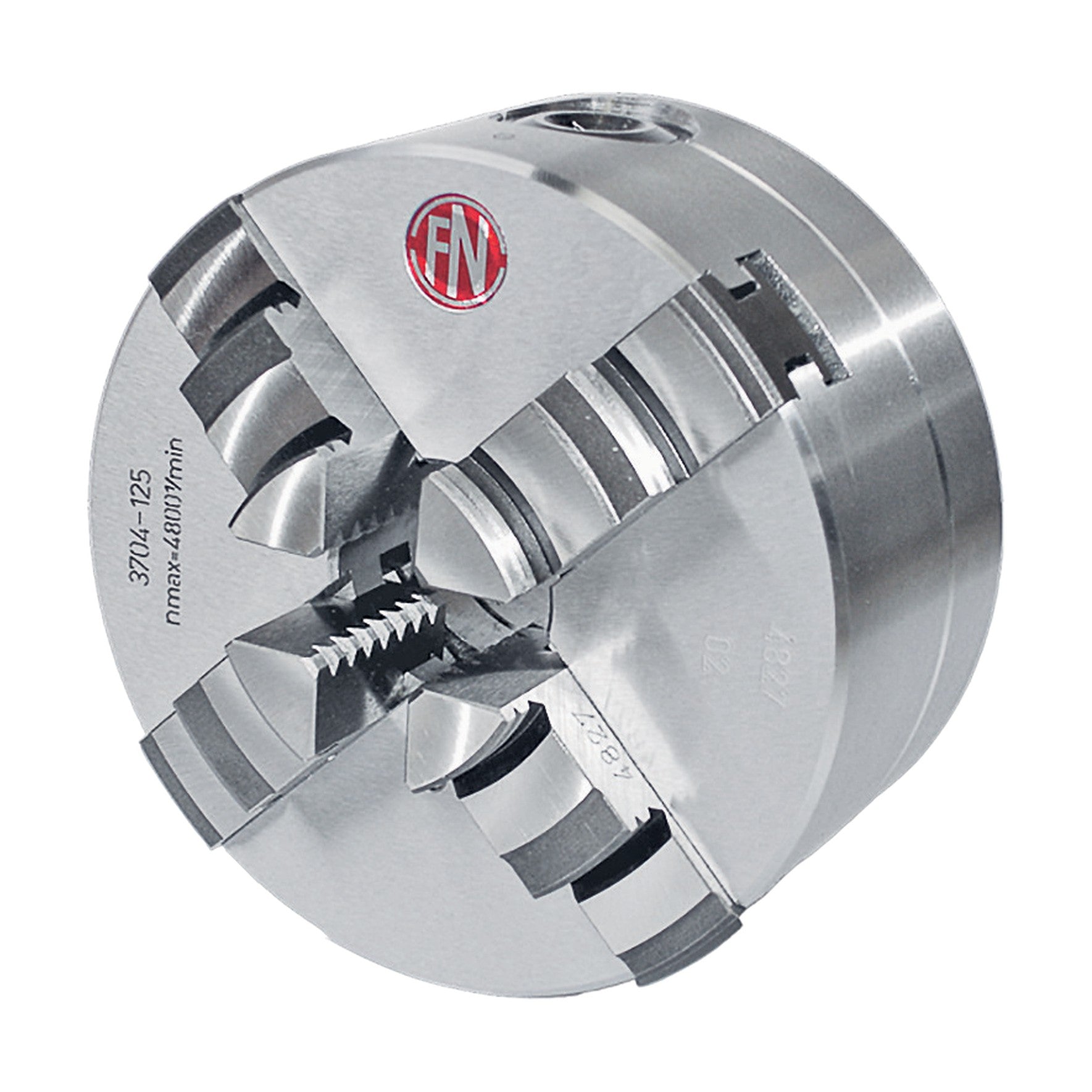

Mandrin 4 mors fonte – DIN 55026 – Niederhauser
Mandrin 4 mors fonte – DIN 55026 – Niederhauser – schéma coté

4-jaw chuck cast iron – DIN 55026

CHF 1,846.00
CHF 1,846.00
excl. VAT
SKU: 102-604

Supplier : Heidi | Shop

Brand : Niederhauser

On order – delivery in 10–15 business days

Reply within 48 business hours

Product information

Description

Precision 4-jaw scroll chuck with cast iron body and DIN 55026 mounting. Fast, reliable concentric clamping, from ø 200 to ø 500 mm.

Good to know: Mounts directly on a DIN 55026 (ASA type A) spindle nose – no backplate needed. Choose the taper size of your spindle.

  • Mounting: DIN 55026 / 55021, front mounting
  • Body: cast iron, with central lubrication
  • Clamping: self-centring via scroll and bevel pinions
  • Durability: hardened scroll and jaws, flanks ground on both sides
  • Installation: with intermediate flange included; mounting machined directly into the body on request, longer lead time

Standard accessories: 1 set of drilling jaws, 1 set of turning jaws, 1 chuck key, 1 set of fixing screws.

Chuck ø Taper size Article code D F G
ø 200 mm Taper 4 102-604 63.525 mm 82.55 mm M 10
ø 200 mm Taper 5 102-605 82.575 mm 104.8 mm M 10
ø 200 mm Taper 6 102-606 106.39 mm 133.4 mm M 12
ø 250 mm Taper 5 102-705 82.575 mm 104.8 mm M 10
ø 250 mm Taper 6 102-706 106.39 mm 133.4 mm M 12
ø 250 mm Taper 8 102-708 139.735 mm 171.4 mm M 16
ø 315 mm Taper 6 102-806 106.39 mm 133.4 mm M 12
ø 315 mm Taper 8 102-808 139.735 mm 171.4 mm M 16
ø 400 mm Taper 6 102-906 106.39 mm 133.4 mm M 12
ø 400 mm Taper 8 102-908 139.735 mm 171.4 mm M 16
ø 400 mm Taper 11 102-901 196.885 mm 235 mm M 20
ø 500 mm Taper 8 102-058 139.735 mm 171.4 mm M 16
ø 500 mm Taper 11 102-051 196.885 mm 235 mm M 20

Other sizes on request. Produced by Niederhauser.
